Ecoblade Slot Uplighter
Wall Mounted Uplighter
Cat. No: S18542
An exceptionally high performance range of top quality wall mounted uplighters, specifically designed around the latest high efficiency Tridonic LLE modules, offering superb performance of up to 154lm/W. Available in a range of styles including uplight only or up/downlight. Also available without the illuminated slot (see Sovereign Ecoblade).
Main housing produced from extruded aluminium with integral passive thermal management. All versions supplied with Nano/Microprism diffuser for optimum light transmission and visual comfort. Finished in textured polyester powder coat with standard finishes in white, black and silver, with other BS/RAL colours available to order. Bespoke lengths can be produced to client specification.
NOTE: Some dimmable versions may require longer housing to accommodate driver dimensions.
TECHNICAL INFORMATION
| APPLICATION: | Interior Wall |
| LAMP: | Tridonic LLE LED module |
| LAMP LIFE | 50,000 hours |
| CRI: | >80 |
| VOLTAGE | 240V |
| PROTECTION CLASS: | Class 1 |
| PROTECTION RATING: | IP40 |
| DRIVER: | Integrated high-efficiency |
| HOUSING MATERIAL: | Extruded Aluminium |
| MATERIAL FINISH | Textured Powder Coated |
| WEIGHT: | 300mm - 2.5kg | 400mm - 2.9kg | 600mm - 3.7kg | 900mm - 5.4kg |
| LED WARRANTY | 5 years |
LIGHT OUTPUT DETAILS
| Uplighter | ||||
|---|---|---|---|---|
| Length | Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 300mm | 3000K | 13W | 2030lm | 156lm/W |
| 300mm | 4000K | 13W | 2120lm | 163lm/W |
| 400mm | 3000K | 13W | 2030lm | 156lm/W |
| 400mm | 4000K | 13W | 2120lm | 163lm/W |
| 600mm | 3000K | 26W | 4050lm | 156lm/W |
| 600mm | 4000K | 26W | 4240lm | 163lm/W |
| 900mm | 3000K | 39W | 6080lm | 156lm/W |
| 900mm | 4000K | 39W | 6360lm | 163lm/W |
| Up/Downlight | ||||
|---|---|---|---|---|
| Length | Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 400mm | 3000K | 20W | 3043lm | 152lm/W |
| 400mm | 4000K | 20W | 3180lm | 159lm/W |
| 600mm | 3000K | 33W | 5063lm | 153lm/W |
| 600mm | 4000K | 33W | 5300lm | 161lm/W |
| 900mm | 3000K | 52W | 8105lm | 156lm/W |
| 900mm | 4000K | 52W | 8479lm | 163lm/W |

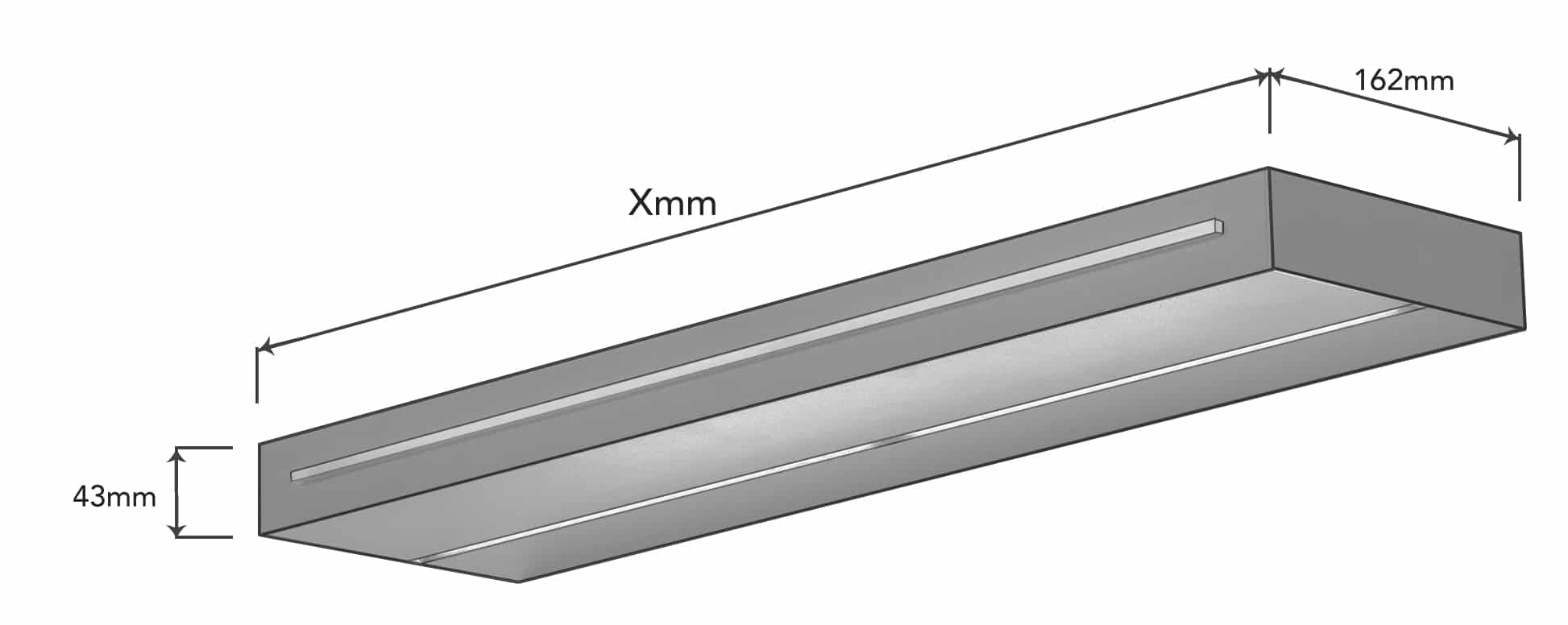

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| BODY COLOUR | White / Black / Silver / other BS/RAL |
| COL. TEMP | Warm White (3000K) / Neutral White (4000K) |
| POWER SUPPLY | Non-Dimming / Dimmable options |
| DRIVER | Emergency / Non-Emergency |
