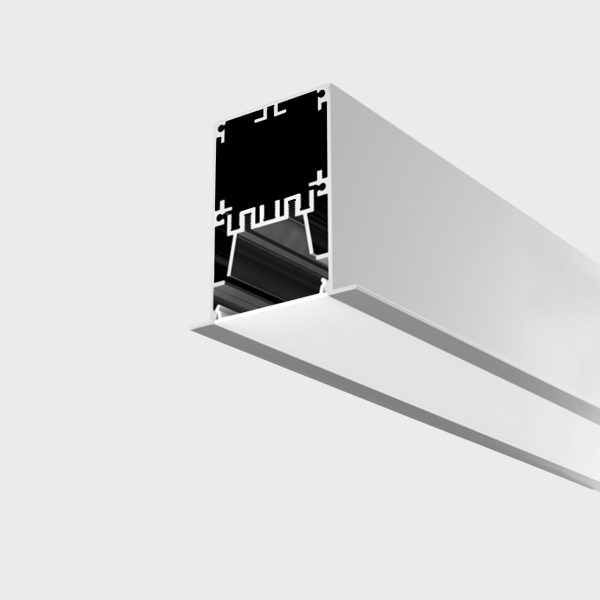

Broadline Recessed 1424mm
Linear LED System
Light Source
Tridonic LLE LED
Colour Temperature
3000K / 4000K
Mounting
Recessed
Application
Interior linear lighting
Housing
Extruded Aluminium
1 / 5
Overview
Cat. No: S18623R
A beautifully elegant linear profile system designed around the latest high performance Tridonic LLE LED modules. Produced in high quality aluminium extruded profile, the Sovereign Broadline Recessed Linear system can be mounted individually or joined via plug & socket connection to provide “continuous” runs as required. A choice of lengths available, including bespoke individual lengths of up to 2mts. Prismatic diffuser available as an option.
Downloads
| OVERVIEW PDF | > |
| TECHNICAL DRAWING | > |
| LDT FILES | > |

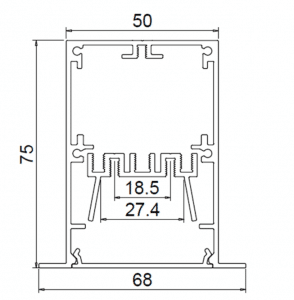

Dimensions
Technical Details
| Lamp: | Tridonic LLE LED Module |
| Lamp: | 50,000 hours |
| CRI | >80 |
| Voltage: | 240V |
| Class: | Class 1 |
| Driver: | Integrated high efficiency |
| Cooling: | Passive heatsink |
| IP Rating | IP40 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Opal diffuser |
| Dimensions | L584mm x H75mm x D50mm |
| Weight | 7.5kg |
| Mounting | Recessed |
Light Output Details
| Length | Col. Temp | Wattage | Lumen Output | Sys efficacy |
| 584mm | 3000K | 15W | 2350lm | 161lm/W |
| 584mm | 4000K | 15W | 2470lm | 169lm/W |
| 1144mm | 3000K | 29W | 4700lm | 161lm/W |
| 1144mm | 4000K | 29W | 4940lm | 169lm/W |
| 1424mm | 3000K | 37W | 5879lm | 161lm/W |
| 1424mm | 4000K | 37W | 6170lm | 169lm/W |
| 1704mm | 3000K | 44W | 7045lm | 161lm/W |
| 1704mm | 4000K | 44W | 7410lm | 169lm/W |
Build Your Product
Range
Housing Colour
Col Temp
Emergency
Power Supply
Product code:
Product details:
