Drum Downlight

Surface Mounted Downlight

Cat. No: S98609

A high performance range of surface mounted drum luminaires incorporating the latest CREE LED modules with high efficiency driver for optimum performance and longevity. Offering impressive lumen packages up to 4120lm and a choice of Warm White or Cool White LED’s. Die cast aluminium main housing with high purity aluminium facetted reflector system for added aesthetic appeal.

15W – 40W versions are supplied complete with integral high efficiency driver as standard, with dimming & Remote Emergency options also available. Smaller 10W and 12W versions supplied with remote driver.

Standard finish white, with other BS/RAL colours to order.

TECHNICAL INFORMATION

Range NameSovereign Drum Surface Downlight
Cat No.S98609
ApplicationInterior ceiling
LampCREE LED Module
Lamp life50,000 hours
CRIRa>80
Voltage240V
Protection ClassClass 1
Protection TypeIP40
DriverHigh-efficiency
Housing materialHigh Purity Aluminium
Material finishPowder Coated
WeightSize 0 - 0.4kg | Size 1 - 0.83kg | Size 2 - 1.03kg | Size 3 - 2.36kg
DiffuserClear Glass
LED Warranty5 years

DOWNLOADS

LIGHT OUTPUT DETAILS

Size 0 (ø80mm x H90mm)
Col. TempWattageLuminous FluxLED Efficacy
3000K10W820lm82lm/W
4000K10W880lm88lm/W

Size 1 (ø105mm x H141mm)
Col. TempWattageLuminous FluxLED Efficacy
3000K12W1380lm115lm/W
4000K12W1380lm115lm/W

Size 2 (ø120mm x H151mm)
Col. TempWattageLuminous FluxLED Efficacy
3000K15W1520lm103lm/W
4000K15W1520lm103lm/W

Size 3 (ø190mm x H178mm)
Col. TempWattageLuminous FluxLED Efficacy
3000K24W2260lm94lm/W
4000K24W2420lm101lm/W
3000K40W3840lm96lm/W
4000K40W4120lm103lm/W

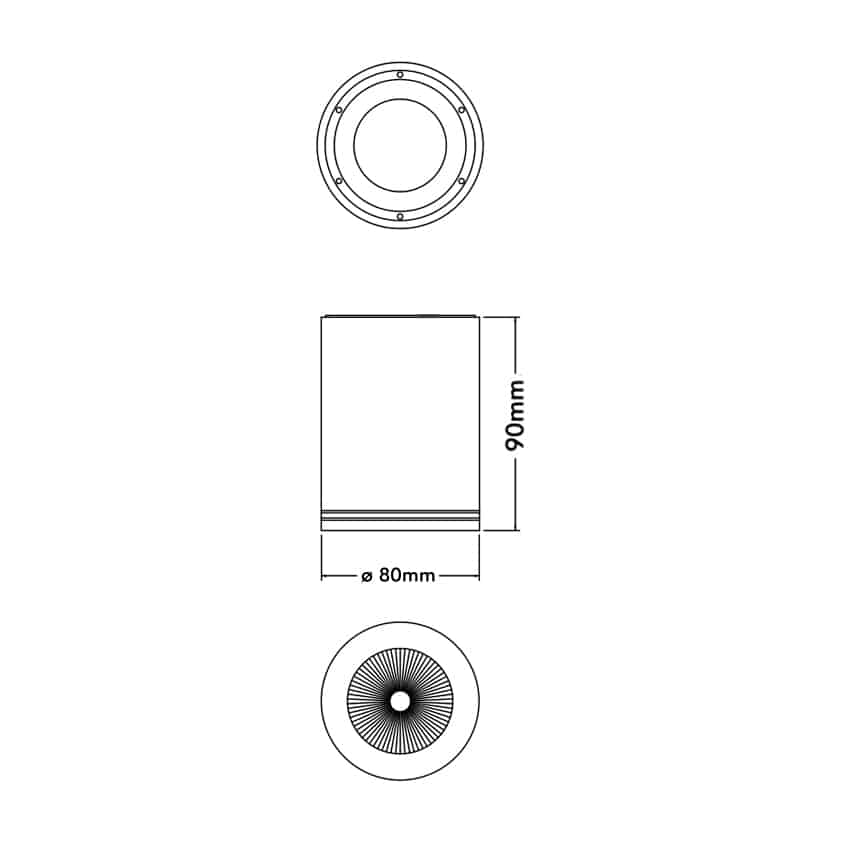

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Size:Size 1 (W80mm x D80mm x H90mm) Size 2 (W100mm x D100mm x H120mm)
Wattage:Size 1: 10W Size 2: 12W / 15W
Housing colourWhite / Black / Silver / other BS/RAL
Col. TempWarm White (3000K) / Neutral White (4000K)
DriverStandard / Emergency options
Power SupplyNon Dimming / Dimmable options

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Beam Angle

Housing Colour

Col. Temp & Output

Emergency (remote)

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
