Grace
Ground Recessed
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Exterior Ground Recessed
Application
Facades, green areas and urban spaces
Housing
Stainless Steel
1 / 4
Overview
Grace is a compact and elegant walk-over solution for grazing light in pedestrian areas and pathways. Grace has continuous radial emission. The excellent mechanical strength of the silicone used for the lens is able to support the upper part of the body without the need for metal mounts, which would have created shadows on the illuminated surface. The Ultra-Clear Liquid Silicone Rubber lens offers high optical control. The luminous flux is directed downwards in order to prevent unwanted emissions. The distribution is even and comfortable.
Two different light emissions are available: 360° circular and 180° semicircular. Both versions retain the same appearance and the difference is not noticeable when the product is off.
The elegance and clean lines of the product are reinforced by the absence of unsightly screws or other joints.
For more info, please visit Cariboni
Downloads
| Product Overview (PDF) | > |

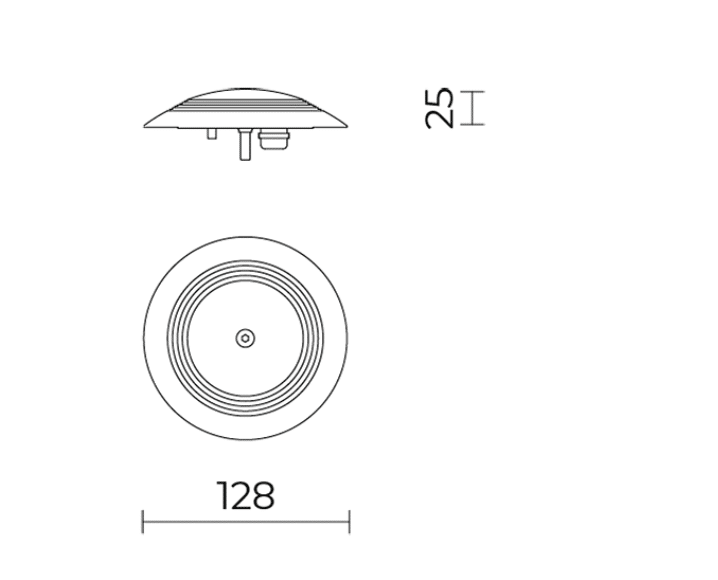

Dimensions
Technical Details
| Lamp: | LED |
| Source Lifetime: | >60.000h @Ta25°C L80B10 |
| Wattage: | 2W / 5W |
| Protection type: | IP67 |
| Protection Class: | Class III |
| Impact Resistance: | IK10 |
| CRI | >70 |
Housing Specifications
| Housing Material | Die-cast aluminium primary alloy UNI EN AB 44300 |
| Finish | Micro-shot peened stainless steel AISI 316L |
| Optics | TIR (Total Internal Reüection) made from Ultra- Clear LSR (Liquid Silicone Rubber) |
| Dimensions | Ø128mm x H25mm |
| Weight | 1KG |
| Mounting | Exterior Ground Recessed |
Build Your Product
Product code:
Product details:
