Kai Small
Floodlight
Light Source
LED
Colour Temperature
2200K / 3000K / 4000K
Mounting
Pole Top (Ø 46 - 60 - 76 mm)
Application
Street / Path lighting
Housing
Die-cast aluminium
1 / 2
Overview
Range of highly performing street lighting both in terms of quality of light distribution and energy efficiency. Kai is also available in 2200K, a very warm white, similar to old sodium lamps but with a high colour rendering index. The warm light makes urban spaces more welcoming and is ideal for lighting urban centres.
Available in three sizes, Kai can be fastened to different arms and posts for use in both urban and suburban vehicular routes. The same anchoring device can be used for both horizontal and vertical fastening. The product can be repositioned without the need to open it. Kai can be fastened to Ø76mm posts, or to Ø60mm and Ø46mm posts and arms with reducers. The shape of the reducer prevents insects from nesting inside the device.
There is no need to remove the anchoring device to vary the product tilt angle, it is sufficient to loosen the two external screws fastening it to the body and adjust the angle. For post-top installation, vertical fastening provides a tilt angle from 0° to +20° in 5° steps. For installation on an arm, horizontal fastening provides a tilt angle from 0° to -20° in 5° steps.
For more info, please visit Cariboni
Downloads
| Product Overview (PDF) | > |

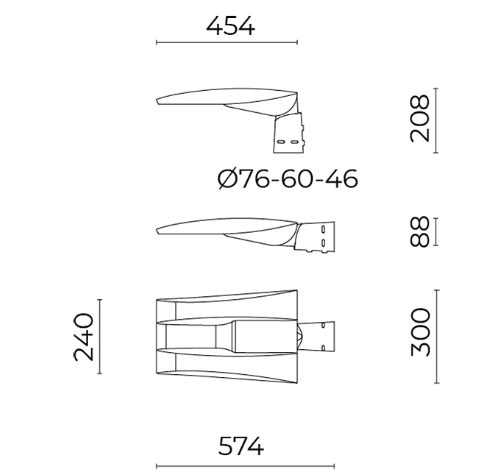

Dimensions
Technical Details
| Lamp: | LED |
| Source lifetime | >160.000h @700mA @Ta25°C TM21 L80B20 |
| Wattage: | 13.5W - 27W |
| Protection type: | IP66 |
| Protection Class: | Class II |
| Impact Resistance: | IK08 |
| CRI | >70 |
Housing Specifications
| Housing Material | Die-cast aluminium alloy UNI EN AB 47100 |
| Finish | Phospho-chromatation treated and polyester powder-coated |
| Optics | High-transparency PMMA |
| Dimensions | L574mm x W300mm |
| Weight | 6.5KG |
| Mounting | Pole Top (Ø 46 - 60 - 76 mm) |
