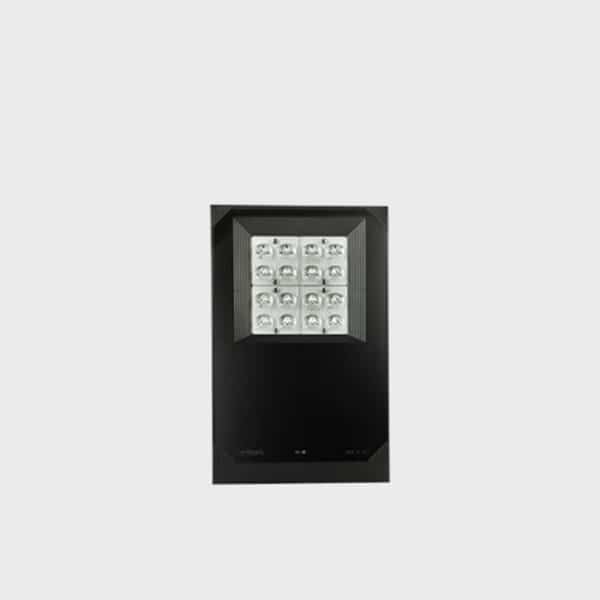

Lit 1 Flood Large
Floodlight
Light Source
LED
Colour Temperature
2200K / 2700K / 3000K / 4000K / DWL 1800-3000K / DWL 1800-4000K
Mounting
Surface mounting
Application
Architectural Floodlight
Housing
Die-cast aluminium
1 / 3
Overview
LIT is a complete flexible system with a clean, modern and elegant shape for lighting empty and full urban locations. Lit Flood 1 can be equipped with a base for fastening to any surface or with a joint for ground installation or connection to arms and posts with a single or double configuration.
LIT ensures proper thermal management without the use of visible heat-sink fins.
Lit Flood 1 has a fastening base that can be rotated ±30° and tilted -90° +35° for precise orientation. The pointing and locking system is continuously adjustable.
LIT can be connected to the mains power without the need to open it. In fact, the product comes with a built-in cable and plug-socket connector for simple, quick and safe installation.
For more info, please visit Cariboni
Downloads
| Product Overview (PDF) | > |

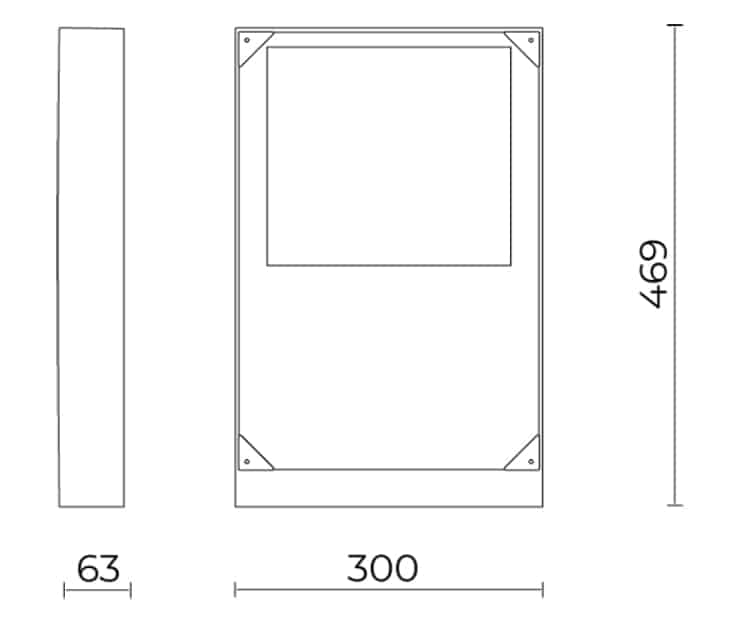

Dimensions
Technical Details
| Lamp: | LED |
| Wattage: | 61W - 116W |
| Optical group life: | 100.000h @Ta25°C L80B10 |
| Protection type: | IP66 |
| Protection Class: | Class II (Class I on request) |
| Impact Resistance: | IK10 |
| CRI | >80 |
| Beam: | Narrow street / Medium street / Wide street / Asymmetric / Cycle path / Pedestrian crossing / BLOS white / BLOS black |
Housing Specifications
| Housing Material | Die-cast aluminium alloy UNI EN AB 47100 |
| Finish | Phospho-chromatation treated and polyester powder-coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | H469mm x W300mm x D63mm |
| Weight | 8KG |
| Mounting | Surface mounting |
Light Output Details
Based on Narrow Street Beam @ 3000K
| Col Temp. | Wattage | Lumen Output |
| 3000K | 61W | 7130lm |
| 3000K | 68W | 7950lm |
| 3000K | 75W | 8640lm |
| 3000K | 84W | 10050 |
| 3000K | 92W | 10860lm |
| 3000K | 100W | 11535lm |
| 3000K | 108W | 12310lm |
| 3000K | 116W | 13065lm |
Build Your Product
Product code:
Product details:
