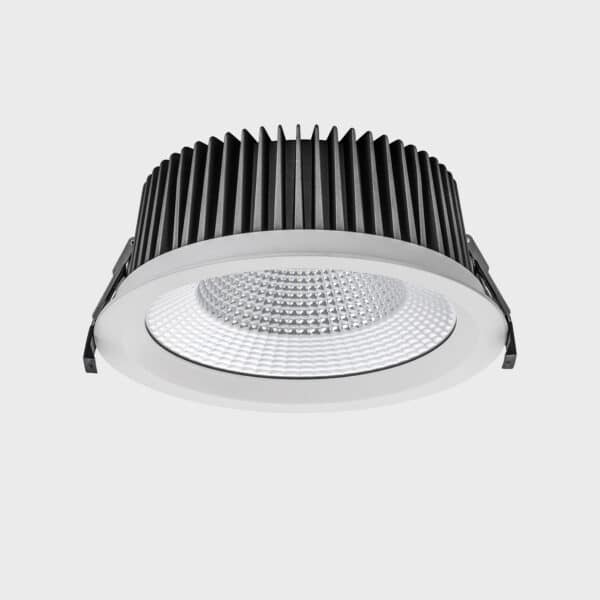

Sovereign
Maxi IP65 Fixed Ø220mm
LED Downlight
Light Source
CREE LED
Colour Temperature
3000K / 4000K
Mounting
Ceiling recessed
Application
Exterior Under Canopy
Housing
Aluminium
1 / 2
Overview
Cat. No: S18264
A newly added range of under canopy downlights, extending the Maxi range to accommodate wet environments such as bathrooms, wet rooms, and undercanopy applications
Available in a range of outputs and sizes, these high quality recessed luminaires are suitable for commercial, hospitality and retail settings.
Downloads
| TECHNICAL OVERVIEW (PDF) | > |
| SOVEREIGN DOWNLIGHT BROCHURE (PDF) | > |
| PHOTOMETRY (LDT) | > |

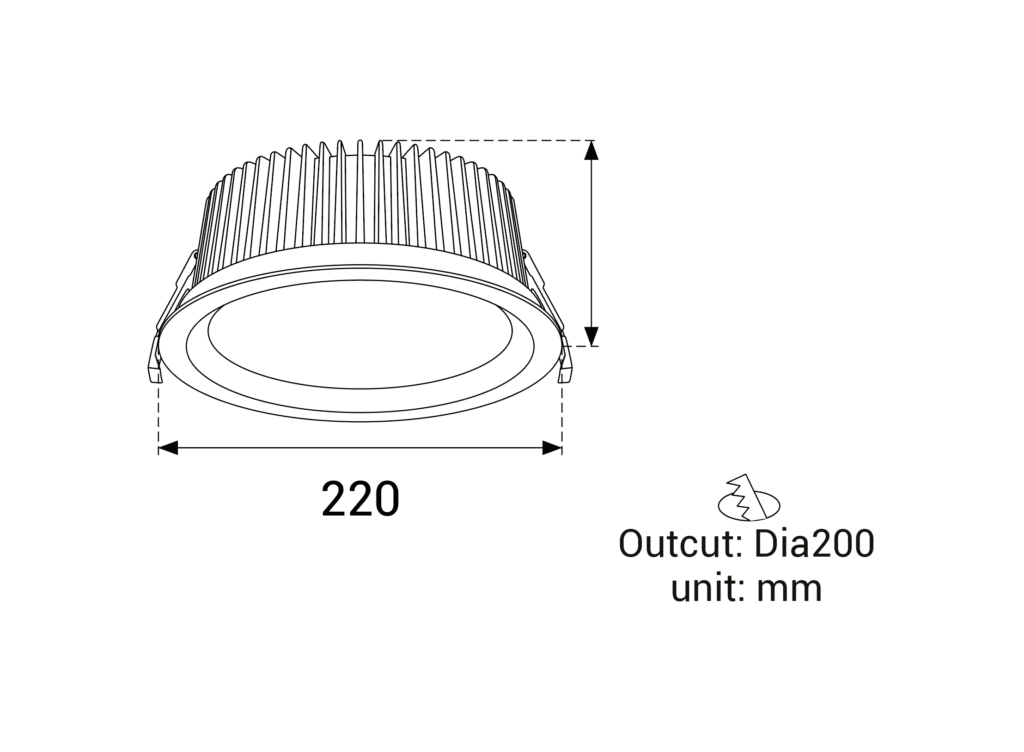

Dimensions
Technical Details
| Lamp | CREE LED |
| Lamp life | 50,000 hours |
| CRI | >80 |
| Voltage | 240V |
| Power | 45W |
| Lumen Efficacy | 100-110lm/W |
| Colour Temperature | 3000K / 4000K |
| Protection Class | Class 1 |
| IP Rating | IP65 |
| Cutout | 200mm |
| LED Warranty | 5 years |
Housing Specifications
| Housing Material | Aluminium |
| Finish | Powder Coated |
| Optics | Clear Glass |
| Dimensions | Various |
| Weight | 1.4KG |
| Mounting | Ceiling recessed |
Light Output Details
>
| Col. Temp | Wattage | Lumen Output | LED efficacy |
| 3000K | 15W | 1500lm | 100lm/W |
| 4000K | 15W | 1650lm | 110lm/W |
| 3000K | 20W | 2000lm | 100lm/W |
| 4000K | 20W | 2200lm | 110lm/W |
| 3000K | 30W | 3000lm | 100lm/W |
| 4000K | 30W | 3300lm | 110lm/W |
| 3000K | 45W | 4500lm | 100lm/W |
| 4000K | 45W | 4950lm | 110lm/W |
Build Your Product
Range
X
Housing Colour
X
X
X
COL TEMPERATURE
X
X
X
Emergency (remote)
Power Supply
Product code:
Product details:
