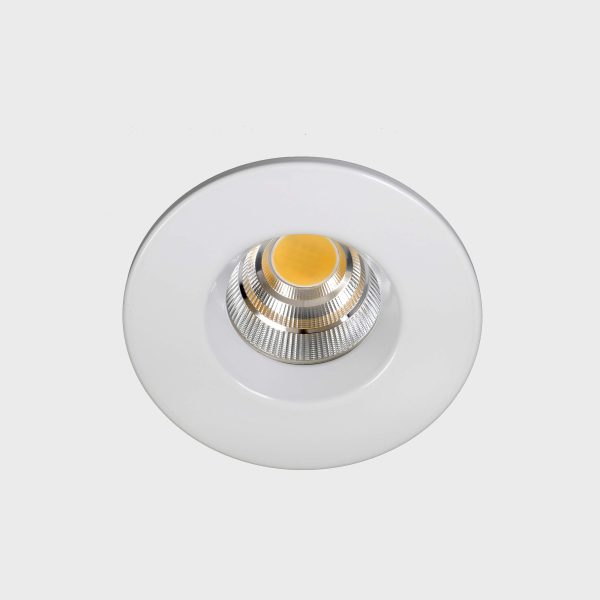

Mini Fixed Downlight

LED Downlight

Cat. No: S18153 | S18173 | S18253

A high quality miniature LED downlight designed and produced in the UK as a realistic replacement for existing MR16 Halogen units. Incorporating the latest Tridonic LES10 LED module, this is an exceptionally efficient LED, providing a genuine 130 lm/W (4000K) including driver losses.

Includes passive heat-sink technology, built-in clear lens for glare reduction, a high performance facetted reflector, and a number of customisable options.

TECHNICAL INFORMATION

Range NameSovereign Mini Fixed Downlight
Range No.S18153
ApplicationInterior ceiling
LampTridonic LES10 LED
Lamp life50,000 hours
CRI>80
Voltage240V
ClassClass 1
DriverHigh efficiency 500mA constant current
DiffuserClear acrylic
IP RatingIP40
Housing MaterialAluminium
Material FinishPowder Coated
Weight0.38kg
Cutout60-85mm
LED Warranty5 years

PRODUCT IMAGES

LIGHT OUTPUT DETAILS

Col. Temp Wattage Lumen Output LED efficacy
3000K 9.8W 1220lm 125lm/W
4000K 9.8W 1270lm 130lm/W

CUSTOMISATION OPTIONS

Style:Standard / Drop Glass / Under Canopy / Darklight
Bezel Colour:White / Black / Silver / Other BS/RAL
Beam Angle:Spot / Flood / Wide Flood
Col. Temp:3000K / 4000K
Emergency:Emergency options available
Power Supply:Dimmable options available

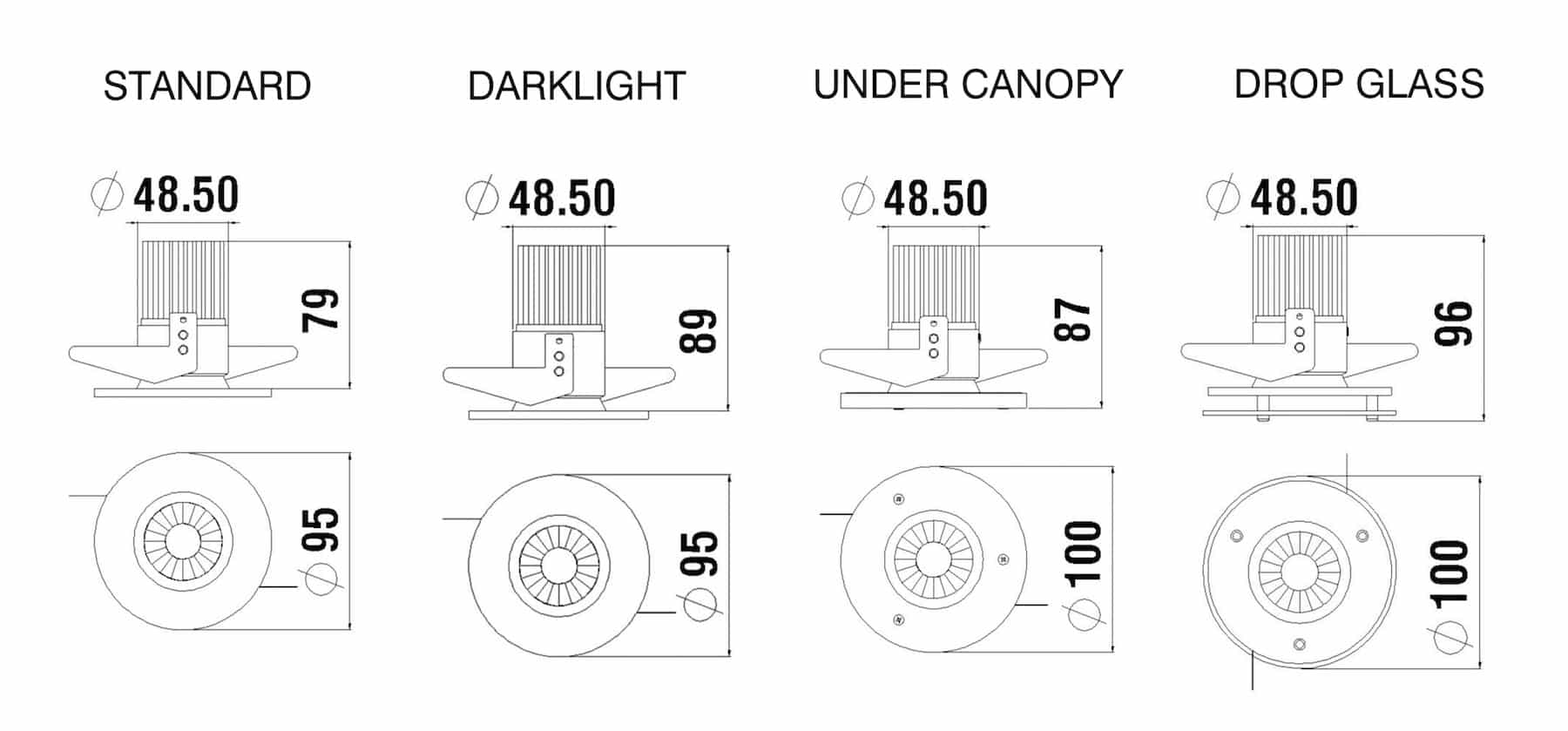

DIMENSIONS (mm)

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Insert

Beam Angle

Housing Colour

Col Temp

Emergency (remote)

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
