Sovereign

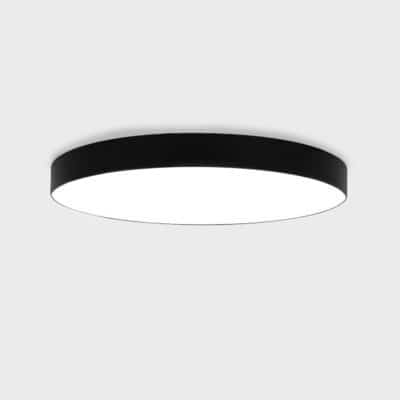

Surface Shallow Drum 600mm
Ceiling Surface LED Pendant
Light Source
Osram 2835
Colour Temperature
3000K / 4000K
Mounting
Surface mounting
Application
Interior Ceiling
Housing
Extruded Aluminium
Overview
Cat. No: S18666S
The Sovereign Surface Shallow Drum is a sleek new range of suspended downlights. Housed in extruded aluminium, these high quality luminaires are matched by their beautifully uniform emission, utilising the latest LED technology and an opal diffuser.
Available in five sizes, all versions include dimmable and emergency options, various housing colours and colour temperatures.
Downloads
| OVERVIEW (PDF) | > |
| TECHNICAL DRAWING (JPG) | > |
| Photometry (LDT) | > |
Dimensions
Technical Details
| Lamp Life: | 50,000 hours |
| Colouring Rendering: | Ra>90 |
| Wattage: | 50W |
| Voltage: | 240V |
| Protection Rating: | Class 1 |
| Driver: | Integrated high-efficiency |
| IP Rating: | IP20 |
| LED Warranty: | 5 Years |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Opal PMMA |
| Dimensions | Ø600mm x D100mm |
| Weight | 6.8KG |
| Mounting | Surface mounting |
Light Output Details
| Size | Col Temp. | Wattage | Lumen Output | LED Efficacy |
| Size 1 | 3000K | 28W | 2400lm | 86lm/W |
| Size 1 | 4000K | 28W | 2400lm | 86lm/W |
| Size 2 | 3000K | 50W | 4250lm | 85lm/W |
| Size 2 | 4000K | 50W | 4250lm | 85lm/W |
| Size 3 | 3000K | 78W | 6630lm | 85lm/W |
| Size 3 | 4000K | 78W | 6630lm | 85lm/W |
| Size 4 | 3000K | 89W | 8160lm | 92lm/W |
| Size 4 | 4000K | 89W | 8160lm | 92lm/W |
| Size 5 | 3000K | 120W | 10200lm | 85lm/W |
| Size 5 | 4000K | 120W | 10200lm | 85lm/W |
