Diomede
Zeus
Light Source
LED
Colour Temperature
2700K / 3000K / 4000K
Mounting
Ground fixed
Application
Exterior lighting
Housing
Die-cast Aluminium / Extruded Aluminium
1 / 7
Overview
Bollard for ground or solid surface installation. EN47100 die-cast aluminium made and extruded aluminium for pole, 2 sizes available (h.115mm; h.300mm) integral inox fixing plate. Powder polyester coated on treated layer to prevent corrosion, available in four standard colours. Tempered silkscreened transparent glass diffuser, mechanically fixed with silicon glue.
Downloads
| TECHNICAL DATA (PDF) | > |

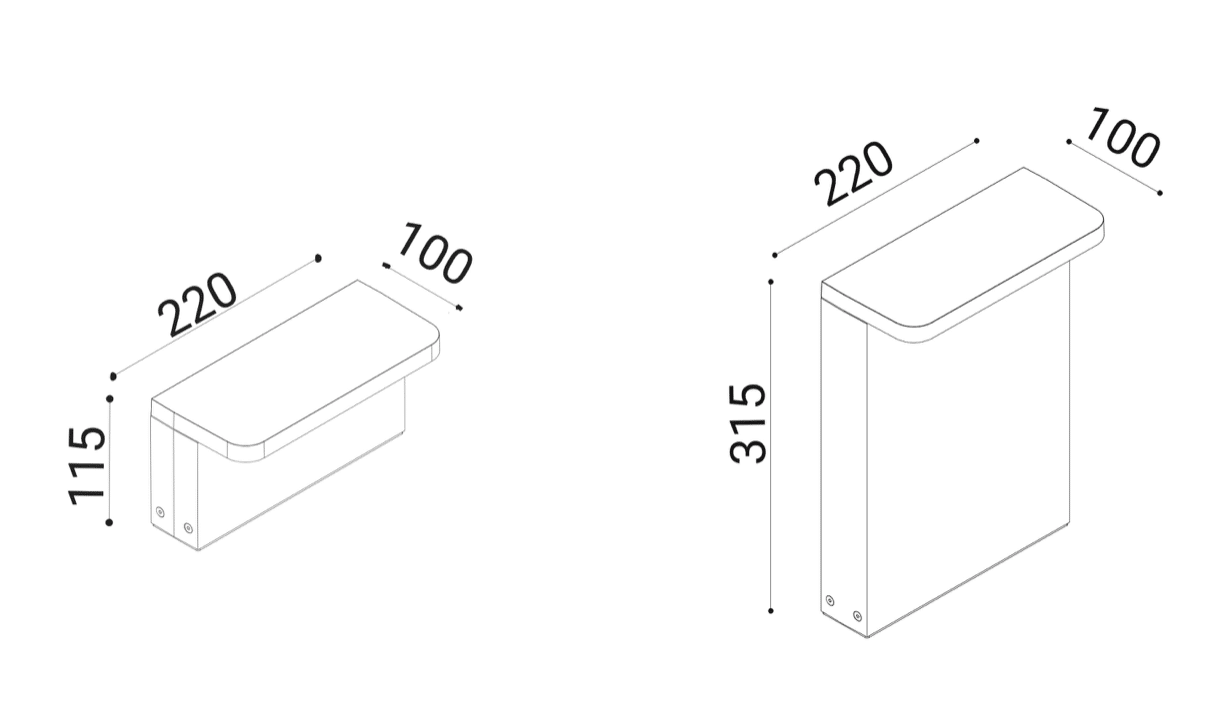

Dimensions
Technical Details
| Protection Rating: | IP 65 |
| IK Rating: | 6 |
| Power Supply: | 220V-240V |
| Colour Rendering: | CRI>80 |
| Protection Class: | Class II |
| Power: | 10W |
| Housing Colour: | White / Sand / Graphite / Aluminium / Corten |
Housing Specifications
| Housing Material | Die-cast Aluminium / Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Transaprent tempered glass |
| Dimensions | L200mm x W100m x H(various) |
| Weight | Various |
| Mounting | Ground fixed |
