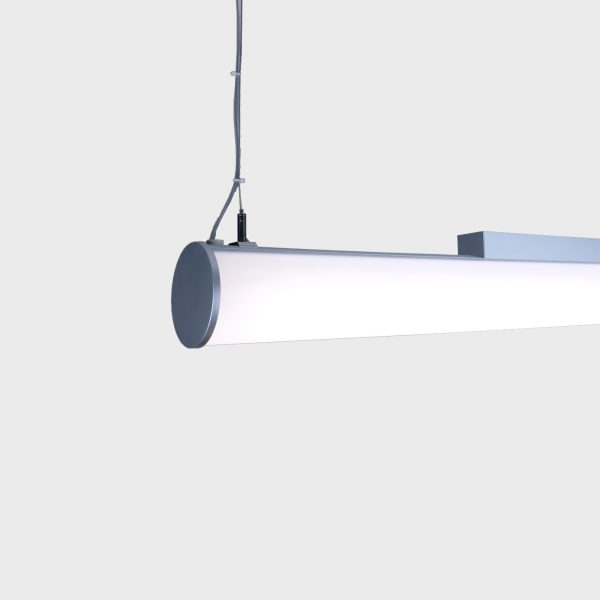

Broadline Cylindrical 594mm
Suspended Linear System
Light Source
Tridonic LLE LED
Colour Temperature
3000K / 4000K
Mounting
Wire Suspension
Application
Interior Ceiling
Housing
Extruded Aluminium
1 / 5
Overview
Cat. No: S18672
A beautifully stylish tubular luminaire, the Broadline Cylindrical range offers virtually all round illumination thanks to the wrap around diffuser design which extends to 310° allowing the Tridonic LLE boards to provide high quality, even illumination. Main spine and gear housing produced in high quality extruded & anodised aluminium with high transmission polycarbonate diffuser.
A choice of standard lengths are available with bespoke lengths up to 2.5mts also available to order. Standard versions fitted with integral high efficiency driver located within rear mounted aluminium housing, and can also be supplied with remote driver for a cleaner aesthetic line. Supplied c/w adjustable 3mtr wire suspension set.
Downloads
| OVERVIEW PDF | > |
| TECHNICAL DRAWING | > |
| LDT FILES | > |
Dimensions
Technical Details
| Lamp: | Tridonic LLE LED Module |
| Lamp: | 50,000 hours |
| CRI | >90 |
| Wattage: | 15W |
| Voltage: | 240V |
| Class: | Class 1 |
| Driver: | Integrated high efficiency |
| Cooling: | Passive heatsink |
| IP Rating | IP40 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Polycarbonate diffuser |
| Dimensions | Ø100mm x H129mm x 594mm |
| Weight | 2.5kg |
| Mounting | Wire Suspension |
Light Output Details
| Length | Col. Temp | Wattage | Lumen Output | Sys Efficacy |
| 594mm | 3000K | 15W | 2350lm | 161lm/W |
| 594mm | 4000K | 15W | 2470lm | 169lm/W |
| 1154mm | 3000K | 29W | 4700lm | 161lm/W |
| 1154mm | 4000K | 29W | 4940lm | 169lm/W |
| 1434mm | 3000K | 37W | 5870lm | 161lm/W |
| 1434mm | 4000K | 37W | 6170lm | 169lm/W |
| 1714mm | 3000K | 44W | 7045lm | 161lm/W |
| 1714mm | 4000K | 44W | 7410lm | 169lm/W |
Build Your Product
Range
Housing Colour
Col Temp
Emergency
Power Supply
Product code:
Product details:
