Broadline Cylindrical Minimal 1714mm

Suspended Linear System

Key Features

Light Source

Tridonic LLE LED

Colour Temperature

3000K / 4000K

Mounting

Wire Suspension

Application

Interior Ceiling

Housing

Extruded Aluminium

Enquire Build your product

Enquire

Build your product

1 / 5

Overview

Cat. No: S18675

A beautifully stylish tubular luminaire, the Broadline Cylindrical Minimal range offers virtually all round illumination, with a clean aesthetic line due to remote driver. Main spine and gear housing produced in high quality extruded & anodised aluminium with high transmission polycarbonate diffuser. A choice of standard lengths are available with bespoke lengths up to 2.5mts also available to order.

Supplied c/w adjustable 3mtr wire suspension set.

Downloads

OVERVIEW PDF	>
TECHNICAL DRAWING	>
LDT FILES	>

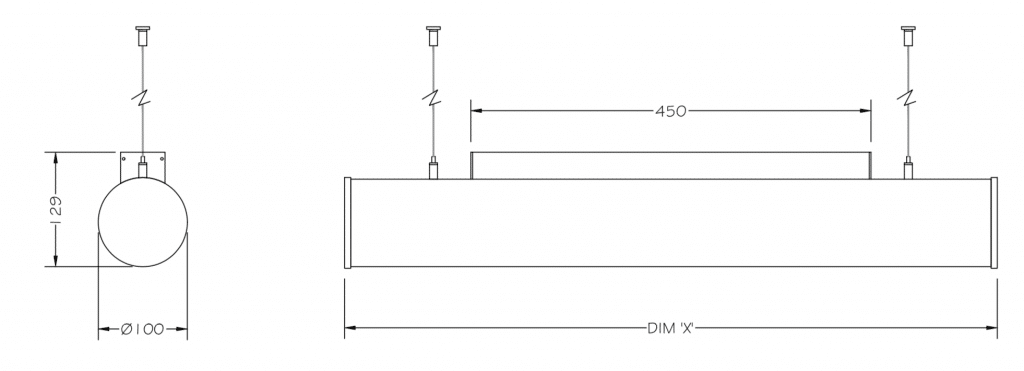

Dimensions

Technical Details

Lamp:	Tridonic LLE LED Module
Lamp:	50,000 hours
CRI	>90
Wattage:	44W
Voltage:	240V
Class:	Class 1
Driver:	Integrated high efficiency
Cooling:	Passive heatsink
IP Rating	IP40
LED Warranty:	5 years

Housing Specifications

Housing Material	Extruded Aluminium
Finish	Powder Coated
Optics	Polycarbonate diffuser
Dimensions	Ø100mm x 1714mm
Weight	10kg
Mounting	Wire Suspension

Light Output Details

Length	Col. Temp	Wattage	Lumen Output	Sys Efficacy
594mm	3000K	15W	2350lm	161lm/W
594mm	4000K	15W	2470lm	169lm/W
1154mm	3000K	29W	4700lm	161lm/W
1154mm	4000K	29W	4940lm	169lm/W
1434mm	3000K	37W	5870lm	161lm/W
1434mm	4000K	37W	6170lm	169lm/W
1714mm	3000K	44W	7045lm	161lm/W
1714mm	4000K	44W	7410lm	169lm/W
