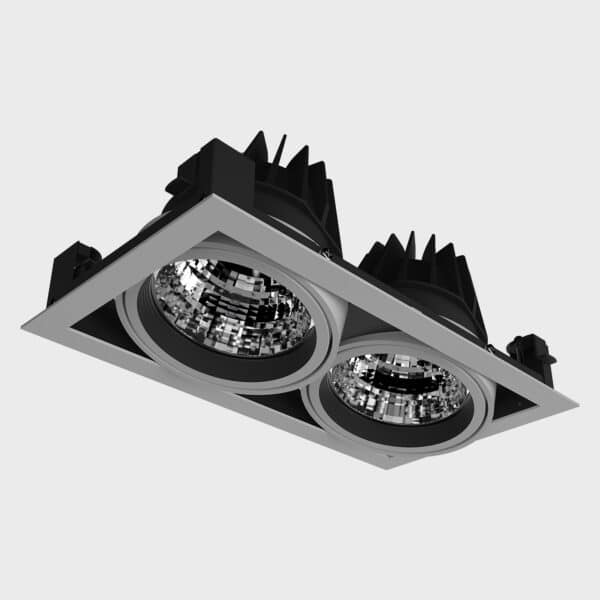

MAXI Twin Gimbal
Adjustable Downlight
Light Source
Osram PL-Core
Colour Temperature
3000K / 4000K
Mounting
Ceiling recessed
Application
Ceiling Downlight
Housing
Aluminium
1 / 2
Overview
Cat. No: S18151/2 | S18155/2
This Sovereign Maxi Twin Gimbal Downlight is the twin version of the Maxi downlight, offering an impressive lighting output of up to 7800 lumens as standard. Incorporating the latest Osram PL-CORE LED modules which are coupled with a high efficiency, low flicker LED driver for optimum life and efficiency. Fixed output drivers are supplied as standard but dimmable options are available to suit any dimming protocol.
As with all our Sovereign downlights, the Maxi Gimbal downlight features up to date passive heatsink technology and is available with a range of beam options. The die-cast aluminium housing and bezel are finished in tough polyester powder coat for maximum durability. Standard colours white, black or silver with other BS/RAL colours available to order.
Downloads
| TECHNICAL OVERVIEW (PDF) | > |
| DRAWING (JPG) | > |
| Photometry (LDT) | > |
| SOVEREIGN DOWNLIGHT BROCHURE (PDF) | > |
Dimensions
Technical Details
| Lamp | Osram PL-CORE |
| Lamp life | 50,000 hours |
| CRI | >90 |
| Voltage | 240V |
| Class | Class 1 |
| Driver | High efficiency constant current |
| Diffuser | Clear Glass Lens |
| IP Rating | IP40 |
| Cutout | 170mm x 330mm |
| LED Warranty | 5 years |
Housing Specifications
| Housing Material | Aluminium |
| Finish | Powder Coated |
| Optics | Clear Glass |
| Dimensions | 185mm x 345mm |
| Weight | 1.2KG |
| Mounting | Ceiling recessed |
Light Output Details
| Col. Temp | Wattage | Lumen Output | LED efficacy |
| 3000K | 2 x 20W | 4358lm | 108lm/W |
| 4000K | 2 x 20W | 4622lm | 115lm/W |
| 3000K | 2 x 28W | 5918lm | 106lm/W |
| 4000K | 2 x28W | 6274lm | 112lm/W |
Build Your Product
Range
Beam Angle
Bezel Colour
Colour temp
Emergency (remote)
Power Supply
Product code:
Product details:
