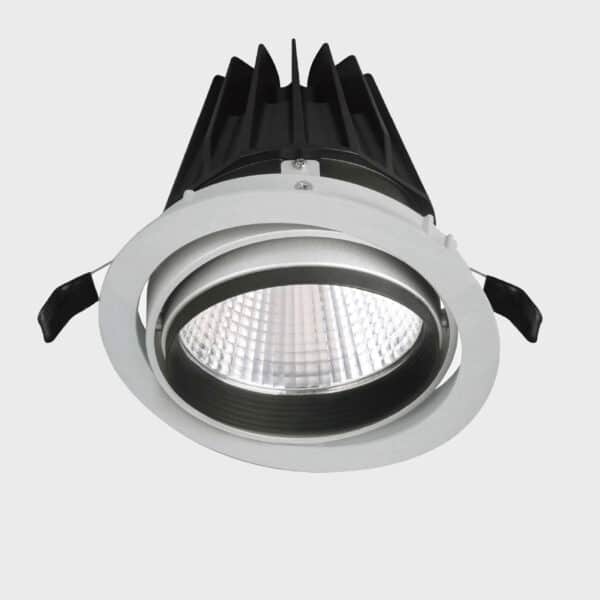

MIDI Gimbal Downlight
LED Downlight
Cat. No: S18152
An exceptionally compact high performance adjustable gimbal downlight, resulting in highly efficient light output in a fitting of just 140mm total diameter. Successfully used in major retail stores.
Available in a choice of outputs and colour temperature options. Supplied complete with high efficiency LED driver for optimum life and efficiency. Main bezel and lamp housing of die-cast aluminium, with powder coated finish for durability. Standard colours white or black with other BS/RAL colours to order.
TECHNICAL INFORMATION
| Range Name | Sovereign MIDI Gimbal Downlight |
| Range No. | S18152 |
| Application | Interior ceiling |
| Lamp | Osram PL-Core-G7 |
| Lamp life | 50,000 hours |
| CRI | >90 |
| Voltage | 240V |
| Class | Class 1 |
| Driver | High efficiency |
| Diffuser | Clear Glass Lens |
| IP Rating | IP40 |
| Housing Material | Aluminium |
| Material Finish | Powder Coated |
| Weight | 0.6kg |
| Cutout | ΓΈ130mm |
| LED Warranty | 5 years |
LIGHT OUTPUT DETAILS
| Col. Temp | Wattage | Lumen Output | LED efficacy |
| 3000K | 18W | 1627lm | 90lm/W |
| 4000K | 18W | 1633lm | 90lm/W |
| 3000K | 24W | 2575lm | 107lm/W |
| 4000K | 24W | 2730lm | 138lm/W |

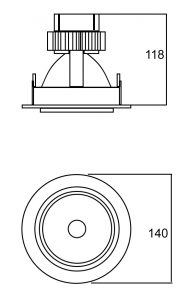

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Output Wattage: | 18W / 24W |
| Bezel Colour: | White / Black / Silver / Other BS/RAL |
| Col. Temp: | 3000K / 4000K |
| Emergency: | Emergency options available |
| Power Supply: | Dimmable Options available |
BUILD YOUR PRODUCT
To generate a variant-specific order code, select an option in each of the following categories.
Range
Beam Angle
Bezel Colour
Col. Temp & Output
Emergency (remote)
Power Supply
Product code:
Product Details:
For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
