Mini Darklight Downlight

LED Downlight

Cat. No: S18120 | S18121 | S18122 | S18123 | S18124

A superb range of high quality fixed LED downlights with built in anti- glare baffle to provide a high level of comfort and efficiency. All versions supplied complete with carefully matched remote drivers designed to pass through the cut-out even on the tiny 2W version with its 25mm cut- out (one of the smallest downlights on the market). Simple plug & socket system between driver and head for ease of installation.




TECHNICAL INFORMATION

Range NameSovereign Mini Darklight
Range No.S18120
ApplicationInterior ceiling
LampOsram / Cree COB
Lamp life50,000 hours
CRI>80
Voltage240V
ClassClass 1
DiffuserNano / Microprism diffuser
IP RatingIP40
Housing MaterialAluminium
Material FinishPowder Coated
Beam Angle15º / 25º / 45º
Weight0.2kg
LED Warranty5 years

DOWNLOADS

  • OVERVIEW (PDF)

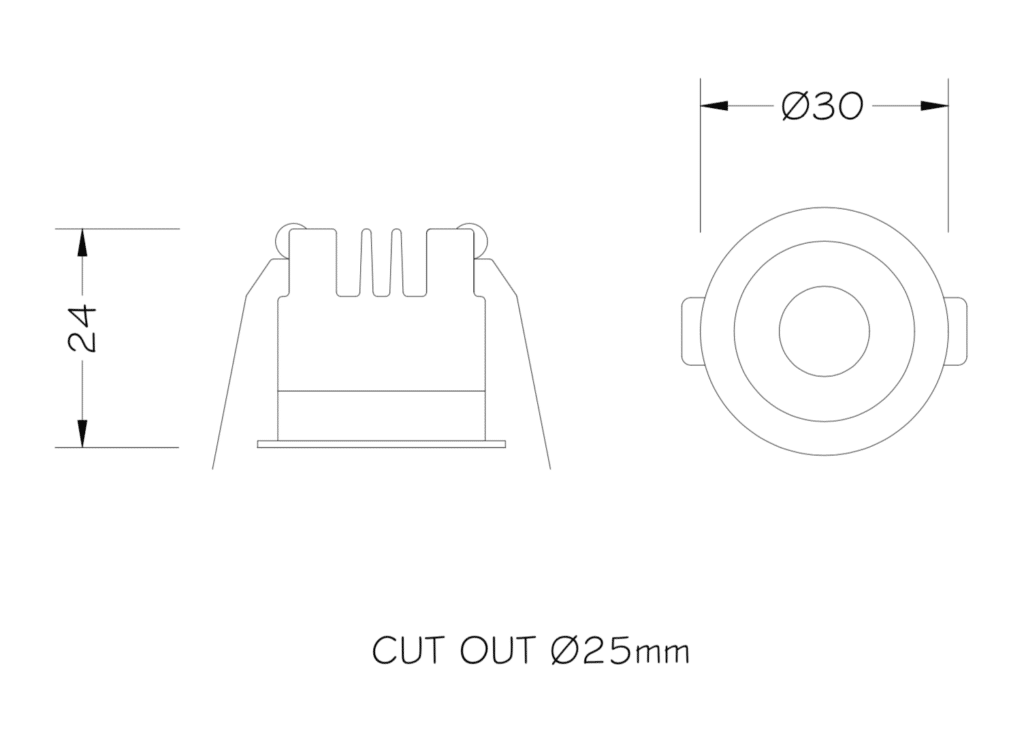

  • TECHNICAL DRAWING (JPG)

LIGHT OUTPUT DETAILS

Col. TempWattageLumen OutputLED efficacy
3000K2W210lm105lm/W
4000K2W220lm110lm/W
3000K3W315lm105lm/W
4000K3W330lm110lm/W
3000K5W525lm105lm/W
4000K5W550lm110lm/W
3000K8W840lm105lm/W
4000K8W840lm110lm/W
3000K12W1260lm105lm/W
4000K12W1320lm110lm/W

CUSTOMISATION OPTIONS

Bezel Colour:White / Black / Silver / Other BS/RAL
Output:2W / 3W / 5W / 8W / 12W
Beam Angle:Spot / Flood / Wide Flood
Col. Temp:3000K / 4000K
Emergency:Emergency options available
Power Supply:Dimmable Options available

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Housing Colour

COL TEMPERATURE

Emergency (remote)

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
