Monocube 3 Pole
Compact Floodlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
with pole mounting bracket
Application
Exterior projection
Housing
Die-cast aluminium
1 / 3
Overview
Cat. No: M8263
Monocube are floodlights with very compact dimensions and minimalist design that blend discretely into the architecture. The luminaire housings have a smooth surface and are therefore easy to clean and to maintain. Optical film is available as an accessory in order to adapt the light distributions to the exact requirements of a lighting project. Monocube floodlights feature integral LED drivers and can be easily connected to mains voltage power supply.
For more info, please visit Meyer

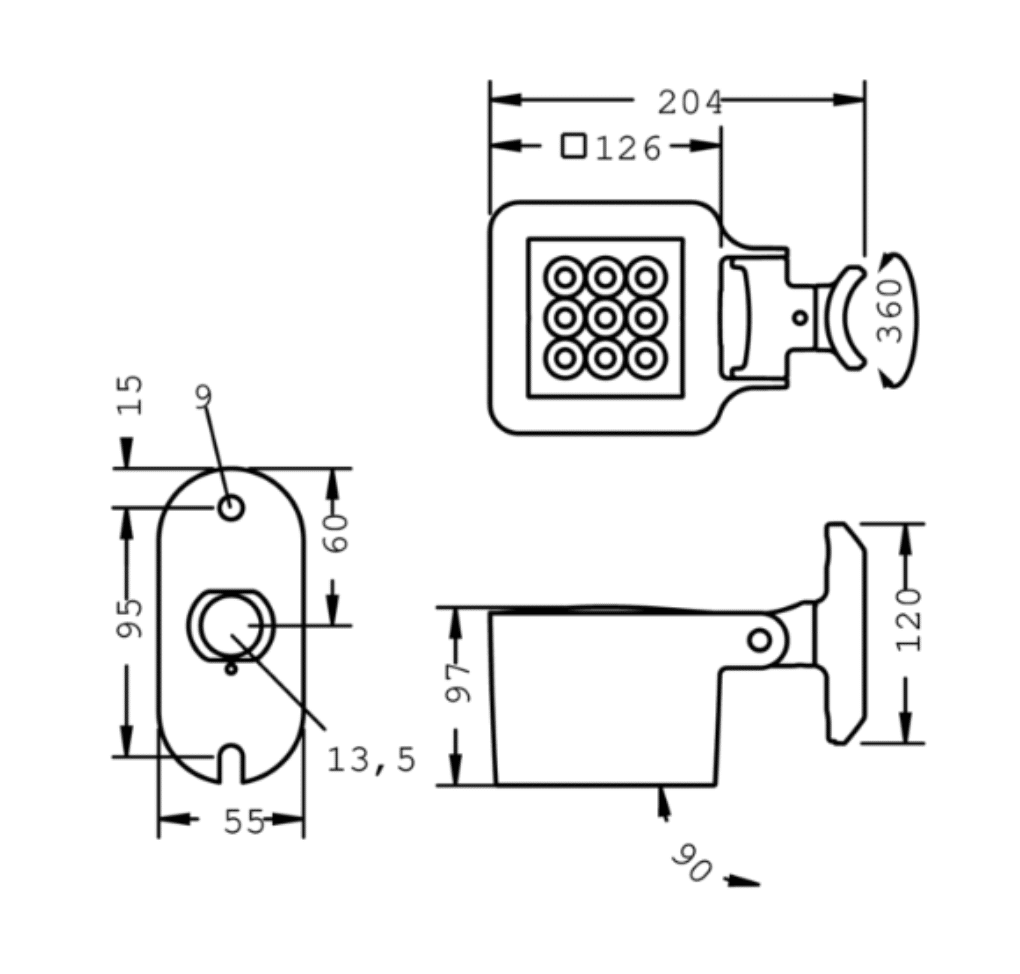

Dimensions
Technical Details
| Range Name | Meyer Monocube 3 |
| Cat No. | M8263 |
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Protection type: | IP65 |
| Protection Class: | Class I |
| Impact Resistance: | IK08 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | L126mm x H97mm x W126mm |
| Weight | 1.8KG |
| Mounting | with pole mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow Beam 4º | 3000K | 23W | 1903lm |
| Medium wide beam 34º | 3000K | 23W | 1816lm |
| Wide beam 55º | 3000K | 23W | 1533lm |
| Linear, vertical 37º / 8º | 3000K | 23W | 1705lm |
| Linear, horizontal 8º / 37º | 3000K | 23W | 1705lm |
