Meyer

Monocube 3

Compact Floodlight

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Surface / Pole

Application

Exterior projection

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. IP65 - Protected from total dust ingress. Protected from low-pressure water jets from any direction. Ingress Protection - IK08 Product is certified according to European standards

Overview

Cat. No: M8263

Monocube are floodlights with very compact dimensions and minimalist design that blend discretely into the architecture. The luminaire housings have a smooth surface and are therefore easy to clean and to maintain. Optical film is available as an accessory in order to adapt the light distributions to the exact requirements of a lighting project. Monocube floodlights feature integral LED drivers and can be easily connected to mains voltage power supply.

For more info, please visit Meyer

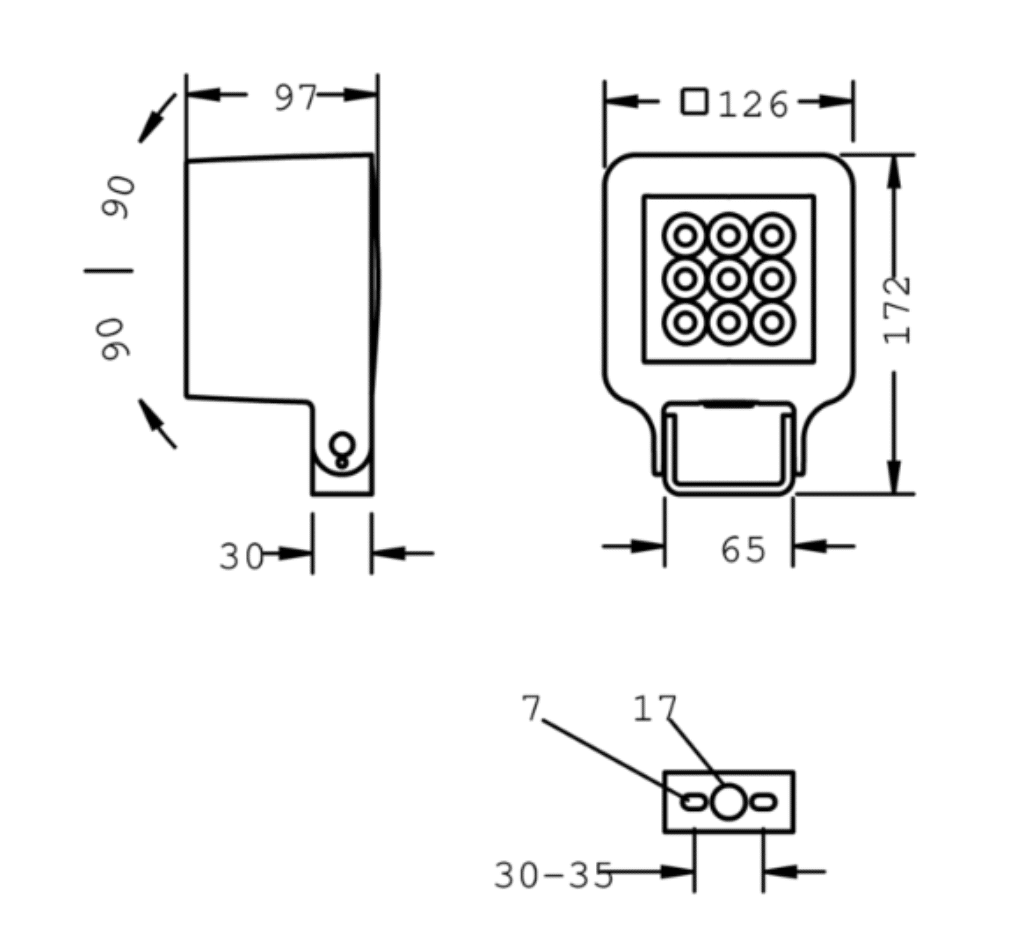

Dimensions


Technical Details


Housing Specifications


Light Output Details


Beam Col Temp. Wattage Lumen Output
Narrow Beam 4º 3000K 23W 1903lm
Medium wide beam 34º 3000K 23W 1816lm
Wide beam 55º 3000K 23W 1533lm
Linear, vertical 37º / 8º 3000K 23W 1705lm
Linear, horizontal 8º / 37º 3000K 23W 1705lm
