Meyer

Nanocube Ceiling IP65

Exterior Surface Downlight

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Ceiling Surface mounting

Application

Exterior Downlight

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. IP65 - Protected from total dust ingress. Protected from low-pressure water jets from any direction. Product is certified according to European standards

Overview

Cat. No: M8308

Nanocube is a new exterior luminaire series with minimalist design and compact dimensions. For this product range there is a choice of narrow beam, wide beam and asymmetrical light distributions. The luminaires can be integrated discreetly into the architectural environment and deliver high lumen output despite their miniature size. With integral LED drivers they can be directly connected to mains voltage power supply.

For more info, please visit Meyer





Downloads


TECHNICAL OVERVIEW (PDF) >

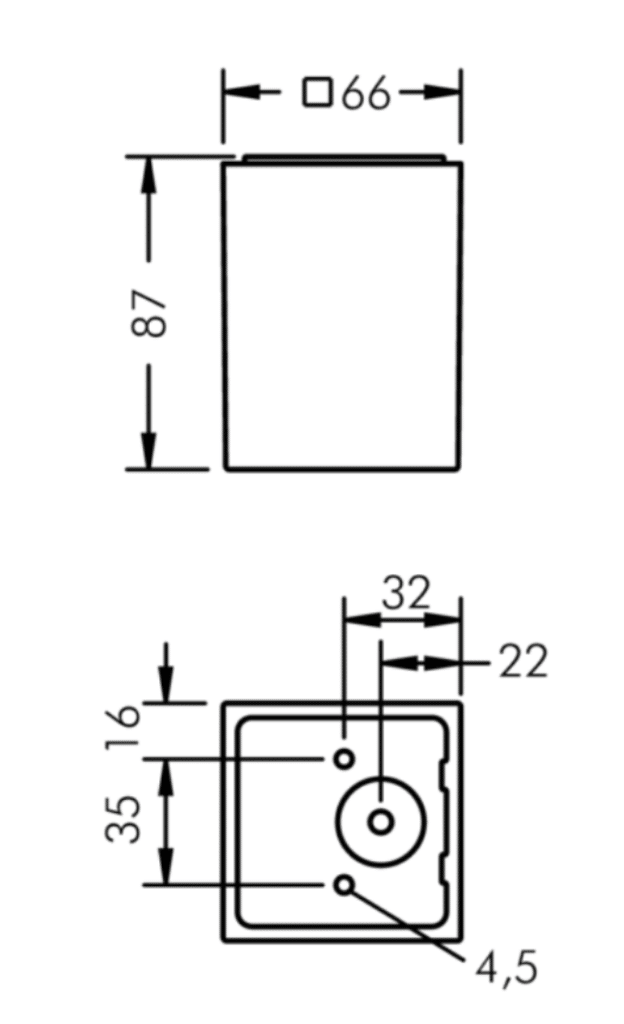

Dimensions




Technical Details


Housing Specifications


Light Output Details


Beam Col Temp. Wattage Lumen Output
Narrow Beam 6º 3000K 5W 326lm
Medium wide beam 37º 3000K 5W 330lm
Asymmetrical wide beam 28º 3000K 5W 236lm
Linear, vertical 34º / 7º 3000K 5W 348lm
Linear, horizontal 7º / 34º 3000K 5W 348lm
Axially symmetrical wide 66º / 64º 3000K 5W 356lm
Linear, horizontal 7º / 34º 3000K 5W 348lm
