Meyer
IP65 Surface Mounted 2
Downlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Surface mounting
Application
Exterior Ceiling
Housing
Die-cast aluminium
1 / 2
Overview
Cat. No: M8321

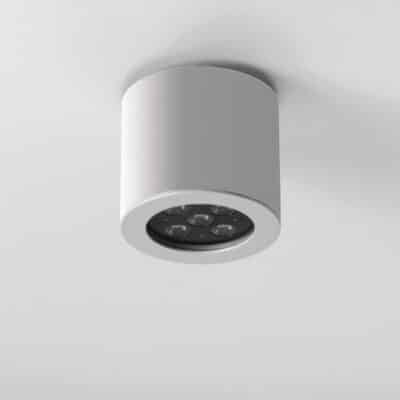

The LED surface mounted downlights are very compact and shallow in design. The precise optics are available with different light distributions. This allows the products to be used for various different lighting applications and at different mounting heights. The housings are neutral in design and have no visible screws. They can be installed directly on ceilings and canopies.
For more info, please visit Meyer

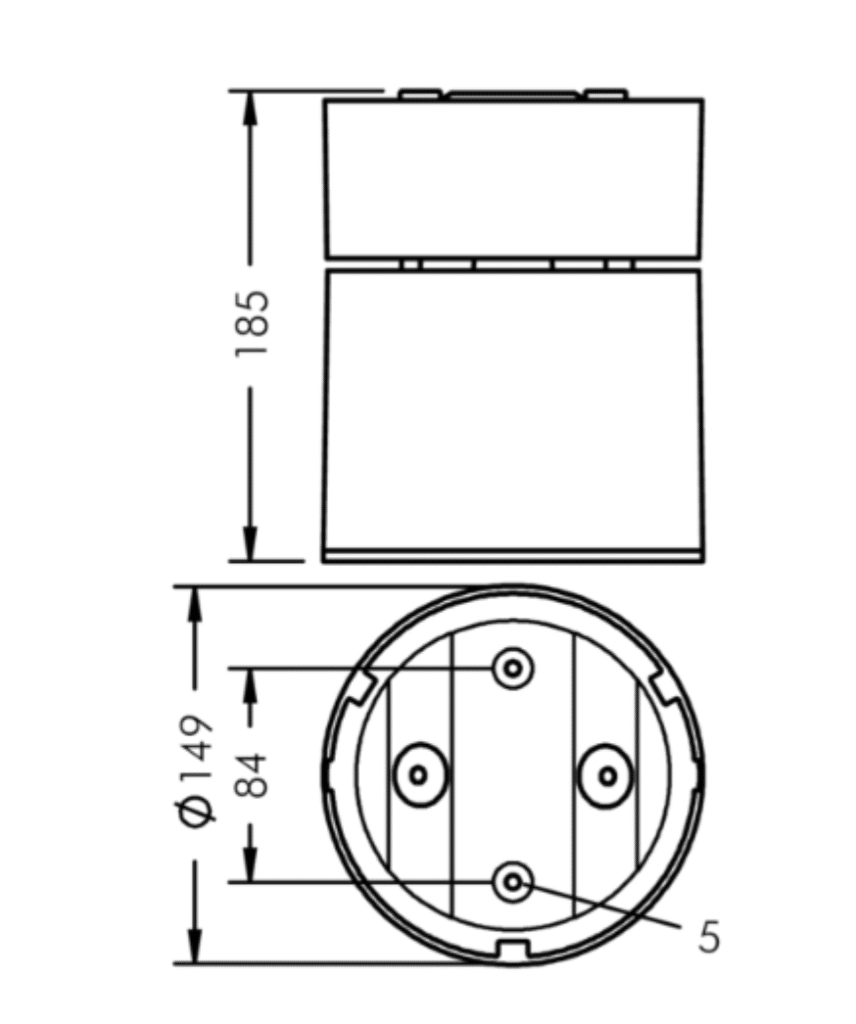

Dimensions
Technical Details
| Cat No. | M8321 |
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Protection type: | IP65 |
| Protection Class: | Class I |
| Impact Resistance: | IK08 |
| CRI | >80 |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø149mm x H(various) |
| Weight | 2KG / 2.1KG |
| Mounting | Surface mounting |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow Beam 7º | 3000K | 13W | 782lm |
| Narrow Beam 7º | 4000K | 13W | 837lm |
| Wide Beam 33º | 3000K | 13W | 727lm |
| Wide Beam 33º | 4000K | 13W | 778lm |
| Linear Beam Spread 46º / 6º | 3000K | 13W | 744lm |
| Wide Beam 50º | 4000K | 13W | 796lm |
| Medium Wide Beam 31º | 3000K | 25W | 1908lm |
| Wide Beam 50º | 4000K | 25W | 2003lm |
