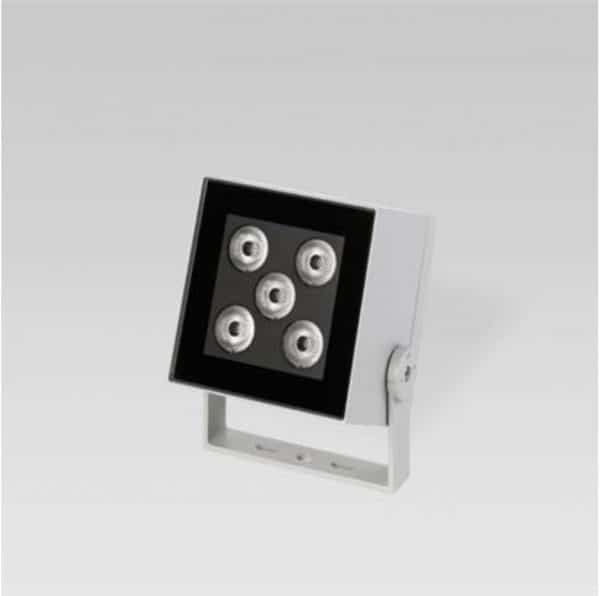

Superlight Nano 4 RGBW

Floodlight

Cat. No: M8821

Superlight Nano are extremely compact LED floodlights. The efficient optics create narrow beam, elliptical or wide beam light distributions. The minimalist design allows the floodlights to be integrated into various different architectural environments. With integral control gear they can be connected to mains voltage. Superlight Nano are the smallest and most discreet exterior floodlights on the market.

TECHNICAL INFORMATION

Range NameMeyer Superlight Nano 4 RGBW
Cat No.M8821
Application:Exterior Surface
Lamp:LED RGBW (W = 3000K)
Power5 x max. 47W
Lamp Life:50,000 hours
Protection type:IP67
Protection Class:Class 1
Impact Resistance:IK08
Tilt Range:120º
Housing Material:Die-cast aluminium

DOWNLOADS

LIGHT OUTPUT DETAILS

Beam Col Temp. Wattage Lumen Output
Narrow RGBW (3000K) 5 x 47W max. 1462lm max.
Medium Wide RGBW (3000K) 5 x 47W max. 1544lm max.

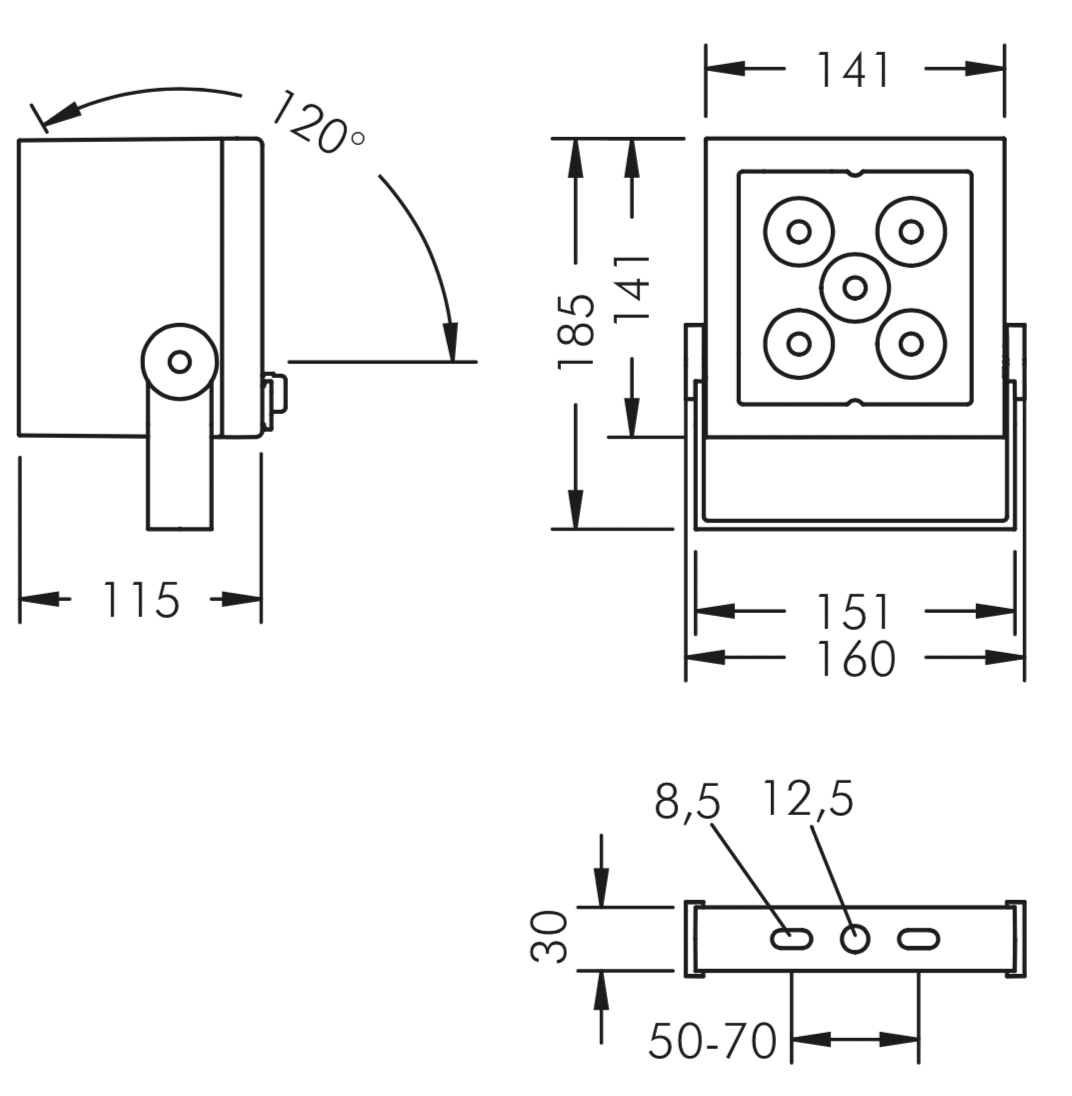

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Light Distribution:Narrow / Medium Wide / Wide / Linear, vertical / Linear, horizontal
Colour Temp:3000K / 4000K
Control:1-10V / DALI / DMX / on/off
Housing ColourBlack / White / Silver Grey
