Superlight Nano 3
Floodlight
Cat. No: M8819
Superlight Nano are extremely compact LED floodlights. The efficient optics create narrow beam, elliptical or wide beam light distributions. The minimalist design allows the floodlights to be integrated into various different architectural environments. With integral control gear they can be connected to mains voltage. Superlight Nano are the smallest and most discreet exterior floodlights on the market.
TECHNICAL INFORMATION
| Range Name | Meyer Superlight Nano 3 |
| Cat No. | M8819 |
| Application: | Exterior Surface |
| Lamp: | LED |
| Power | 9 x 2.5W |
| Lamp Life: | 50,000 hours |
| Colour Rendering | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 120º |
| Housing Material: | Die-cast aluminium |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 9 x 2.5W | 1583lm |
| Narrow | 4000K | 9 x 2.5W | 1693lm |
| Wide | 3000K | 9 x 2.5W | 1432lm |
| Wide | 4000K | 9 x 2.5W | 1533lm |
| Linear, vertical / horizontal | 3000K | 9 x 2.5W | 1592lm |
| Linear, vertical / horizontal | 4000K | 9 x 2.5W | 1704lm |

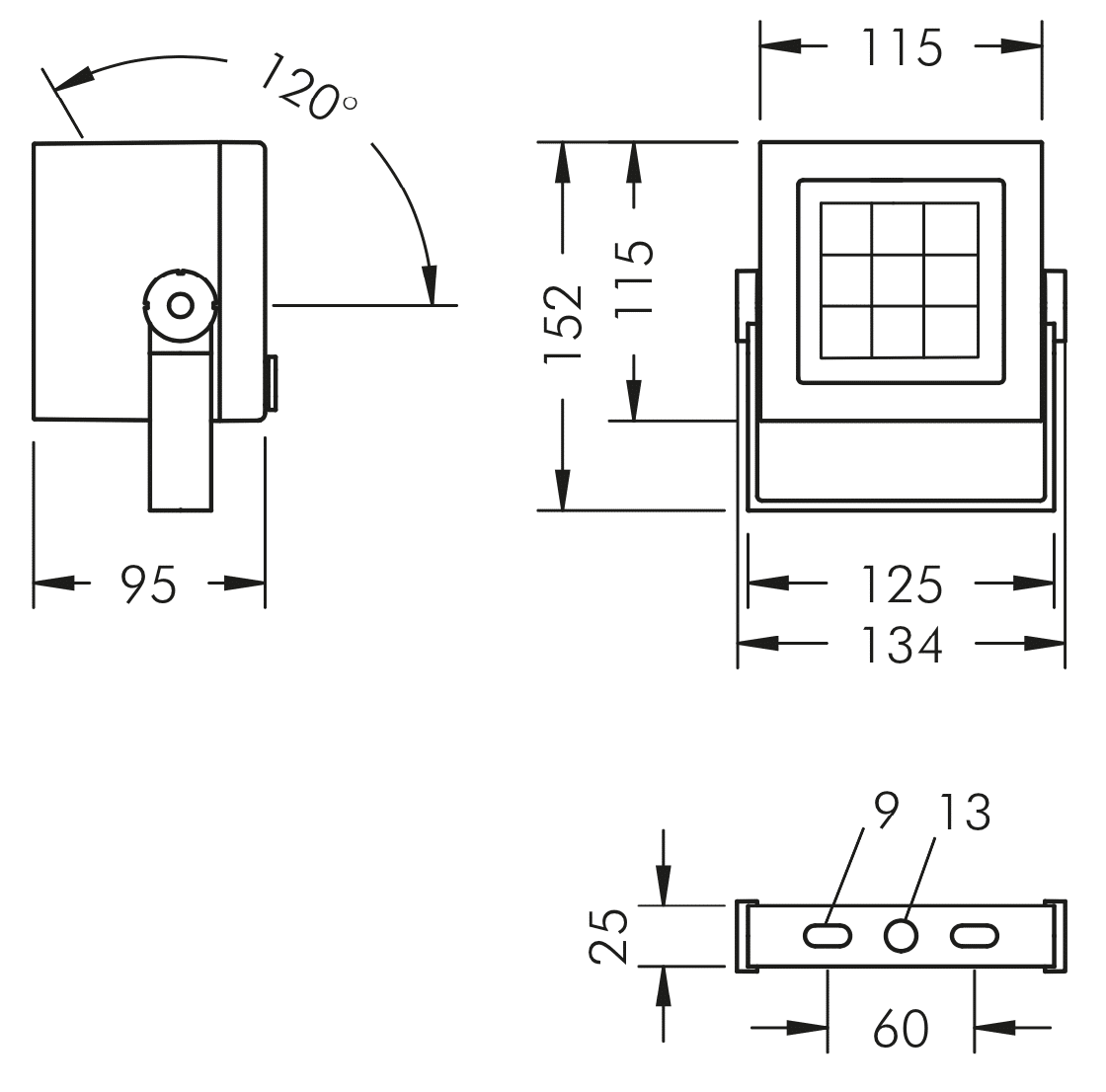

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Light Distribution: | Narrow / Wide / Linear, vertical / Linear, horizontal |
| Colour Temp: | 3000K / 4000K |
| Control: | 1-10V / DALI / DMX / on/off |
| Housing Colour | Black / White / Silver Grey |
