Suspended Drum Ø190mm

Surface Mounted Downlight

Key Features

Light Source

CREE LED

Colour Temperature

3000K / 4000K

Mounting

Drop rod / wire suspension

Application

Suspended downlight

Housing

Aluminium

Enquire Build your product

Enquire

Build your product

1 / 2

Overview

Cat. No: S98609

A high performance suspended drum luminaire incorporating the latest CREE LED modules with high efficiency driver for optimum performance and longevity. Die cast aluminium main housing with high purity aluminium facetted reflector system for added aesthetic appeal. Drum Downlight 3 offers various output options and is supplied with an integrated driver.

Standard finish white, with other BS/RAL colours to order.

Downloads

OVERVIEW (PDF)	>
TECHNICAL DRAWING (JPG)	>
PHOTOMETRY (LDT)	>

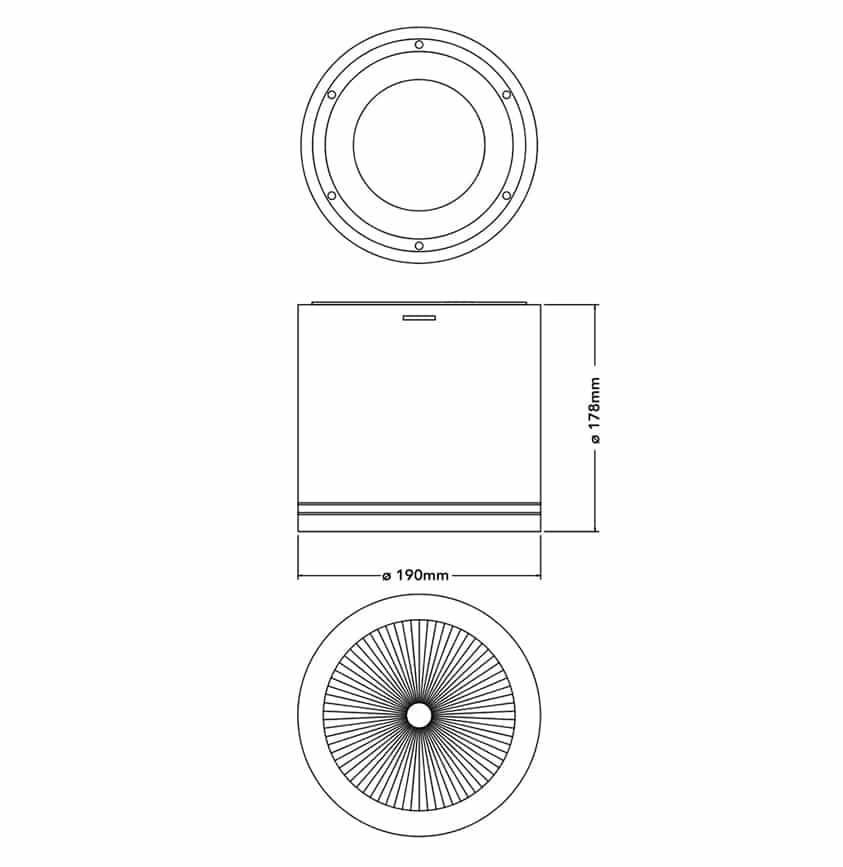

Dimensions

Technical Details

Lamp	CREE LED Module
Lamp life	50,000 hours
CRI	Ra>90
Wattage:	24W
Voltage	240V
Protection Class	Class 1
Protection Type	IP40
Driver	High-efficiency
LED Warranty	5 years

Housing Specifications

Housing Material	Aluminium
Finish	Powder Coated
Optics	Clear Glass
Dimensions	Various
Weight	2.46KG
Mounting	Drop rod / wire suspension

Light Output Details

Size	Col. Temp	Wattage	Luminous Flux	LED Efficacy
Size 0 (ø80mm x H90mm)	3000K	10W	820lm	82lm/W
Size 0 (ø80mm x H90mm)	4000K	10W	820lm	82lm/W
Size 1 (ø105mm x H141mm)	3000K	12W	1380lm	115lm/W
Size 1 (ø105mm x H141mm)	4000K	12W	1380lm	115lm/W
Size 2 (ø120mm x H152mm)	3000K	15W	1520lm	103lm/W
Size 2 (ø120mm x H152mm)	4000K	15W	1520lm	103lm/W
Size 3 (ø190mm x H178mm)	3000K	24W	2260lm	94lm/W
Size 3 (ø190mm x H178mm)	4000K	24W	2420lm	101lm/W
Size 3 (ø190mm x H178mm)	3000K	40W	3840lm	96lm/W
Size 3 (ø190mm x H178mm)	4000K	40W	4120lm	103lm/W
