Sovereign
30W Zoom Projector
LED Projector
Light Source
CREE / Philips / Osram COB
Colour Temperature
2700K / 3000K / 4000K
Mounting
Track / Surface adapter
Application
Exhibition Lighting
Housing
Aluminium
1 / 3
Overview
Cat. No: S18401
The Soveregin Zoom Projector has an adjustable telescopic lens for precise beam configuration. It has a high colour rendering of CRI 90, this projector is ideal for museum and exhibition lighting.
Available in 3 sizes, outputs and colour temperatures, the Sovereign Zoom comes in white, black or grey finishes
Downloads
| TECHNICAL OVERVIEW (PDF) | > |
| DRAWING (JPG) | > |
| Photometry (LDT) | > |
| SOVEREIGN PROJECTOR BROCHURE (PDF) | > |

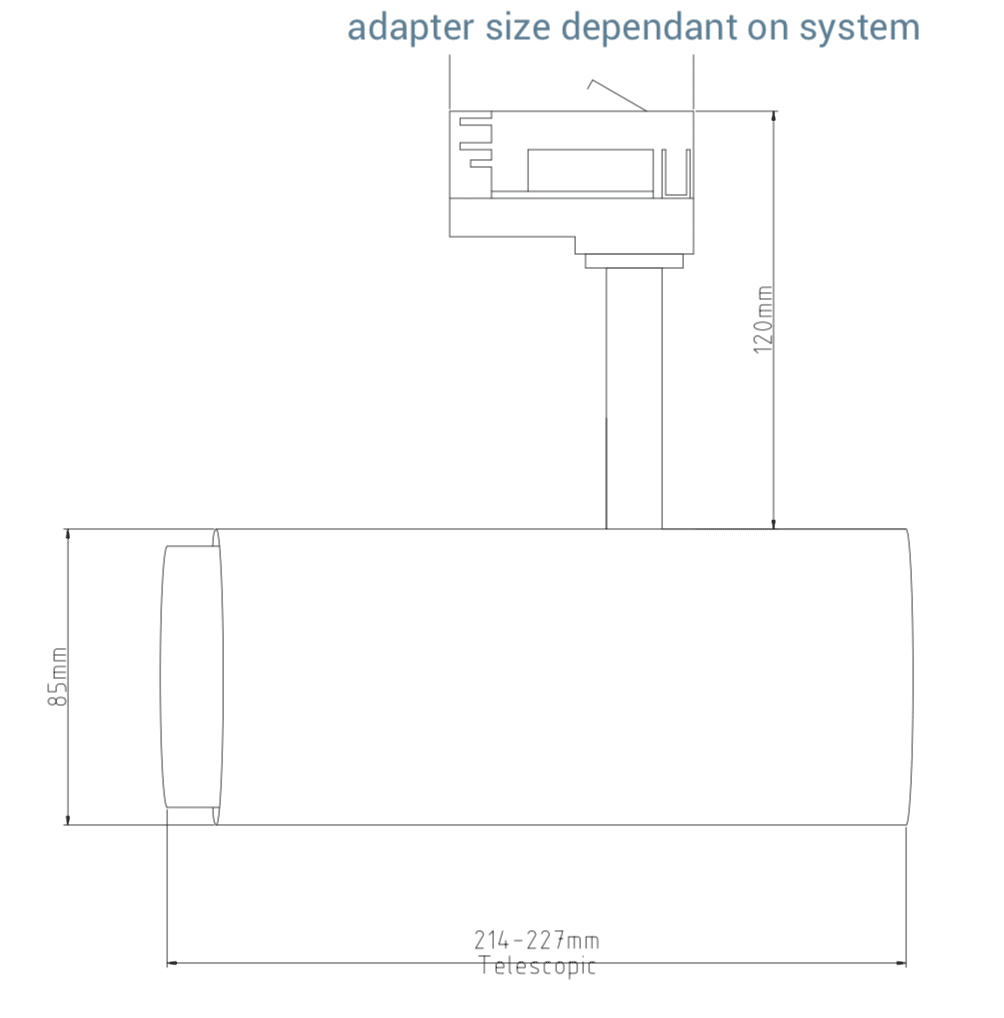

Dimensions
Technical Details
| Lamp: | CREE / PHILIPS / OSRAM COB LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering: | CRI > 90 |
| Beam: | 15-60º |
| Voltage: | 240V |
| Electrical Class: | Class I |
| IP Rating: | IP40 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Aluminium |
| Finish | Powder Coated |
| Optics | Adjustable |
| Dimensions | L214-227mm |
| Weight | 0.8KG |
| Mounting | Track / Surface adapter |
Light Output Details
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 2700K | 30W | 3065lm | 102lm/W |
| 3000K | 30W | 3082lm | 103lm/W |
| 4000K | 30W | 3150lm | 105lm/W |
