20W Zoom+ Projector
LED Projector
Light Source
Philips COB LED
Colour Temperature
2700K / 3000K / 4000K
Mounting
Track / Surface mounted
Application
Exhibition Lighting
Housing
Aluminium
1 / 4
Overview
Cat. No: S18403
An exciting new addition to the Sovereign Zoom Projector range, the Zoom+ offers an adjustable telescopic lens with beam angle from an exceptionally narrow 6° through to a wide 60° all with a simple twist of the front housing, making this unit perfect for museums or any application involving changing displays.
Using the latest LED technology, this version is supplied as standard with high colour rendering CRI90 and is available in two outputs and a choice of colour temperatures. Available in durable white, black or silver powder coated finish.
Downloads
| TECHNICAL OVERVIEW (PDF) | > |
| DRAWING (JPG) | > |
| Photometry (LDT) | > |
| SOVEREIGN PROJECTOR BROCHURE (PDF) | > |

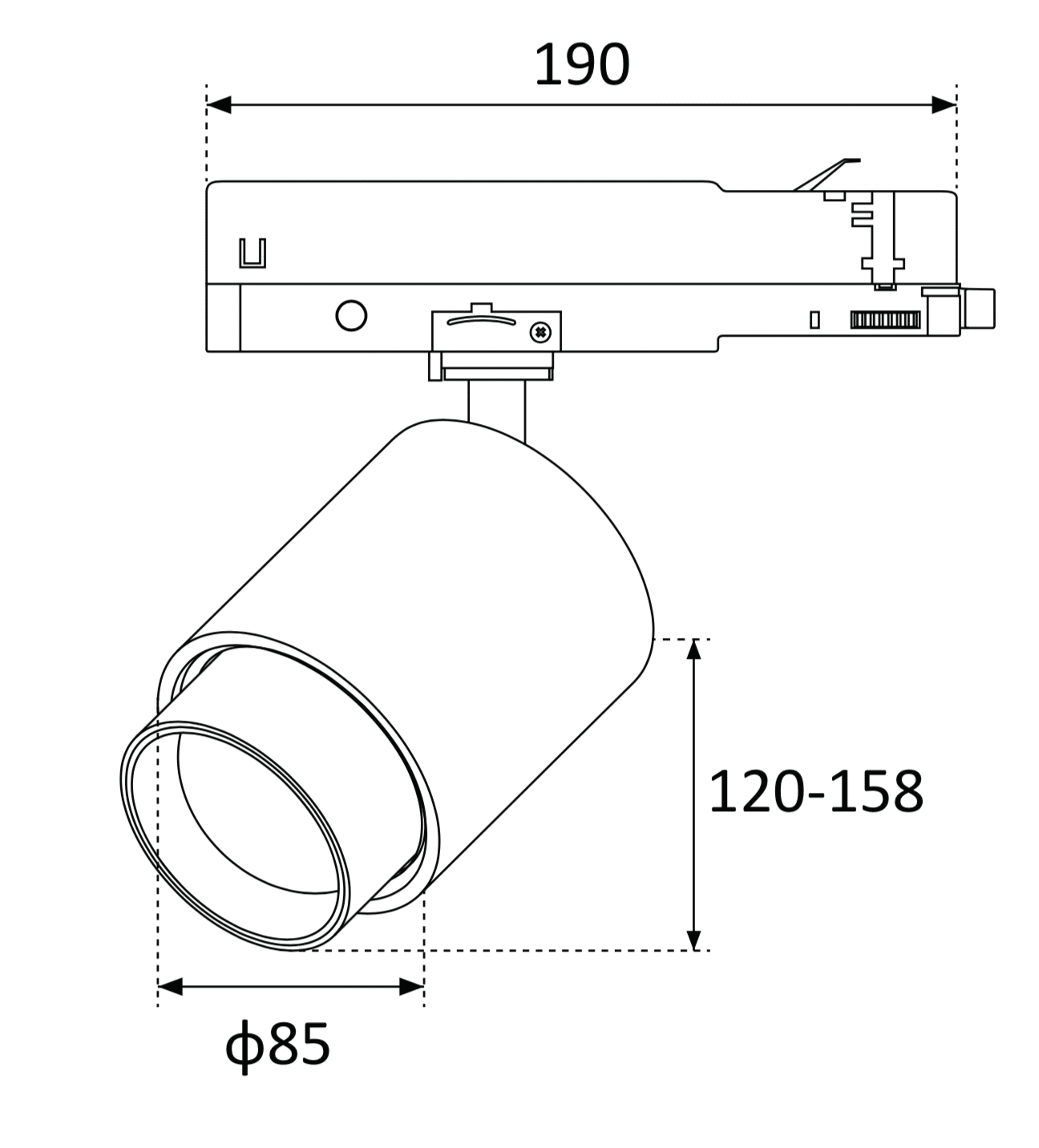

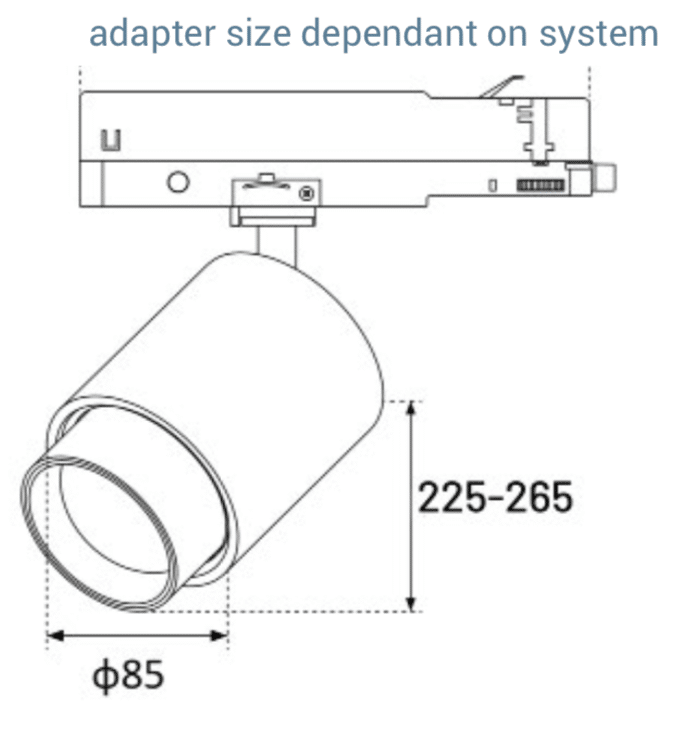

Dimensions
Technical Details
| Lamp: | Philips COB LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering: | CRI > 90 |
| Beam Angle | 6-60º |
| Output: | 20W |
| Voltage: | 240V |
| Output | 20W |
| Electrical Class: | Class I |
| IP Rating: | IP20 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Aluminium |
| Finish | Powder Coated |
| Optics | Adjustable |
| Dimensions | L120-158mm |
| Weight | 1.55KG |
| Mounting | Track / Surface mounted |
Light Output Details
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 2700K | 20W | 2000lm | 100lm/W |
| 3000K | 20W | 2200lm | 110lm/W |
| 4000K | 20W | 2200lm | 110lm/W |
Build Your Product
Range
Mounting
Housing
Colour temp
POWER SUPPLY
Product code:
Product details:
