Arclux RGBW
Facade Luminaire
Light Source
LED
Colour Temperature
RGBW (3000K)
Mounting
Surface mounting
Application
Window Reveal Lighting
Housing
Die-cast aluminium
1 / 6
Overview
Cat. No: M8374

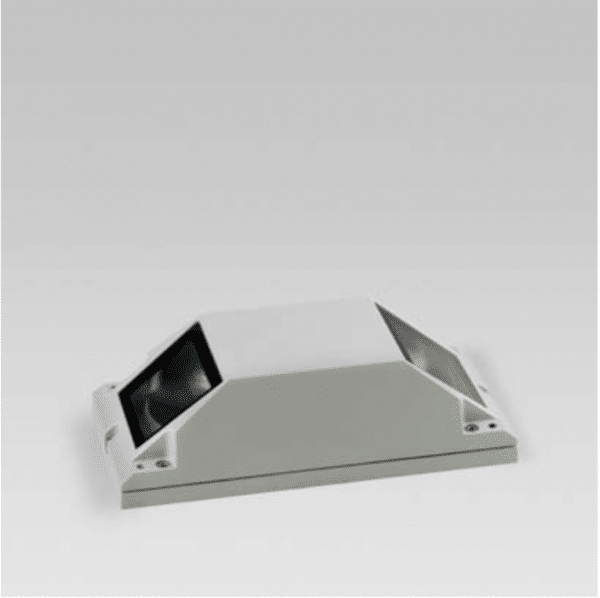

Arclux is a luminaire for the accent lighting of window reveals. The light from 2 LEDs is directed from the opposite sides of the luminaire, via specially developed reflectors, onto the widow reveal. The result is a uniform arc of light. A complete window reveal can be illuminated using just one luminaire.
The Arclux RGBW uses 2 x 4 x 1.5W RGBW LEDS for external DMX signal. It allows homogeneous colour mixing achieved using light conductor technology, light directed by a high-end optical system, 3 preset colour changing sequences and the individual colours available without the use of an external DMX signal.
Downloads
| Range Overview (PDF) | > |
Dimensions
Technical Details
| Lamp: | LED |
| Power | 12W max. |
| Lamp Life: | 50,000 hours |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | L125mm x H70mm x W270mm |
| Weight | 1.8KG |
| Mounting | Surface mounting |
Light Output Details
| Col Temp. | Wattage | Lumen Output |
| RGBW | 12W max. | 106lm |
