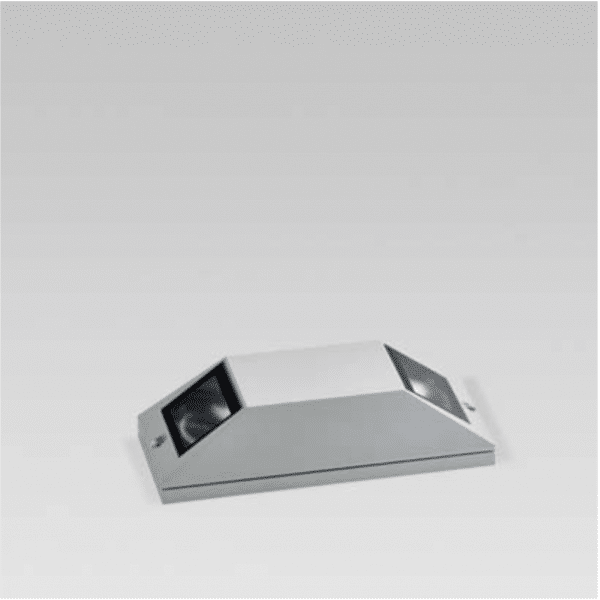

Arclux Mini
Facade Luminaire
Cat. No: M8373
Arclux is a luminaire for the accent lighting of window reveals. The light from 2 LEDs is directed from the opposite sides of the luminaire, via specially developed reflectors, onto the widow reveal. The result is a uniform arc of light. A complete window reveal can be illuminated using just one luminaire.
TECHNICAL INFORMATION
| Range Name | Meyer Arclux Mini |
| Cat No. | M8373 |
| Application: | Exterior Surface |
| Lamp: | LED |
| Power | 2 x 2W |
| Lamp Life: | 50,000 hours |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Col Temp. | Wattage | Lumen Output |
| 3000K | 2 x 2W | 161lm |
| 4000K | 2 x 2W | 179lm |
| Blue | 2 x 2W | 101lm |

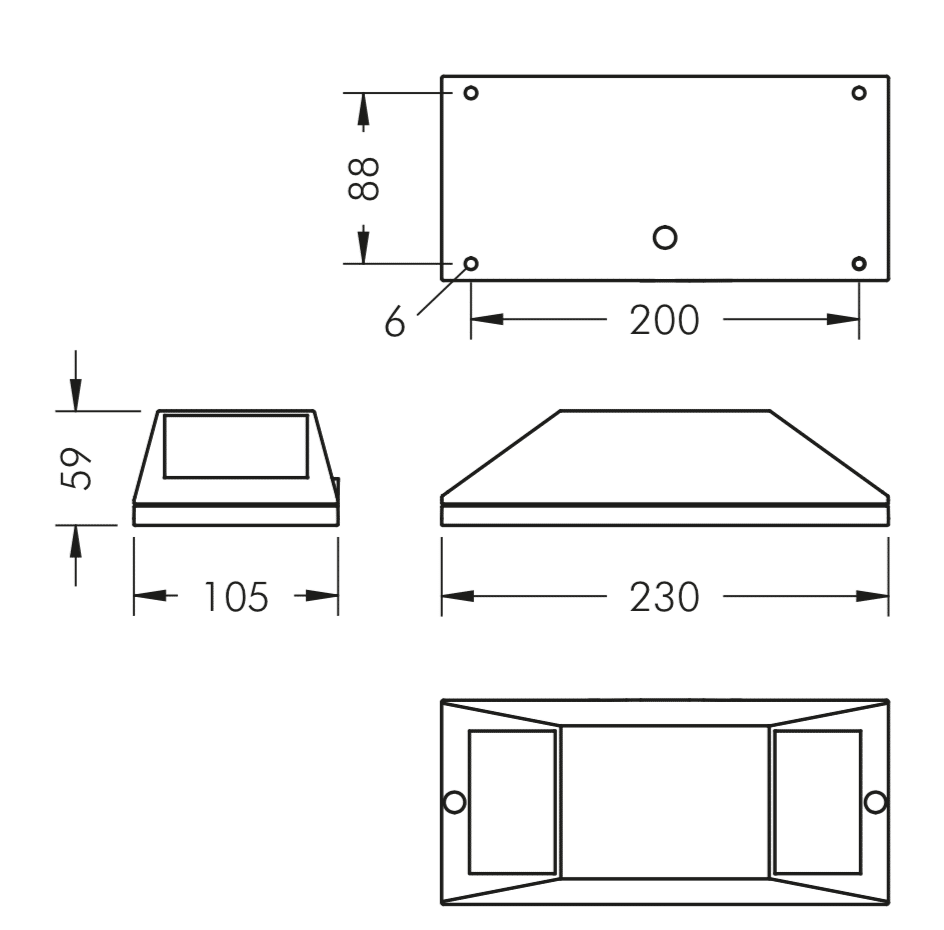

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Colour Temp: | 3000K / 4000K / Blue |
| Control: | 1-10V / DALI / DMX / on/off |
| Housing Colour | Black / White / Silver Grey |
