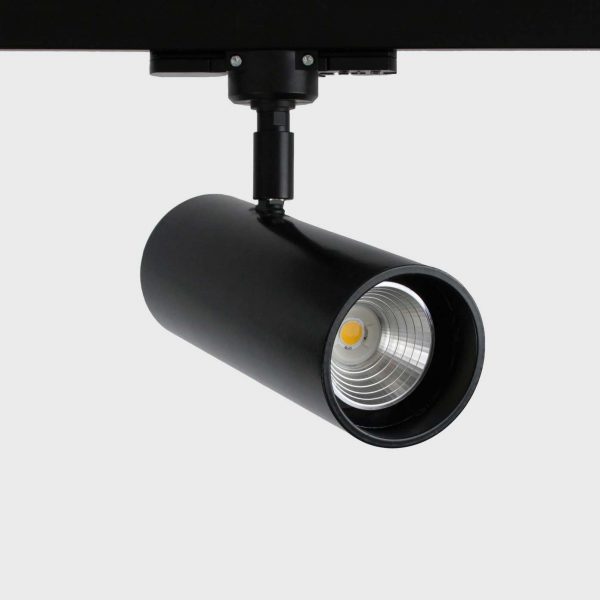

14W Round Minimal
LED Projector
Light Source
Tridonic SLE
Colour Temperature
3000K / 4000K
Mounting
Surface / Tracking mounting
Application
Interior projection
Housing
Extruded Aluminium
1 / 8
Overview
Cat. No: S18368
Our signature LED projector, the Sovereign Round Minimal Spotlight boasts a beautifully minimal design thanks to the driver being incorporated within the main lamp housing. Designed around the latest Tridonic SLE LED modules with optical lenses to suit a range of applications. Can also accept any of our standard Electronic Spotlight accessories including colour filter lenses, honeycombe louvres, barn doors etc (full details here).
Available with dimming gear as an option with track adaptor or ceiling plate mounting (click here for full list of track accessories). Standard colours black, white, and silver as standard with other BS/RAL colours to order.
Technical Details
| Lamp: | Tridonic SLE LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering: | CRI > 90 |
| Output | 13.6W |
| Voltage: | 240V |
| Electrical Class: | Class I |
| Driver: | Integrated high-efficiency |
| IP Rating: | IP40 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Reflector |
| Dimensions | L160mm |
| Weight | 0.66KG |
| Mounting | Surface / Tracking mounting |
Light Output Details
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 9.4W | 1346lm | 143lm/W |
| 4000K | 9.4W | 1423lm | 151lm/W |
| 3000K | 13.6W | 1824lm | 134lm/W |
| 4000K | 13.6W | 1928lm | 142lm/W |
Build Your Product
Range
Beam Angle
Mounting
Housing
Temp & Output
POWER SUPPLY
Product code:
Product details:
