Sovereign
Cube Up/Down 2
LED Projector
Light Source
SLE
Colour Temperature
3000K / 4000K
Mounting
Wall mounted
Application
Interior Wall
Housing
Aluminium
1 / 2
Overview
Cat. No: S98864
Designed to complement our existing ranges of wall mounted up/downlights, this Cube Up/Downlight is the LED version of our popular classic CFL design, perfect for larger interior projects including churches, community halls etc.
Available in 3000K or 4000K, and in a range of outputs. Also available as up or downlight on request.
Downloads
| OVERVIEW (PDF) | > |
| PHOTOMETRY (LDT) | > |

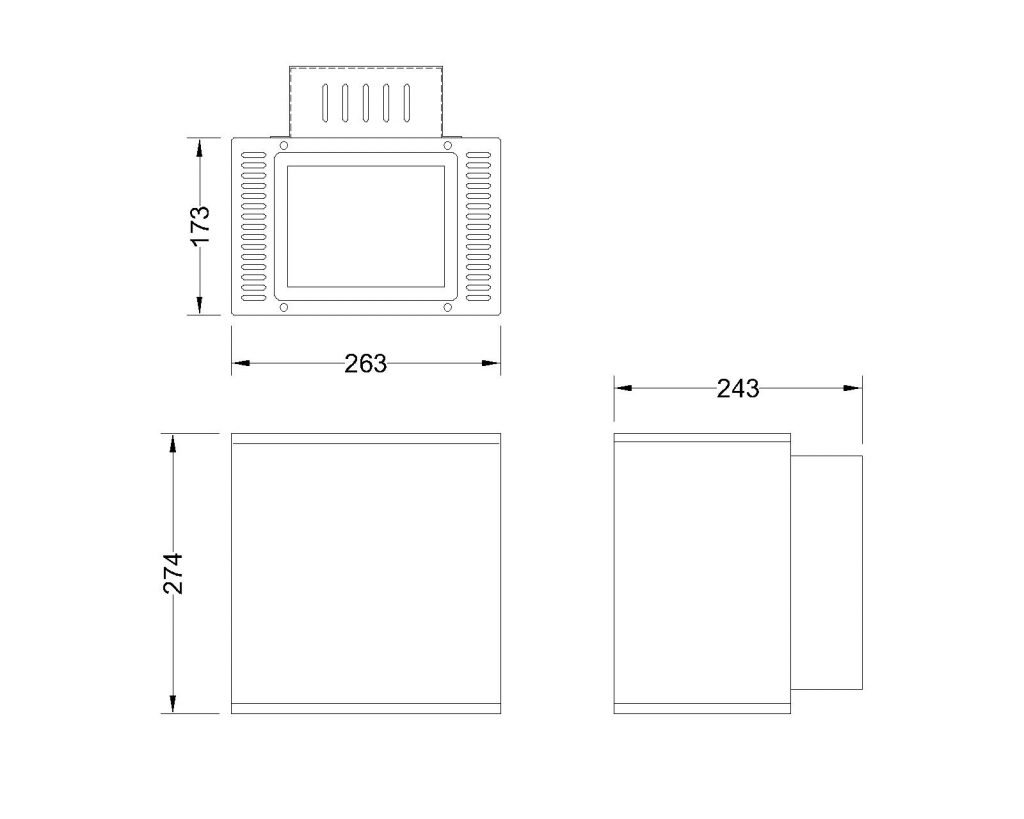

Dimensions
Technical Details
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering: | CRI > 80 |
| Wattage: | 36.84W |
| Voltage: | 240V |
| Class: | Class 1 |
| Driver: | Integrated high-efficiency |
| IP Rating: | IP20 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Aluminium |
| Finish | Powder Coated |
| Optics | Clear Glass |
| Dimensions | D243mm x H274 x W263mm |
| Weight | 4.75KG |
| Mounting | Wall mounted |
Light Output Details
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 25.24W | 1932lm up + 1932lm down | 153lm/W |
| 4000K | 25.24W | 1987lm up + 1987lm down | 157lm/W |
| 3000K | 36.84W | 2740lm up + 2740lm down | 149lm/W |
| 4000K | 36.84W | 2836lm up + 2836lm down | 154lm/W |
