Home / Sovereign / Interior Ceiling Surface / Round Surface Panel 493mm
Sovereign

Round Surface Panel 493mm

Surface Mounted LED Panel

Key Features

Light Source

Side Emitting SMD

Colour Temperature

3000K / 4000K

Mounting

Surface mounting

Application

Interior ceiling / wall

Housing

Spun aluminium

IP40 - Protected from tools and small wires greater than 1 millimeter. Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing protection. UK Conformity Assessed Made in Britain 5 Year Guarantee

Overview

Cat. No: S18637

Taking the successful LED Panel concept to an exciting new level, these exceptionally slim circular units provide high levels of illumination with a pleasingly soft appearance. With its minimally elegant design, the Round Surface Mounted Panels offer a discrete yet distinctive solution for both ceiling downlighting and as wall mounted luminaires.

The Round Panel is also available as a stunningly thin wire-suspended option, and as a recessed unit. Supplied complete with standard high efficiency driver, but can also be specified with dimmable drivers to suit any dimming protocol. EM versions also available, with all components located within the spun aluminium rear gear housing for ease of installation.

Downloads


OVERVIEW (PDF) >
TECHNICAL DRAWING (JPG) >
PHOTOMETRY (LDT) >

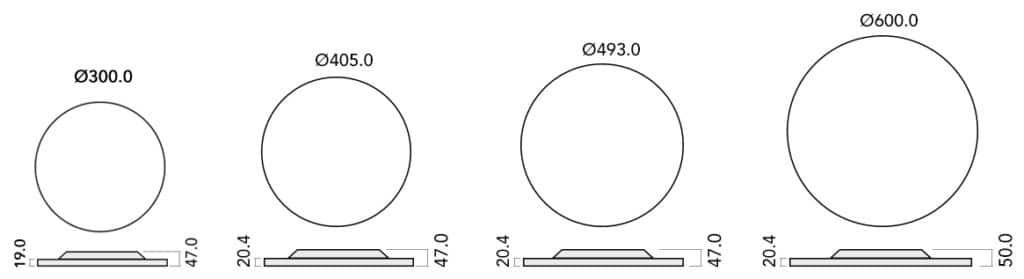

Dimensions


Technical Details


Housing Specifications


Light Output Details


Size Col. Temp Wattage Luminous Flux LED Efficacy
Size 0 (300mm) 3000K 20W 2000lm 100lm/W
Size 0 (300mm) 4000K 20W 2200lm 110lm/W
Size 1 (405mm) 3000K 30W 2500lm 83lm/W
Size 1 (405mm) 4000K 30W 2700lm 90lm/W
Size 2 (493mm) 3000K 40W 3600lm 90lm/W
Size 2 (493mm) 4000K 40W 3800lm 95lm/W
Size 3 (600mm) 3000K 48W 4500lm 94lm/W
Size 3 (600mm) 4000K 48W 4800lm 100lm/W

Build Your Product

Versions

X

Housing Colour

X
X
X

Colour temp

X
X

Emergency

X
X

Power Supply

X
X
X
X
X
X
X

Product code:
Product details:
