Mini QS Up/Down

Wall Mounted Up/Downlight

Cat. No: S18552

A classic design updated to the latest LED technology, this Sovereign Mini Quartersphere provides up and downlight illumination with the microprism diffuser generating a pleasingly uniform spread. Main housing produced from high purity aluminium with integral control gear fitted as standard.

The Sovereign Mini Quartersphere is also available as an uplight only.

TECHNICAL INFORMATION

APPLICATION:Interior Wall
LAMP:Tridonic LLE LED module
LAMP LIFE50,000 hours
CRI:>80
VOLTAGE240V
CLASS:Class 1
DRIVER:Integrated high-efficiency
IP RATING:IP20
HOUSING MATERIAL:Spun Aluminium
MATERIAL FINISHPowder Coated
WEIGHT:1.2Kg
LED WARRANTY5 years

DOWNLOADS

LIGHT OUTPUT DETAILS

COL. TEMPWATTAGELUMEN OUTPUTLED EFFICACY
3000K10.9W1280lm + 320lm147lm/W
4000K10.9W1340lm + 330lm153lm/W

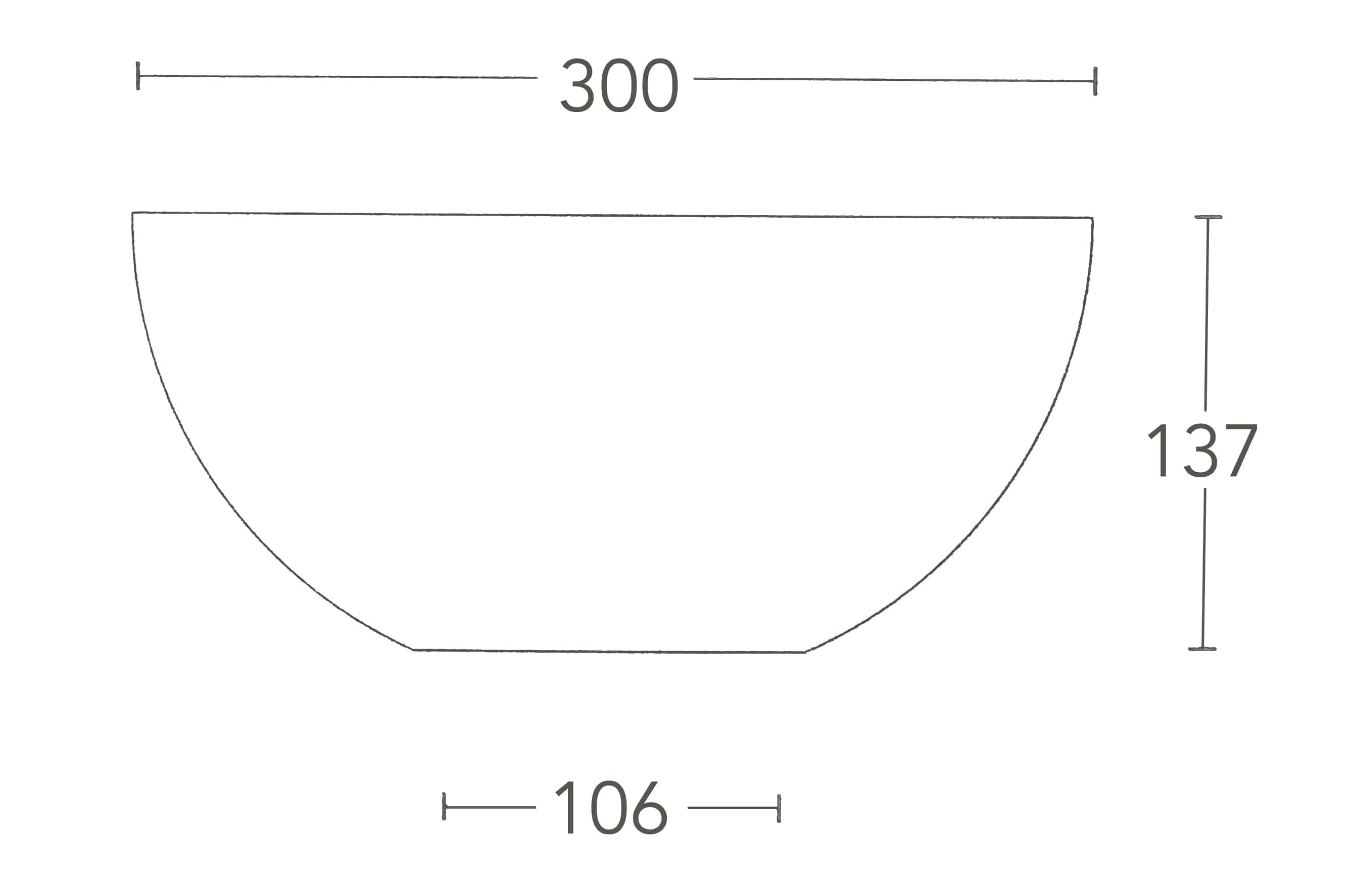

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

BODY COLOURWhite / Black / Silver / other BS/RAL
COL. TEMPWarm White (3000K) / Neutral White (4000K)
POWER SUPPLYNon-Dimming / Dimmable options
DRIVEREmergency / Non-Emergency

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Housing Colour

Col Temp

Emergency

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
