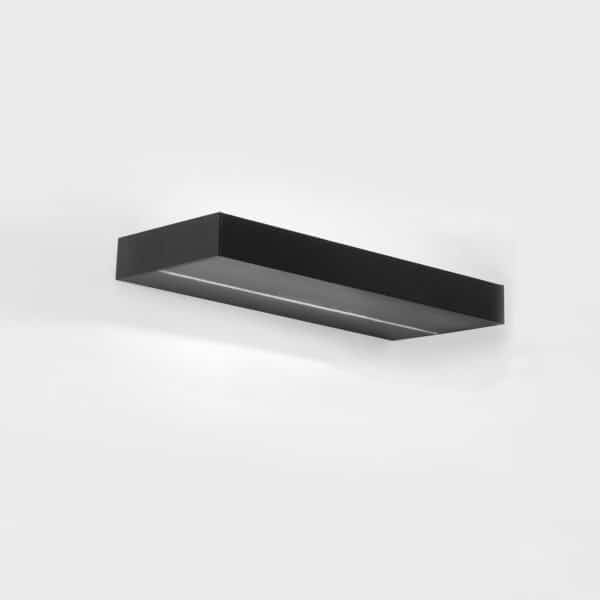

Ecoblade Uplighter
Wall Mounted Uplighter
Cat. No: S18541
An exceptionally high performance range of top quality wall mounted uplighters, specifically designed around the latest high efficiency Tridonic LLE modules, offering superb performance of up to 163lm/W. Available in a range of styles including uplight only or up/downlight. Also available with an illuminated slot in the front facade as an added decorative touch (see Ecoblade Slot S18542 range).
Main housing produced from extruded aluminium with integral passive thermal management. All versions supplied with Nano/Microprism diffuser for optimum light transmission and visual comfort. Finished in textured polyester powder coat with standard finishes in white, black and silver, with other BS/RAL colours available to order.
NOTE: Some dimmable versions may require longer housing to accomodate driver dimensions.
TECHNICAL INFORMATION
| APPLICATION: | Interior Wall |
| LAMP: | Tridonic LLE LED module |
| LAMP LIFE | 50,000 hours |
| CRI: | >80 |
| VOLTAGE | 240V |
| PROTECTION CLASS: | Class 1 |
| PROTECTION RATING: | IP40 |
| DRIVER: | Integrated high-efficiency |
| HOUSING MATERIAL: | Extruded Aluminium |
| MATERIAL FINISH | Textured Powder Coated |
| WEIGHT: | 300mm - 2.5kg | 400mm - 2.9kg | 600mm - 3.7kg | 900mm - 5.4kg |
| LED WARRANTY | 5 years |
LIGHT OUTPUT DETAILS
| Uplighter | ||||
|---|---|---|---|---|
| Length | Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 300mm | 3000K | 13W | 2030lm | 156lm/W |
| 300mm | 4000K | 13W | 2120lm | 163lm/W |
| 400mm | 3000K | 13W | 2030lm | 156lm/W |
| 400mm | 4000K | 13W | 2120lm | 163lm/W |
| 600mm | 3000K | 26W | 4050lm | 156lm/W |
| 600mm | 4000K | 26W | 4240lm | 163lm/W |
| 900mm | 3000K | 39W | 6080lm | 156lm/W |
| 900mm | 4000K | 39W | 6360lm | 163lm/W |
| Up/Downlight | ||||
|---|---|---|---|---|
| Length | Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 400mm | 3000K | 20W | 3043lm | 152lm/W |
| 400mm | 4000K | 20W | 3180lm | 159lm/W |
| 600mm | 3000K | 33W | 5063lm | 153lm/W |
| 600mm | 4000K | 33W | 5300lm | 161lm/W |
| 900mm | 3000K | 52W | 8105lm | 156lm/W |
| 900mm | 4000K | 52W | 8479lm | 163lm/W |
DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| BODY COLOUR | White / Black / Silver / other BS/RAL |
| COL. TEMP | Warm White (3000K) / Neutral White (4000K) |
| POWER SUPPLY | Non-Dimming / Dimmable options |
| DRIVER | Emergency / Non-Emergency |
BUILD YOUR PRODUCT
To generate a variant-specific order code, select an option in each of the following categories.
Range
Housing Colour
Version
Emergency
Power Supply
Product code:
Product Details:
