Sovereign

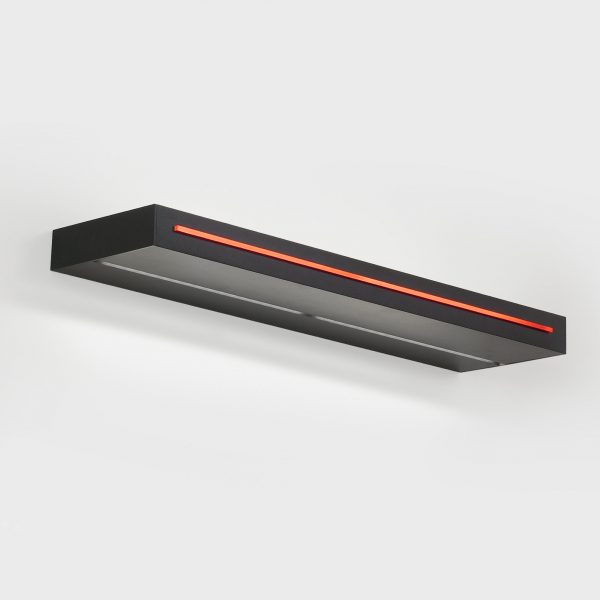

Ecoblade Slot Uplighter 900mm

Wall Mounted Uplighter

Key Features

Light Source

Tridonic LLE LED

Colour Temperature

3000K / 4000K

Mounting

Surface mounting

Application

Interior Wall

Housing

Extruded Aluminium

IP40 - Protected from tools and small wires greater than 1 millimeter. Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing protection. UK Conformity Assessed Made in Britain 5 Year Guarantee

Overview

Cat. No: S18542

An exceptionally high performance range of top quality wall mounted uplighters, specifically designed around the latest high efficiency Tridonic LLE modules, offering superb performance of up to 163lm/W. Available in a range of styles including uplight only or up/downlight. Also available with an illuminated slot in the front facade as an added decorative touch (see Ecoblade Slot S18542 range).

Main housing produced from extruded aluminium with integral passive thermal management. All versions supplied with Nano/Microprism diffuser for optimum light transmission and visual comfort. Finished in textured polyester powder coat with standard finishes in white, black and silver, with other BS/RAL colours available to order.

NOTE: Some dimmable versions may require longer housing to accomodate driver dimensions.

Downloads


OVERVIEW (PDF) >
INSTALLATION GUIDE (PDF) >
TECHNICAL DRAWING (JPG) >
PHOTOMETRY (LDT) >

Dimensions


Technical Details


Housing Specifications


Light Output Details


Uplighter
Length Col Temp. Wattage Lumen Output LED Efficacy
300mm 3000K 13W 2030lm 156lm/W
300mm 4000K 13W 2120lm 163lm/W
400mm 3000K 13W 2030lm 156lm/W
400mm 4000K 13W 2120lm 163lm/W
600mm 3000K 26W 4050lm 156lm/W
600mm 4000K 26W 4240lm 163lm/W
900mm 3000K 39W 6080lm 156lm/W
900mm 4000K 39W 6360lm 163lm/W



Up/Downlight
Length Col Temp. Wattage Lumen Output LED Efficacy
400mm 3000K 20W 3043lm 152lm/W
400mm 4000K 20W 3180lm 159lm/W
600mm 3000K 33W 5063lm 153lm/W
600mm 4000K 33W 5300lm 161lm/W
900mm 3000K 52W 8105lm 156lm/W
900mm 4000K 52W 8479lm 163lm/W
