Linear Angled ALA

Linear System

Cat no. ALA

The Sovereign Linear Angled profile is ideal for corner applications, providing a 45º illumination, mounted with supplied plastic or metal mounting clips for a simple and clean solution. Can be supplied as simple straight linear profiles in a length of your choice, or designed to wrap around corners of any angle for more architectural solutions. This surface linear system combines a quality aluminium profile with a range of fixed white and colour LED tapes, as well as CCT and variable RGB options  up to 12mm wide and 14.4W/mtr (higher for variable tapes). It is available with a choice of three different quality UV resistant, snap-in diffusers; frosted, semi-frosted and clear. The fully frosted diffuser transforms the individual LEDs into a smooth, soft illumination. Easily installed with plastic or metal mounting clips.

Supplied in anodised silver as standard, the aluminium profile is available in any BS/RAL colour, and can even be wrapped in a scratch-resistant foil to imitate a range of wood finishes. Our range of drivers and dimmable options cater for all solutions; from simple on/off control to full colour-changing DMX systems. See below for a selection of Linear System options.

TECHNICAL INFORMATION

Range Name:Sovereign Slimline Angled
Range No.ALA
Application:Surface interior corner / edge
Profile materialExtruded Aluminium
Material finish:Anodised
Installation:Mounts directly with mounting clips (provided)
Accessories:Supplied with End Caps

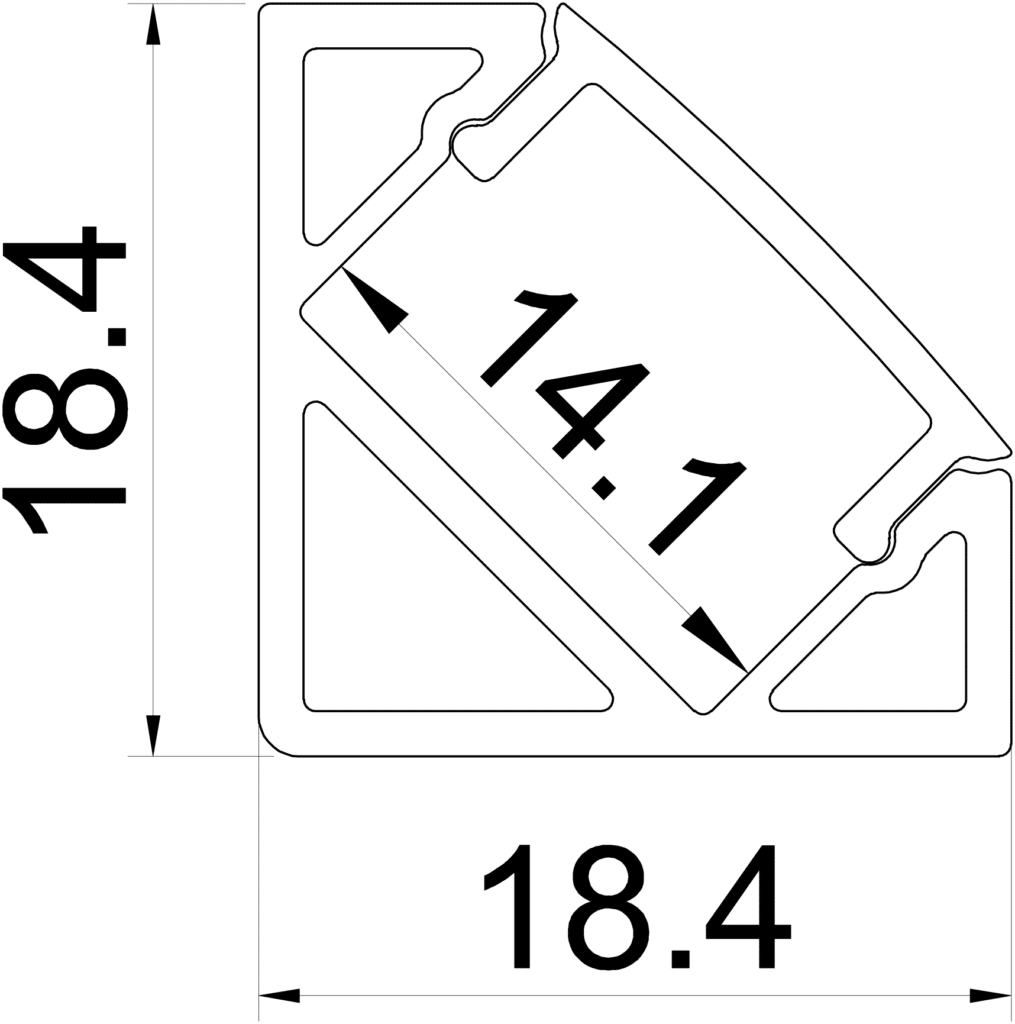

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Length:Any length (joins every 2mtrs)
Angle:Precision cut angles if required
Light OutputCountless output options of fixed and variable White, RGB and RGBW
Wattage:Numerous options up to 14.4W/mtr
Profile Colour:Silver Anodised as standard. Powder coating available
Diffuser:Clear / Semi-frosted / Frosted
Protection RatingIP67 (potted) available up to 2mtrs
Lighting Control:on/off / DALI / DMX / Wireless

Build Your Linear System

To ensure each system is built and installed to our exacting standards, Commercial Lighting does all the hard work for you. Not only do we design and assemble each individual linear system in our factory, we make sure the most appropriate profile, light source and drivers are chosen for your project.

Below is a selection of our most popular light source options for this profile. Our experienced Sales team are happy to help you choose the best selection for your lighting solution.

LIGHT SOURCE OPTIONS

Variable Options
CAT NO. WATTAGE COL. TEMP VOLTAGE LEDS/mtr DATASHEET
S18350A 19.2W/mtr 2500-7000K 24V DC 120 LEDs DOWNLOAD
S18353A 19.2W/mtr RGB + Amber 24V DC 60 LEDs DOWNLOAD
S18353P 19.2W/mtr RGB + 6000K 24V DC 60 LEDs DOWNLOAD
S18353N 19.2W/mtr RGB + 4000K 24V DC 60 LEDs DOWNLOAD
S18353W 19.2W/mtr RGB + 2500K 24V DC 60 LEDs DOWNLOAD
S18353 14.4W/mtr RGB 12V DC 60 LEDs DOWNLOAD

Fixed White Options
CAT NO. WATTAGE COL. TEMP LUMEN OUTPUT VOLTAGE LEDS/mtr DATASHEET
S18350UL 4.8W/mtr 3000-3500K 360lm/mtr 12V DC 60 LEDs DOWNLOAD
S18350L 7.2W/mtr 3000-3500K 540lm/mtr 12V DC 30 LEDs DOWNLOAD
S18350W 14.4W/mtr 2700K 1000lm/mtr 12V DC 60 LEDs DOWNLOAD
S18350 14.4W/mtr 2800-3200K 1050lm/mtr 12V DC 60 LEDs DOWNLOAD
S18350N 14.4W/mtr 4000-4500K 1100lm/mtr 12V DC 60 LEDs DOWNLOAD
S18351 14.4W/mtr 5500-6500K 1150lm/mtr 12V DC 60 LEDs DOWNLOAD
S18352 14.4W/mtr 6500-7500K 1200lm/mtr 12V DC 60 LEDs DOWNLOAD

Fixed Colour Options
CAT NO. WATTAGE COL. TEMP VOLTAGE LEDS/mtr DATASHEET
S18360 14.4W/mtr Blue (465-470nm) 12V DC 60 LEDs DOWNLOAD
S18361 14.4W/mtr Amber (590nm) 12V DC 60 LEDs DOWNLOAD
S18362 14.4Wmtr Red (620-625nm) 12V DC 60 LEDs DOWNLOAD
S18363 14.4W/mtr Green 520-525nm 12V DC 60 LEDs DOWNLOAD

CONTROLLERS

We offer a wide range of options for dimming and colour control - from wall-mounted fixtures and hand-held remotes to wireless apps for SMART devices.  Talk to our Sales team to find out the best choices for your linear system.

DMX Wall Control Panel

Catalogue no.:  98095/DMX

Wall Mounted Adjustable Colour Changer

Catalogue no.:  98095/CCTW

Adjustable Colour Controller with Hand Remote

Catalogue no.:  98095/CCTR
