Linear Twist
Linear System
Cat no. S18397

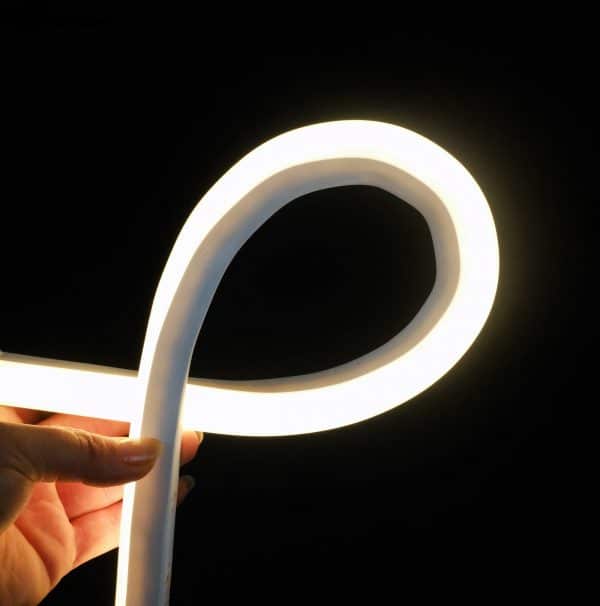

The Sovereign Linear Twist is a fully malleable linear system. Simultaneously bendable horizontally and vertically, this is one of the most flexible systems on the market. Housed in a IP67 rated enclosure, the Sovereign Linear Twist can be used for both interior and exterior applications. A perfect replacement for neon tube lighting, building and signage illumination, bathroom lighting, cove and general lighting.
Available in any length up to 20 metres, with lengths over 10m supplied with feed from both ends. Mounted in profile lengths with mounting clips. Available in a range of colour temperatures.
TECHNICAL INFORMATION
| Range Name: | Sovereign Linear Twist |
| Range No. | S18397 |
| Application: | Interior / Exterior applications |
| Light Source | 2835 LED module |
| Protection Type: | IP67 |
| Colour Rendering (CRI) | RA>80 |
| Profile material | Diffused silicon lens |
| Installation: | Mounts using additional profile sections with mounting clips |
| Supply Voltage | 24V DC |
| Max length | 20m (lengths above 10m fed both ends) |
DOWNLOADS
LIGHT OUTPUT DETAILS
| COL. TEMP | WATTAGE | CCT RANGE | LUMEN OUTPUT |
| 2700K | 12W/m | 2600~2800K | 500lm |
| 3000K | 12W/m | 2850~3150K | 550lm |
| 4000K | 12W/m | 3830~4170K | 550lm |
| 5000K | 12W/m | 4750~5250K | 550lm |
| 6500K | 12W/m | 6150~6850K | 550lm |
DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Length: | Any length up to 20mtrs |
| Col Temp: | 2700K / 3000K /4000K / 5000K |
| Lighting Control: | on/off / DALI / DMX / Wireless |
| Accessories | Profile lengths and mounting clips for installation |
BUILD YOUR PRODUCT
To generate a variant-specific order code, select an option in each of the following categories.
Range
COLOUR TEMPERATURE
Length
Mains Feed
Product code:
Product Details:
