Meyer

Metaspot 3

Floodlight

Key Features

Light Source

LED

Colour Temperature

2700K / 3000K / RGBW (3000K)

Mounting

Surface / Pole

Application

Exterior floodlighting

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. IP65 - Protected from total dust ingress. Protected from low-pressure water jets from any direction. Ingress Protection - IK08 Product is certified according to European standards

Overview

Cat. No: M8243

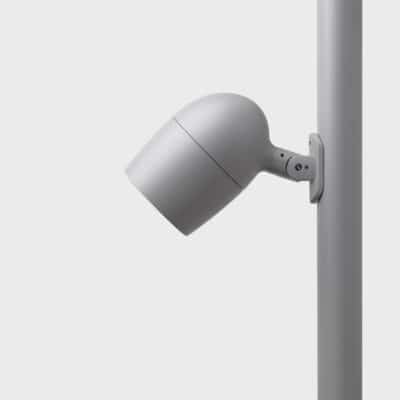

The new floodlight series Metaspot combines exemplary design with innovative optics. The elliptical shape of the luminaires harmonizes especially well with landscape architecture. For Metaspot a pole-top fitter with an integral Zhaga-18 interface is available as an accessory. By the use of an antenna, up to 4 luminaires on one pole can be controlled and monitored individually. In addition to pole luminaires, there are versions for surface mounting.

For more information, please visit Meyer





Downloads


Range Overview (PDF) >

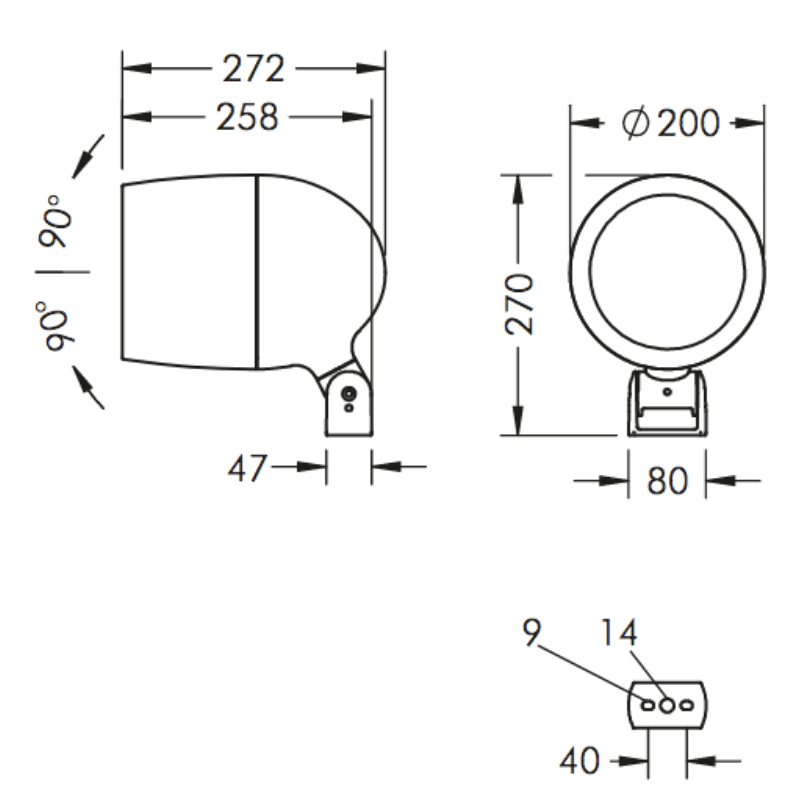

Dimensions


Technical Details


Housing Specifications


Light Output Details


Beam Col Temp. Wattage Lumen Output
Narrow 8º 3000K 67W 5653lm
Vertical linear 36º / 9º 3000K 67W 4899lm
Rotatable Linear 36º / 9º 3000K 67W 4427lm
Medium Wide 31º 3000K 67W 5641lm
Wide 55º 3000K 67W 5631lm
Street Optic 41º / 146º 3000K 67W 5462lm
