Home / Meyer / Architectural Floodlight / Metaspot Gobo
Meyer

Metaspot Gobo

Floodlight

Key Features

Light Source

LED

Colour Temperature

3000K / 6500K

Mounting

Surface / Pole

Application

Gobo projection

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. IP65 - Protected from total dust ingress. Protected from low-pressure water jets from any direction. Ingress Protection - IK08 Product is certified according to European standards

Overview

Cat. No: M8244

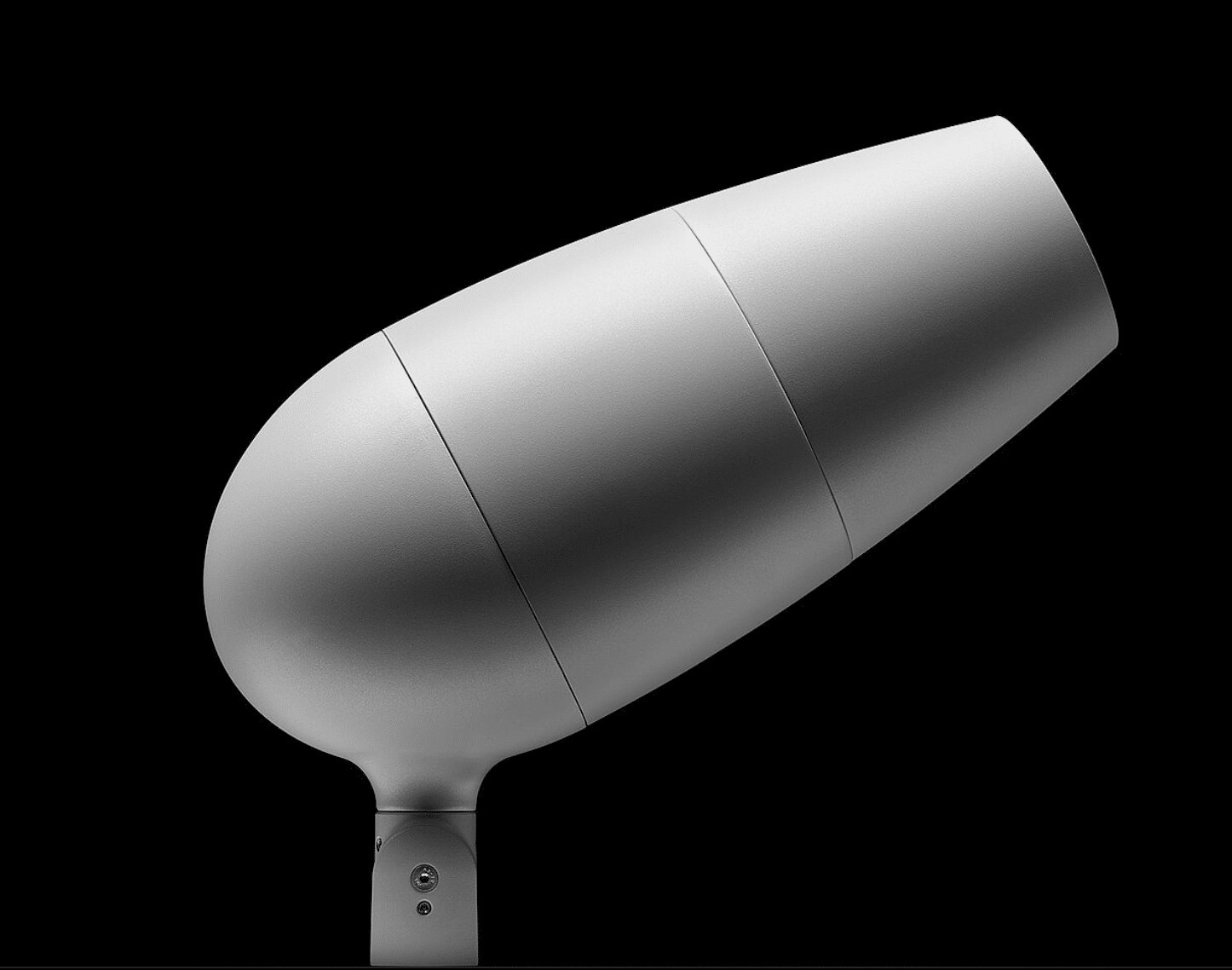

The new floodlight series Metaspot combines exemplary design with innovative optics. The elliptical shape of the luminaires harmonizes especially well with landscape architecture. The new Darkring optics are a breakthrough development for effective glare control. For Metaspot a pole-top fitter with an integral Zhaga-18 interface is available as an accessory. By the use of an antenna, up to 4 luminaires on one pole can be controlled and monitored individually. In addition to pole luminaires, there are versions for surface mounting.

For more info, please visit Meyer.





Downloads


Range Overview (PDF) >

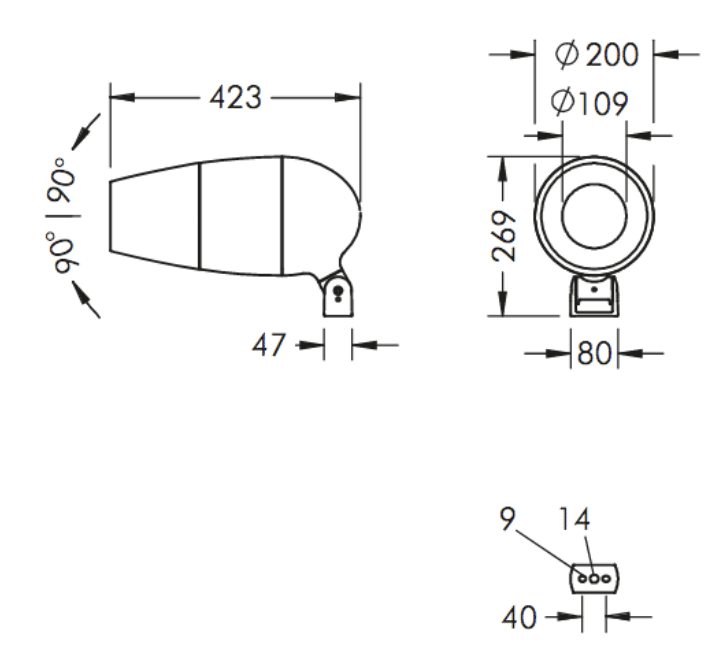

Dimensions


Technical Details


Housing Specifications


Light Output Details


Focal Length
Col Temp. Wattage Lumen Output
45mm 6500K 49W 1535lm
45mm 3000K 49W 1401lm
63mm 6500K 49W 1127lm
63mm 3000K 49W 1029lm
85mm 6500K 49W 1496lm
85mm 3000K 49W 1362lm
150mm 6500K 49W 1702lm
