Metaspot 3 Pole
Pole Mounted Floodlight
Light Source
LED
Colour Temperature
2700K / 3000K / RGBW (3000K)
Mounting
with pole mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 4
Overview
Cat. No: M8243
The new floodlight series Metaspot combines exemplary design with innovative optics. The elliptical shape of the luminaires harmonizes especially well with landscape architecture. The new Darkring optics are a breakthrough development for effective glare control. For Metaspot a pole-top fitter with an integral Zhaga-18 interface is available as an accessory. By the use of an antenna, up to 4 luminaires on one pole can be controlled and monitored individually. In addition to pole luminaires, there are versions for surface mounting.
For more information, please visit Meyer
Downloads
| Range Overview (PDF) | > |

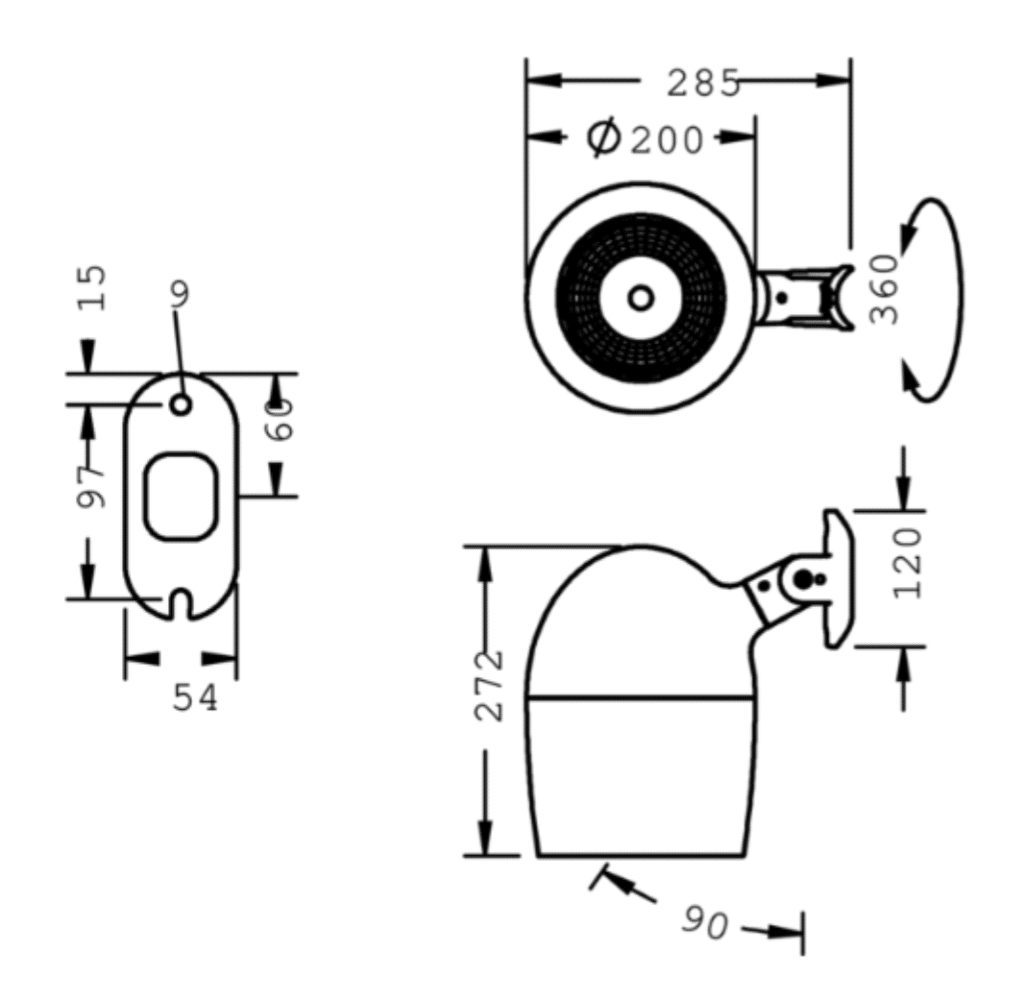

Dimensions
Technical Details
| Lamp: | LED |
| Power | 35W |
| Lamp Life: | 50,000 hours |
| Protection type: | IP65 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø201mm x W272mm |
| Weight | 5KG |
| Mounting | with pole mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow 8º | 3000K | 67W | 5653lm |
| Vertical linear 36º / 9º | 3000K | 67W | 4899lm |
| Rotatable Linear 36º / 9º | 3000K | 67W | 4427lm |
| Medium Wide 31º | 3000K | 67W | 5641lm |
| Wide 55º | 3000K | 67W | 5631lm |
| Street Optic 41º / 146º | 3000K | 67W | 5462lm |
