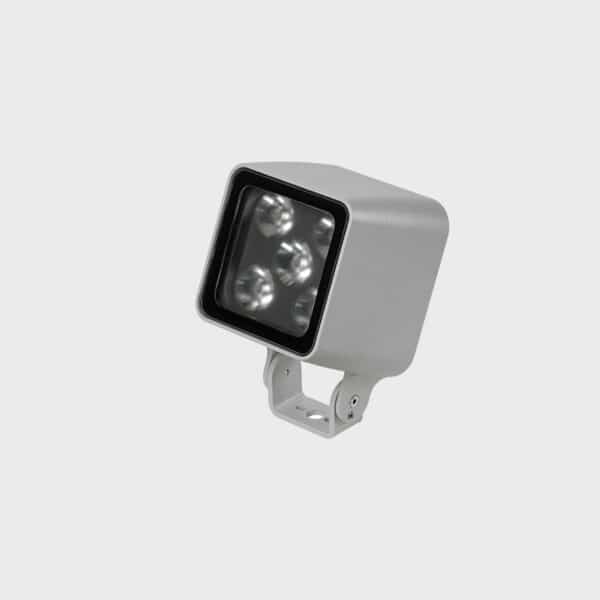

Monoflood 2

Floodlight

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

with mounting bracket

Application

Exterior floodlighting

Housing

Die-cast aluminium

Enquire Build your product

Enquire

1 / 6

Overview

Cat. No: M8202

Monoflood is a new floodlight series with precise beam control and minimalist design. The luminaires are available in four sizes and wattages. With a wide choice of different reflectors and lens optics they can be used for various different illumination tasks. The scope of applications includes uniform area lighting and accent lighting of façade details.

Downloads

Range Overview (PDF)

>

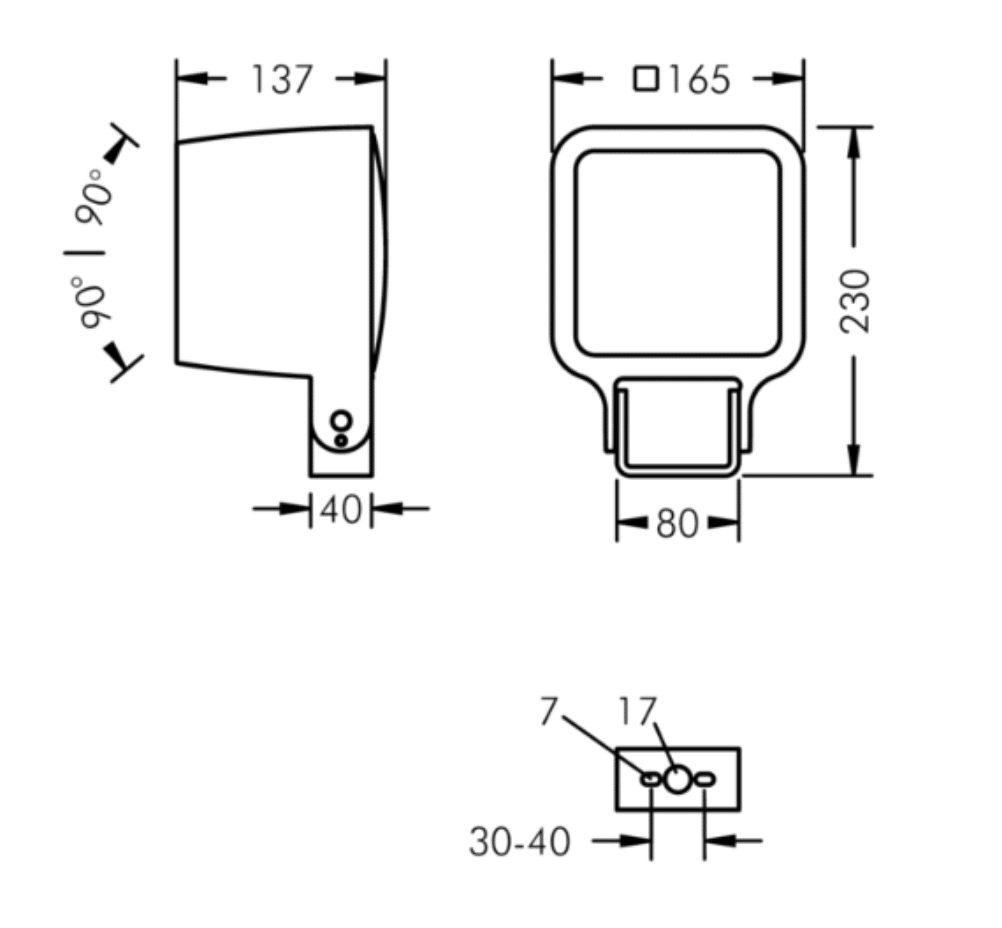

Dimensions

Technical Details

Lamp:	LED
Power	27W
Lamp Life:	50,000 hours
Colour Rendering Index	CRI > 80
Protection type:	IP67
Protection Class:	Class 1
Impact Resistance:	IK08
Tilt Range:	180º

Housing Specifications

Housing Material	Die-cast Aluminium
Finish	Powder Coated
Optics	Tempered anti-reflective glass
Dimensions	L165 x H137 x W165mm
Weight	3KG
Mounting	with mounting bracket

Light Output Details

Beam	Col Temp.	Wattage	Lumen Output
Narrow 5º	3000K	27W	515lm
Narrow 5º	4000K	27W	541lm
Medium Wide 35º	3000K	27W	1375lm
Medium Wide 35º	4000K	27W	1444lm
Street Optic 51º / 121º	3000K	27W	2875lm
Street Optic 51º / 121º	4000K	27W	3019lm
Linear, vertical / horizontal 40º /9º	3000K	27W	1516lm
Linear, vertical / horizontal 40º / 9º	4000K	27W	1592lm
Linear Rotatable 9º / 40º	3000K	25W	1364lm
Linear Rotatable 9º / 40º	4000K	25W	1432lm
Axially symmetrical Wide 88º / 89º	3000K	27W	3009lm
Axially symmetrical Wide 88º / 89º	4000K	27W	3159lm
Axially symmetrical Narrow 55º / 86º	3000K	28W	2884lm
Axially symmetrical Narrow 55º / 86º	4000K	28W	3028lm
