Meyer
Monoflood 2 Pole
Pole Mounted Floodlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
with pole mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 3
Overview
Cat. No: M8202
Monoflood is a new floodlight series with precise beam control and minimalist design. The luminaires are available in four sizes and wattages. With a wide choice of different reflectors and lens optics they can be used for various different illumination tasks. The scope of applications includes uniform area lighting and accent lighting of façade details.
Downloads
| Range Overview (PDF) | > |

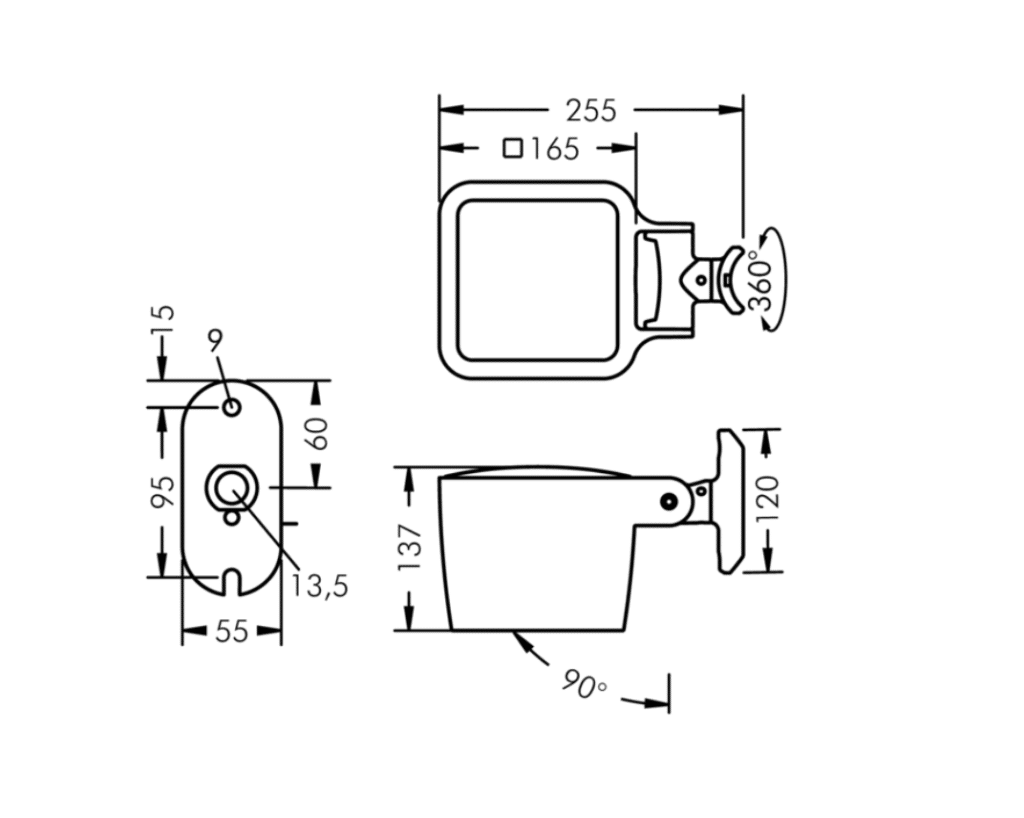

Dimensions
Technical Details
| Lamp: | LED |
| Power | 27W |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | L165 x H137 x W165mm |
| Weight | 3KG |
| Mounting | with pole mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 27W | 515lm |
| Narrow | 4000K | 27W | 541lm |
| Medium Wide | 3000K | 27W | 1375lm |
| Medium Wide | 4000K | 27W | 1444lm |
| Street Optic | 3000K | 27W | 2875lm |
| Street Optic | 4000K | 27W | 3019lm |
| Linear, vertical / horizontal | 3000K | 27W | 1516lm |
| Linear, vertical / horizontal | 4000K | 27W | 1592lm |
| Axially symmetrical Wide | 3000K | 27W | 3009lm |
| Axially symmetrical Wide | 4000K | 27W | 3159lm |
