Meyer
Monoflood 1
Floodlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
with mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 6
Overview
Cat. No: M8201
Monoflood is a new floodlight series with precise beam control and minimalist design. The luminaires are available in four sizes and wattages. With a wide choice of different reflectors and lens optics they can be used for various different illumination tasks. The scope of applications includes uniform area lighting and accent lighting of façade details.
Downloads
| Range Overview (PDF) | > |

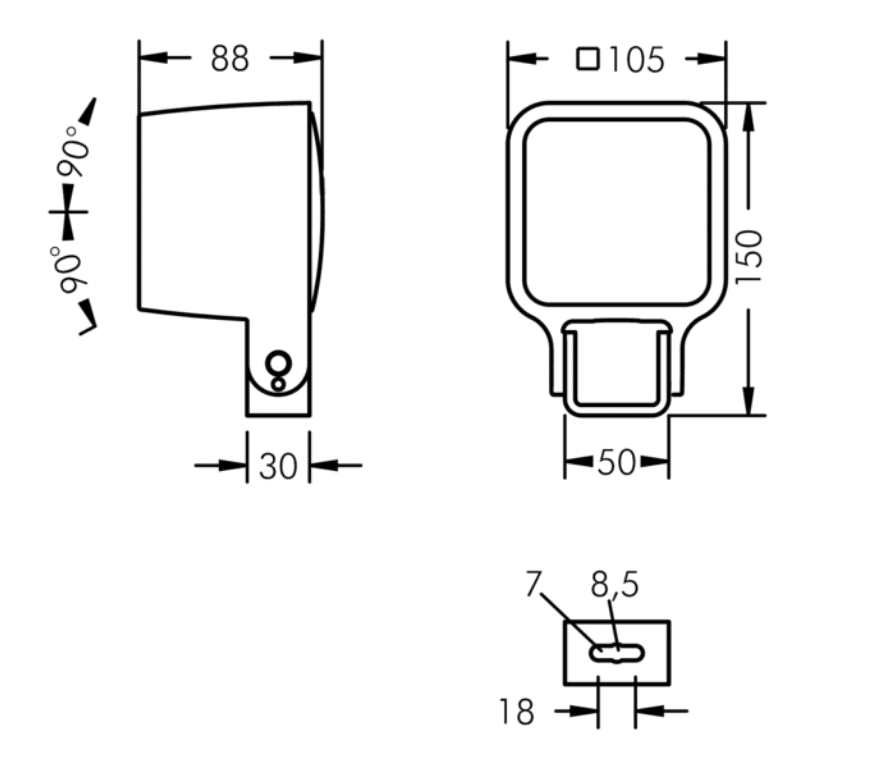

Dimensions
Technical Details
| Lamp: | LED |
| Power | 10W |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | L105 x H88 x W105mm |
| Weight | 1.2KG |
| Mounting | with mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow 4º | 3000K | 10W | 515lm |
| Narrow 4º | 4000K | 10W | 541lm |
| Medium Wide 27º | 3000K | 10W | 476lm |
| Medium Wide 27º | 4000K | 10W | 501lm |
| Asymmetrical Wide 53º / 115º | 3000K | 10W | 679lm |
| Asymmetrical Wide 53º / 115º | 4000K | 10W | 713lm |
| Linear, vertical / horizontal 29º / 6º | 3000K | 9W | 679lm |
| Linear, vertical / horizontal 29º / 6º | 4000K | 9W | 713lm |
| Axially symmetrical Wide 85º / 83º | 3000K | 14W | 1437lm |
| Axially symmetrical Wide 85º / 83º | 4000K | 14W | 1509lm |
