Sovereign

Narrow Surface AL7

Linear Profile & LED Tape package

Key Features

Light Source

LED tape

Colour Temperature

2700K, 3000K, 4000K, CCT & RGB

Mounting

Surface mounting with clips

Application

Interior linear lighting

Housing

Extruded Aluminium in custom lengths

UK Conformity Assessed Resistant to dust or objects that are over 12mm in size. Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing protection. Made in Britain 5 Year Guarantee

Overview

Cat no. AL7

The Sovereign Tape and Profile systems represent the pinnacle of customization among our lighting solutions. Each of the various Sovereign aluminium profiles is designed to support a multitude of LED tape options, offering choices in correlated colour temperature (CCT) and variable RGB configurations, in addition to fixed white light at various color temperatures and outputs. A wide selection of controllers is available to maximize the functionality of your selected tape, ensuring that your lighting system remains adaptable even post-installation.

Beyond mere linear lighting, our systems can be cut and configured into complex designs that provide continuous illumination, creating striking and architectural shapes.

The Sovereign Narrow Surface profile and tape package represents our most sought-after and adaptable linear lighting system. It is ideally suited for general illumination and architectural accents in various settings, including kitchens, offices, hospitality venues, retail spaces, residences, libraries, hallways, and bathrooms/vanities. This surface-mounted linear system features a high-quality aluminum profile paired with a selection of fixed white LED tapes, along with options for CCT and variable RGB lighting. Customers can choose from three types of UV-resistant, snap-in diffusers: frosted, semi-frosted, and clear. The fully frosted diffuser effectively blends the individual LEDs, creating a smooth and gentle illumination.

Our assortment of drivers and dimmable options accommodates a wide range of solutions, from basic on/off controls to comprehensive color-changing DMX systems. After selecting your preferred profile and LED tape combination, please reach out to discuss available lighting control options.

Downloads


OVERVIEW (PDF) >
Linear Systems Brochure (PDF) >

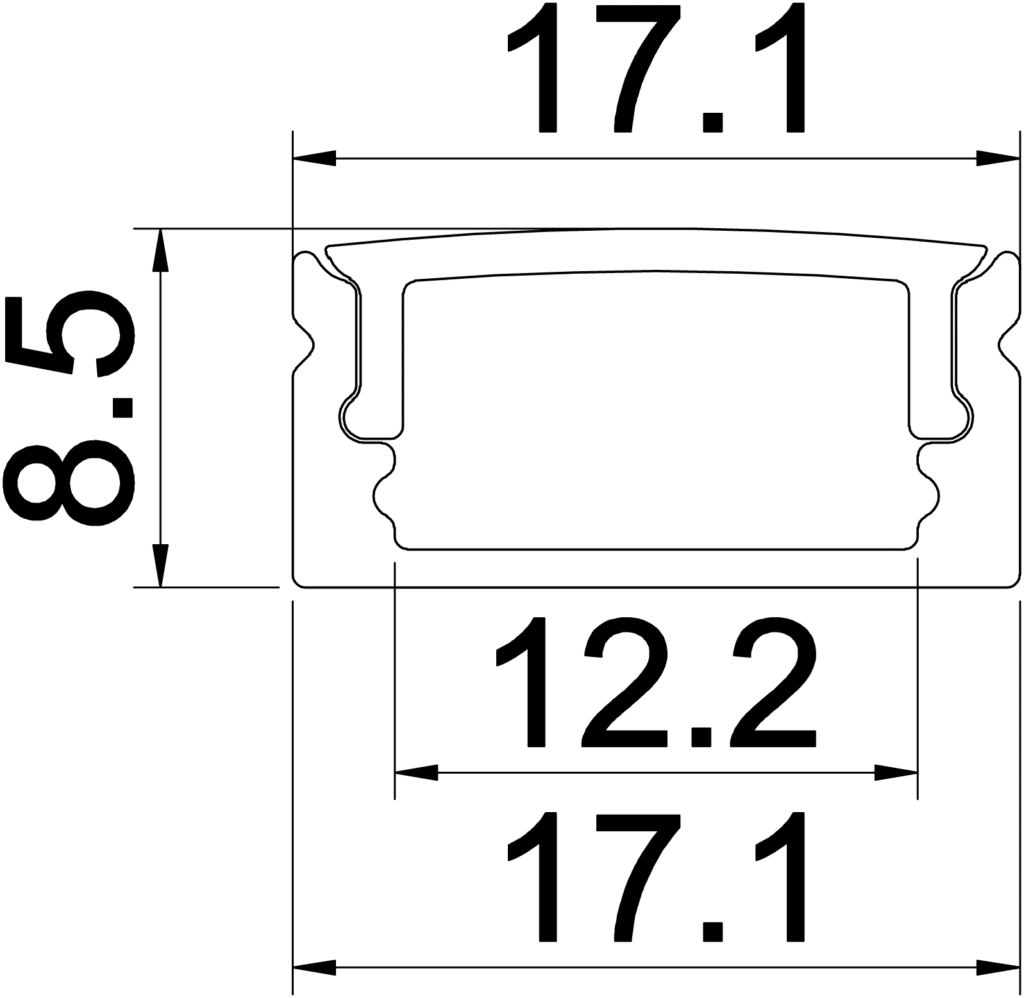

Dimensions


Technical Details


Housing Specifications


Light Output Details


Variable Light

Part No.
Col. Temp Power LEDs/mtr
S18350A CCT (2500-7000K) 19.2W/mtr 120 LEDs
S18353A RGB + Amber 19.2W/mtr 120 LEDs
S18353P RGB + 6000K 19.2W/mtr 120 LEDs
S18353N RGB + 4000K 19.2W/mtr 120 LEDs
S18353W RGB + 2700K 19.2W/mtr 120 LEDs
S18353/24 RGB 14.4W/mtr 120 LEDs



Fixed White

Part No.
Col. Temp Power Lumens
LEDs/mtr
S18350UL/24 3000-3500K 4.8W/mtr 360lm/mtr 60 LEDs
S18350L/24 3000-35000K 7.2W/mtr 540lm/mtr 30 LEDs
S18350W/24 2700K 14.4W/mtr 1000lm/mtr 60 LEDs
S18350/24 2800-3200K 14.4W/mtr 1050lm/mtr 60 LEDs
S18350N/24 4000-4500K 14.4W/mtr 1100lm/mtr 60 LEDs

Build Your Product

Light Source

X
X
X
X
X
X
X
X
X
X
X

Length

X
X
X

Profile

X

Diffuser

X
X
X

Product code:
Product details:

Enquire about this product
