Home / Sovereign / Profile & Tape Systems / Narrow High Output AL17
Sovereign

Narrow High Output AL17

Linear Profile & LED Tape package

Key Features

Light Source

LED tape

Colour Temperature

2700K, 3000K, 4000K, CCT & RGB

Mounting

Surface mounting with clips

Application

Interior linear lighting

Housing

Extruded Aluminium in custom lengths

UK Conformity Assessed Resistant to dust or objects that are over 12mm in size. Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing protection. Made in Britain 5 Year Guarantee

Overview

Cat no. AL17

The Sovereign Tape and Profile systems represent the pinnacle of customization among our lighting solutions. Each of the various Sovereign aluminium profiles is designed to support a multitude of LED tape options, offering choices in correlated colour temperature (CCT) and variable RGB configurations, in addition to fixed white light at various color temperatures and outputs. A wide selection of controllers is available to maximize the functionality of your selected tape, ensuring that your lighting system remains adaptable even post-installation.

Beyond mere linear lighting, our systems can be cut and configured into complex designs that provide continuous illumination, creating striking and architectural shapes.

The Sovereign Narrow High Output profile and tape package is designed to provide the necessary heatsinking technology for our higher output linear options.  Perfect for general illumination and architectural accent for kitchens, offices, hospitality, retail, residences, libraries, hallways and bath/vanity, where space allows for this extra depth. This surface linear system combines a quality aluminium profile with a range of fixed white LED tapes, as well as CCT and variable RGB options. Available with a choice of three different quality UV resistant, snap-in diffusers; frosted, semi-frosted and clear. The fully frosted diffuser transforms the individual LEDs into a smooth, soft illumination.Our range of drivers and dimmable options cater for all solutions; from simple on/off control to full colour-changing DMX systems. Get in touch discuss lighting control options.

Downloads


OVERVIEW (PDF) >
Linear Systems Brochure (PDF) >

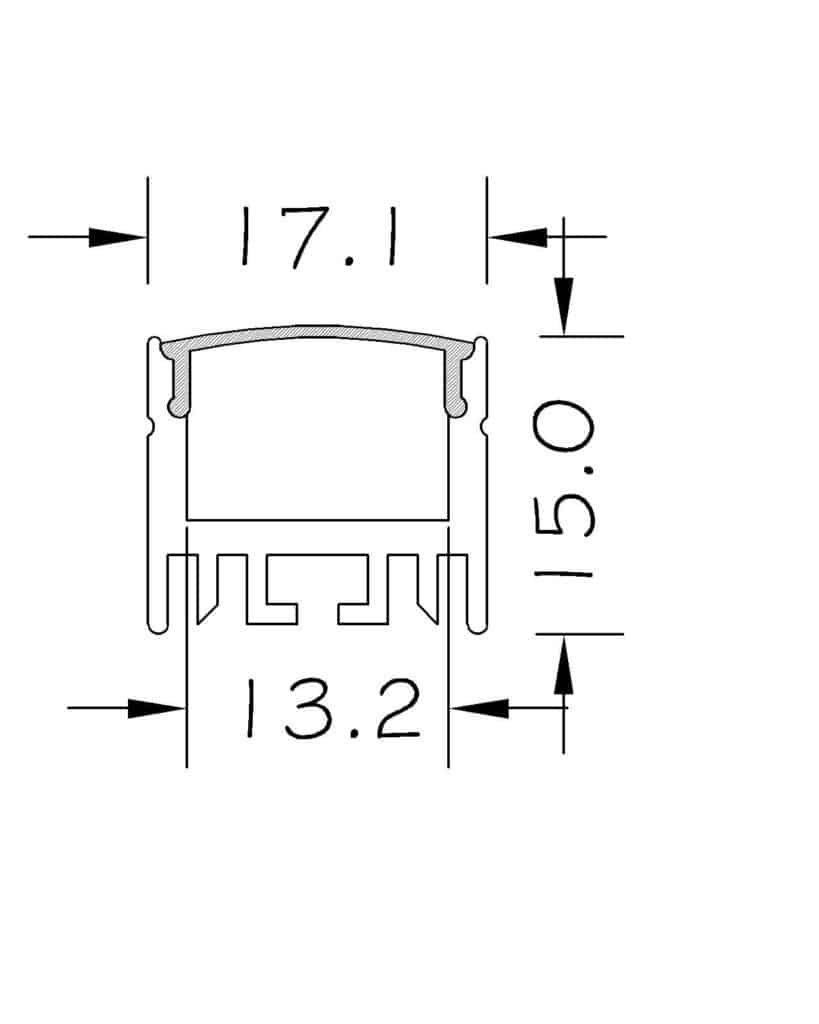

Dimensions


Technical Details


Housing Specifications


Light Output Details


Variable Light

Part No.
Col. Temp Power LEDs/mtr
S18350A CCT (2500-7000K) 19.2W/mtr 120 LEDs
S18353A RGB + Amber 19.2W/mtr 120 LEDs
S18353P RGB + 6000K 19.2W/mtr 120 LEDs
S18353N RGB + 4000K 19.2W/mtr 120 LEDs
S18353W RGB + 2700K 19.2W/mtr 120 LEDs
S18353/24 RGB 14.4W/mtr 120 LEDs



Fixed White



Part No.
Col. Temp Power Lumens
LEDs/mtr
S18350UL/24 3000-3500K 4.8W/mtr 360lm/mtr 60 LEDs
S18350L/24 3000-35000K 7.2W/mtr 540lm/mtr 30 LEDs
S18350W/24 2700K 14.4W/mtr 1000lm/mtr 60 LEDs
S18350/24 2800-3200K 14.4W/mtr 1050lm/mtr 60 LEDs
S18350N/24 4000-4500K 14.4W/mtr 1100lm/mtr 60 LEDs
S18350X 3000K 22W/mtr 2300lm/mtr 126 LEDs
S18350NX 4000K 22W/mtr 2400lm/mtr 126 LEDs
