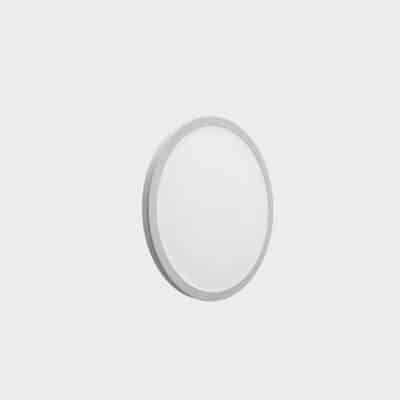

Round Surface Panel 405mm
Surface Mounted LED Panel
Light Source
Side Emitting SMD
Colour Temperature
3000K / 4000K
Mounting
Surface mounting
Application
Interior ceiling / wall
Housing
Spun aluminium
1 / 2
Overview
Cat. No: S18636
Taking the successful LED Panel concept to an exciting new level, these exceptionally slim circular units provide high levels of illumination with a pleasingly soft appearance. With its minimally elegant design, the Round Surface Mounted Panels offer a discrete yet distinctive solution for both ceiling downlighting and as wall mounted luminaires.
The Round Panel is also available as a stunningly thin wire-suspended option, and as a recessed unit. Supplied complete with standard high efficiency driver, but can also be specified with dimmable drivers to suit any dimming protocol. EM versions also available, with all components located within the spun aluminium rear gear housing for ease of installation.
Downloads
| OVERVIEW (PDF) | > |
| TECHNICAL DRAWING (JPG) | > |
| PHOTOMETRY (LDT) | > |
Dimensions
Technical Details
| Lamp: | Side Emitting SMD LED |
| Lamp Life: | 50,000 hours |
| Wattage: | 30W |
| Lumens: | 90lm/W |
| Colour Temp: | 3000K / 4000K |
| CRI: | >90 |
| Voltage: | 240V |
| Protection Class: | Class 1 |
| Protection Rating: | IP40 |
| Driver: | Integrated high efficiency |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Spun Aluminium |
| Finish | Powder Coated |
| Optics | Opal diffuser |
| Dimensions | Ø405mm x 47mm |
| Weight | 3.5KG |
| Mounting | Surface mounting |
Light Output Details
| Size | Col. Temp | Wattage | Luminous Flux | LED Efficacy |
| Size 0 (300mm) | 3000K | 20W | 2000lm | 100lm/W |
| Size 0 (300mm) | 4000K | 20W | 2200lm | 110lm/W |
| Size 1 (405mm) | 3000K | 30W | 2500lm | 83lm/W |
| Size 1 (405mm) | 4000K | 30W | 2700lm | 90lm/W |
| Size 2 (493mm) | 3000K | 40W | 3600lm | 90lm/W |
| Size 2 (493mm) | 4000K | 40W | 3800lm | 95lm/W |
| Size 3 (600mm) | 3000K | 48W | 4500lm | 94lm/W |
| Size 3 (600mm) | 4000K | 48W | 4800lm | 100lm/W |
Build Your Product
Versions
Housing Colour
Colour temp
Emergency
Power Supply
Product code:
Product details:

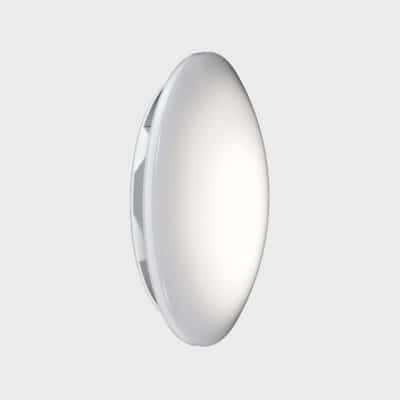

Related products
