Home / Cariboni / Large Area Floodlights / Newton 2.0 H585mm
Cariboni

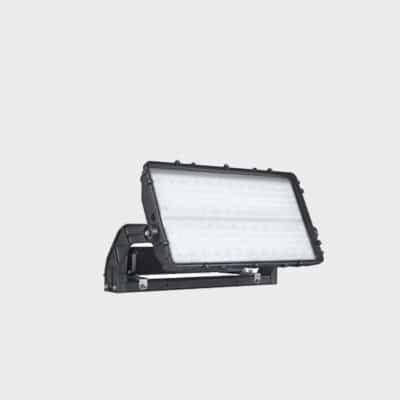

Newton 2.0 H585mm

Floodlight

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Surface mounting

Application

Exterior Ceiling

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. Ingress Protection - IK08 Product is certified according to European standards

Overview

A complete range of high-performance floodlights. Available in four sizes, the system offers a range of fluxes and a combination of optics that makes it suitable for lighting sports facilities, large outdoor areas and perimeter areas.

The Newton 2.0 line includes four sizes and can be fixed to the wall, ceiling or pole by means of the bracket in painted steel (x-small, small, medium sizes) or in AISI 304 stainless steel (large size).

For more info including ordering codes, please visit the Cariboni Product Page







Downloads


Product Overview (PDF >
Cariboni Floodlights Brochure (PDF) >

Dimensions




Technical Details


Housing Specifications


Light Output Details


LED R6
Col Temp. Wattage Lumen Output
3000K 179W 26380lm
4000K 179W 27770lm
3000K 196W 28660lm
4000K 196W 30170lm
3000K 215W 30675lm
4000K 215W 32490lm
3000K 237W 32730lm
4000K 237W 34670lm
3000K 257W 34750lm
4000K 257W 36800lm
3000K 274W 36725lm
4000K 274W 38900lm
3000K 295W 38515lm
4000K 295W 40790lm
3000K 315W 40260lm
4000K 315W 42640lm



LED R8
Col Temp. Wattage Lumen Output
3000K 261W 37980lm
4000K 261W 40230lm
3000K 287W 40970lm
4000K 287W 43390lm
3000K 310W 43715lm
4000K 310W 46300lm
3000K 336W 46410lm
4000K 336W 49150lm
3000K 362W 49055lm
4000K 362W 51960lm
3000K 389W 51455lm
4000K 389W 54500lm
3000K 416W 53790lm
4000K 416W 56970lm
3000K 443W 56100lm
4000K 443W 59410lm
3000K 471W 58325lm
4000K 471W 61770lm
3000K 498W 60475lm
4000K 498W 64050lm









Build Your Product


Product code:
Product details:

Enquire about this product
