Cariboni
Theama R24
Floodlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Aluminium brackets
Application
Sports / Outdoor Floodlight
Housing
Die-cast aluminium
1 / 4
Overview
Theama combines compactness, lightness and performance. Versatile, simple and quick to install, it can be equipped with a range of optics suitable for sports lighting and large surface horizontal and vertical surfaces.
For more info including ordering codes, please visit the Cariboni Product Page
Downloads
| Product Overview (PDF) | > |
| Cariboni Floodlight Brochure (PDF) | > |

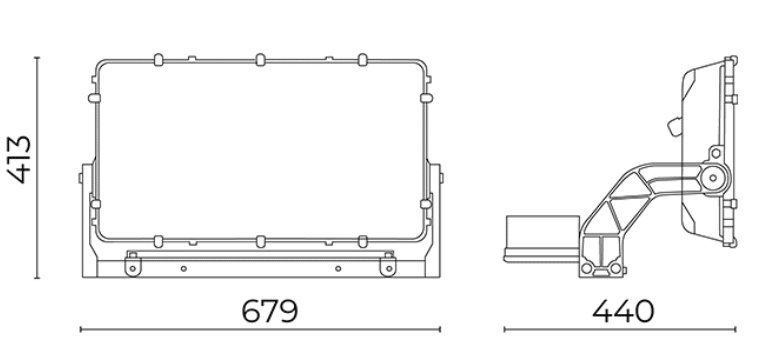

Dimensions
Technical Details
| Lamp: | LED |
| Driver lifetime: | 100.000h @Ta 25°C |
| Wattage: | 489W - 1100W |
| Beam: | LT-63 Asymmetric beam |
| Protection type: | IP66 |
| Protection Class: | Class I |
| Impact Resistance: | IK09 |
| CRI | >70 |
| Marks and Certifications: | ENEC / CE |
| Tilt: | -180° +180° |
Housing Specifications
| Housing Material | Die-cast aluminium alloy UNI EN AB 44300 |
| Finish | Phospho-chromatation treated & polyester powder-coated |
| Optics | High-transparency PMMA |
| Dimensions | H413mm |
| Weight | 21KG |
| Mounting | Aluminium brackets |
Light Output Details
| Col Temp. | Wattage | Lumen Output |
| 4000K | 489W | 82450lm |
| 4000K | 640W | 103005lm |
| 4000K | 717W | 112800lm |
| 4000K | 795W | 122270lm |
| 4000K | 864W | 131415lm |
| 4000K | 942W | 140235lm |
| 4000K | 1021W | 148730lm |
| 4000K | 1100W | 156900lm |
