Home / Cariboni / Large Area Floodlights / Newton 2.0 H314mm

Cariboni

Newton 2.0 H314mm

Floodlight

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Steel bracket

Application

Exterior Floodlighting

Housing

Die-cast aluminium

Enquire Build your product

Enquire

Build your product

1 / 5

Overview

A complete range of high-performance floodlights. Available in four sizes, the system offers a range of fluxes and a combination of optics that makes it suitable for lighting sports facilities, large outdoor areas and perimeter areas.

The Newton 2.0 line includes four sizes, this being the smallest, and can be fixed to the wall, ceiling or pole by means of the bracket in painted steel.

For more info including ordering codes, please visit the Cariboni Product Page

Downloads

Product Overview (PDF)	>
Cariboni Floodlights Brochure (PDF)	>

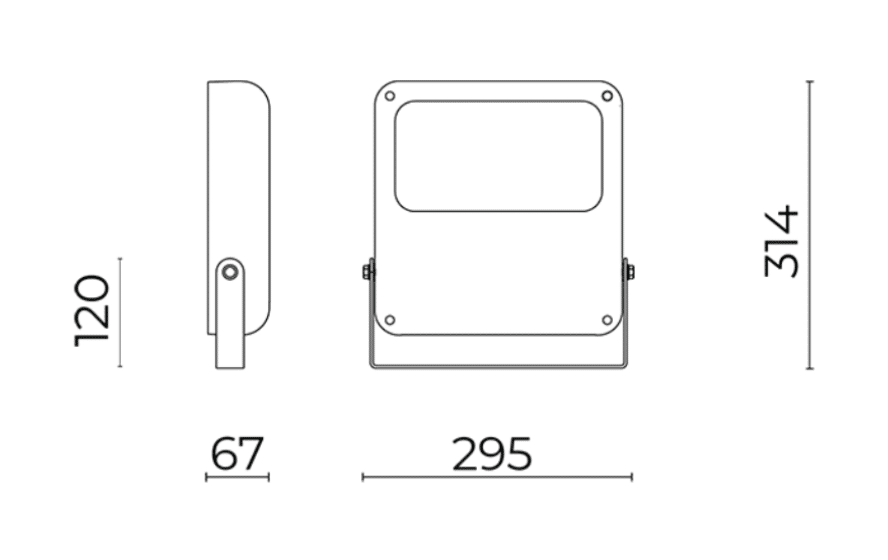

Dimensions

Technical Details

Lamp:	LED
Lamp Life:	50,000 hours
Wattage:	12W - 41W
Beam:	Asymmetric / Wide Street / Rotosymmetric
Protection type:	IP66
Protection Class:	Class II
Impact Resistance:	IK09
CRI	>70
Control:	Dali / 1-10V / motion sensor

Housing Specifications

Housing Material	Die-cast aluminium alloy UNI EN AB 47100
Finish	Phospho-chromatation treated and polyester powder-coated
Optics	Tempered anti-reflective glass
Dimensions	W295mm x H314mm
Weight	4KG
Mounting	Steel bracket

Light Output Details

Col Temp.	Wattage	Lumen Output
3000K	12W	1670lm
4000K	12W	1755lm
3000K	13W	1900lm
4000K	13W	2000lm
3000K	16W	2355lm
4000K	16W	2480lm
3000K	19W	2800lm
4000K	19W	2945lm
3000K	22W	3235lm
4000K	22W	3405lm
3000K	25W	3660lm
4000K	25W	3850lm
3000K	28W	4065lm
4000K	28W	4275lm
3000K	31W	4465lm
4000K	31W	4700lm
3000K	34W	4850lm
4000K	34W	5105lm
3000K	37W	5240lm
4000K	37W	5540lm
3000K	41W	5605lm
4000K	41W	5900lm
