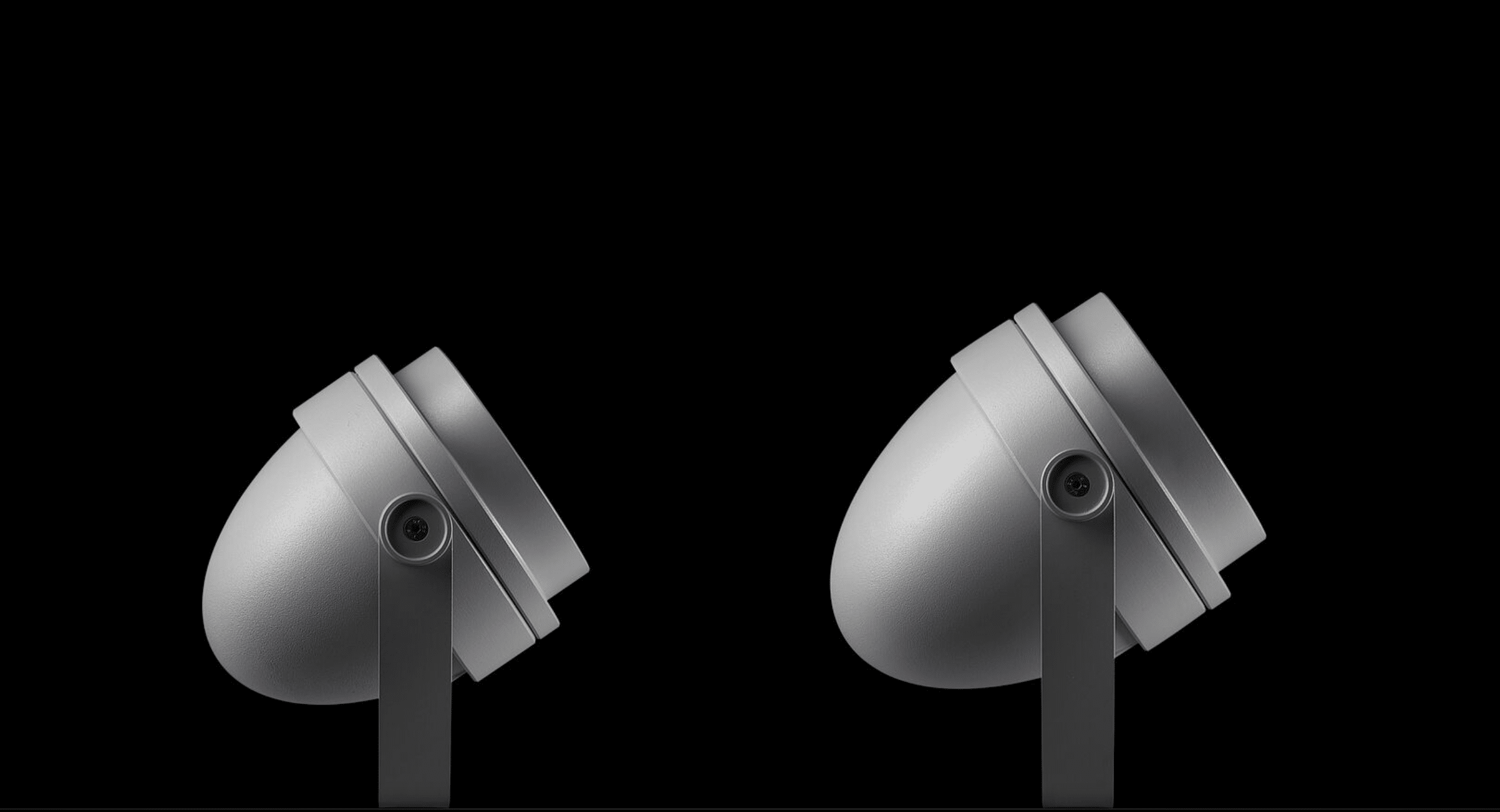

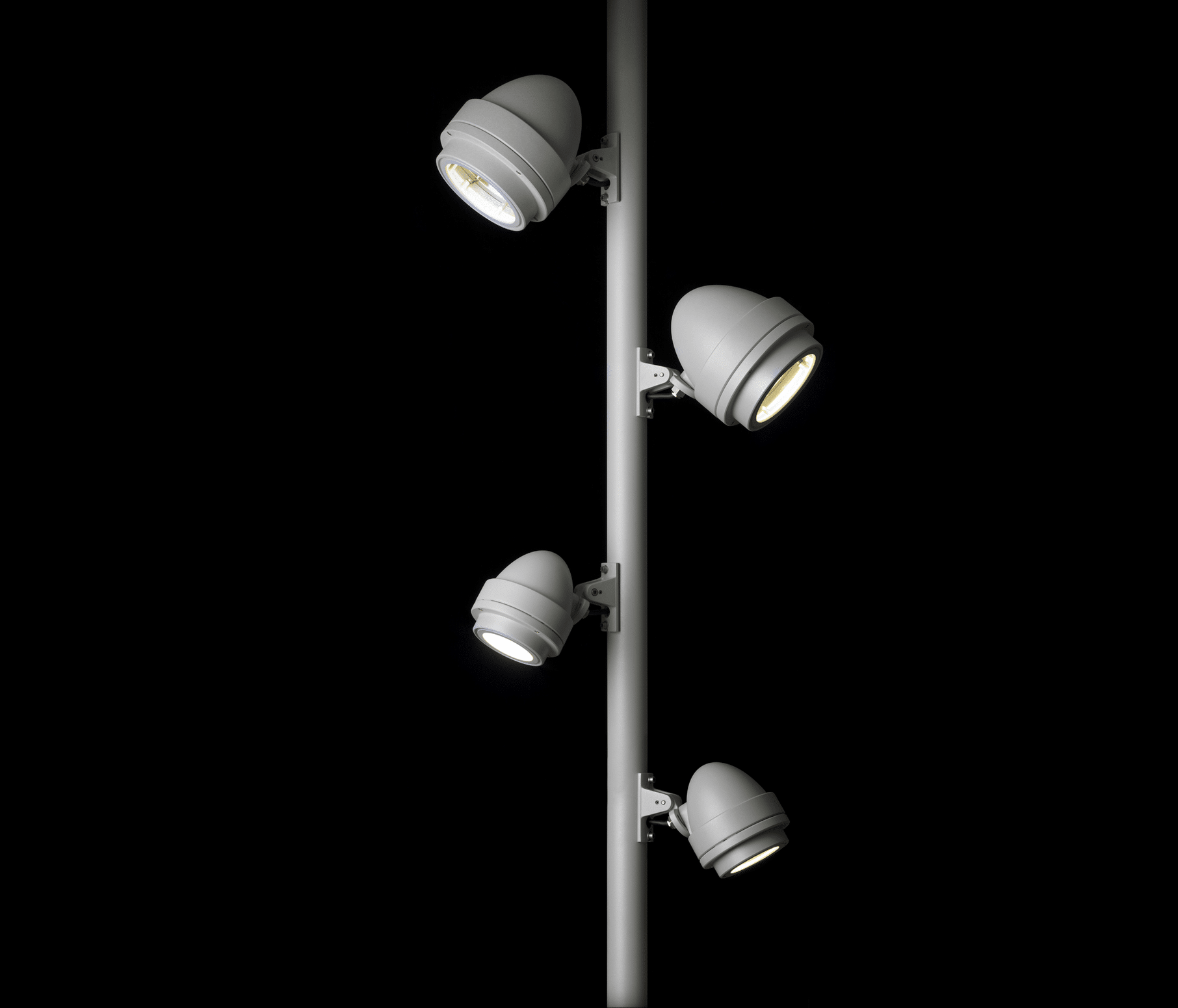

Nightspot A2 Pole
Pole Mounted Floodlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
with pole mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 7
Overview
Cat. No: M8983
Nightspot luminaires are characterised by their exemplary design and technical precision. Rotationally symmetrical optical systems are fitted with secondary reflectors in order to reduce glare. For street and pathway lighting there is an optical lense with batwing distribution. An RGBW version rounds off the range with a useful product for colour changing installations. A compact LED gobo projector allows sharp-edged image projections of highest quality.
Downloads
| Range Overview (PDF) | > |

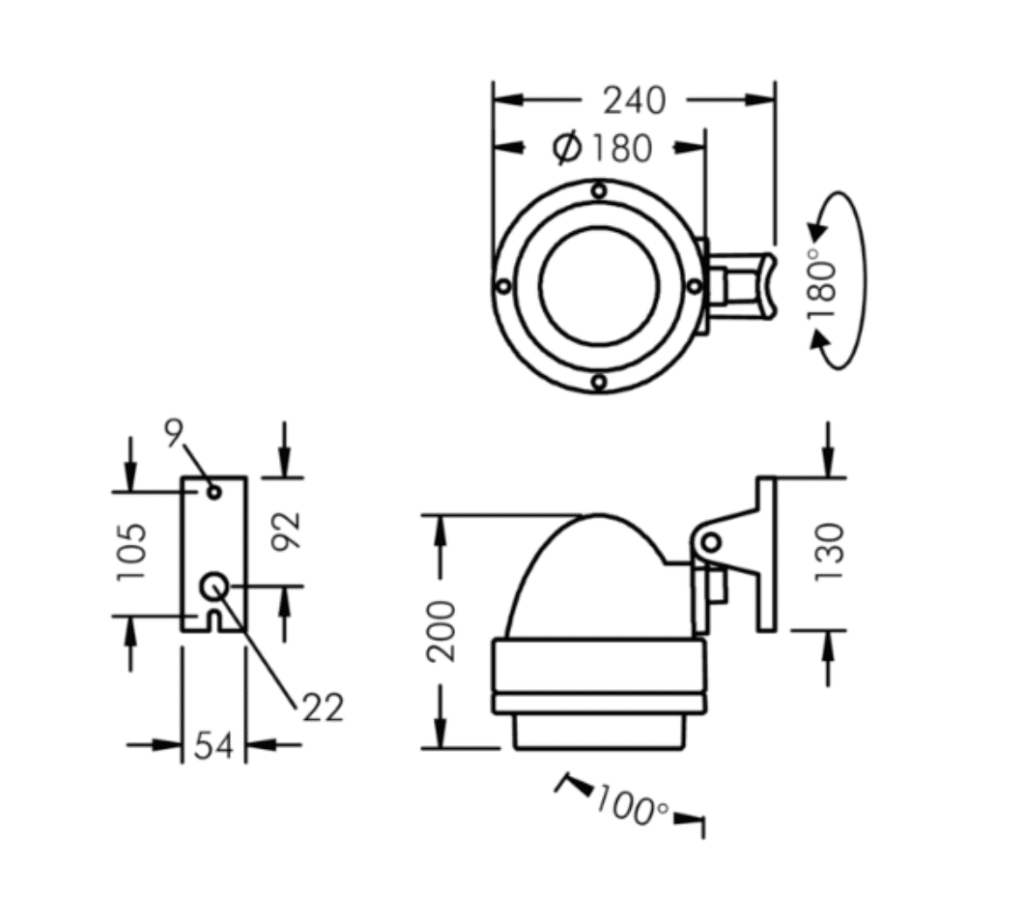

Dimensions
Technical Details
| Lamp: | LED |
| Power | 28W |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 135º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø180mm / W200mm |
| Weight | 2.9KG |
| Mounting | with pole mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 28W | 2308lm |
| Narrow | 4000K | 28W | 2492lm |
| Medium Wide | 3000K | 28W | 2277lm |
| Medium Wide | 4000K | 28W | 2459lm |
| Wide | 3000K | 28W | 2066lm |
| Wide | 4000K | 28W | 2231lm |
| Linear vertical | 3000K | 28W | 1974lm |
| Linear vertical | 4000K | 28W | 2132lm |
