Meyer
Nightspot B Gobo
Projector
Light Source
LED
Colour Temperature
3000K / 6500K
Mounting
mounting bracket / pole mounted
Application
Exterior projection
Housing
Die-cast aluminium
1 / 2
Overview
Cat. No: M8987
Nightspot gobo projectors are designed to project sharp images and logos. The optical system can accommodate gobos (metal or glass) and colour filters simultaneously. With the help of a framer, the edges of the image can be defined and adapted to the size of the projection surface.
Downloads
| Range Overview (PDF) | > |

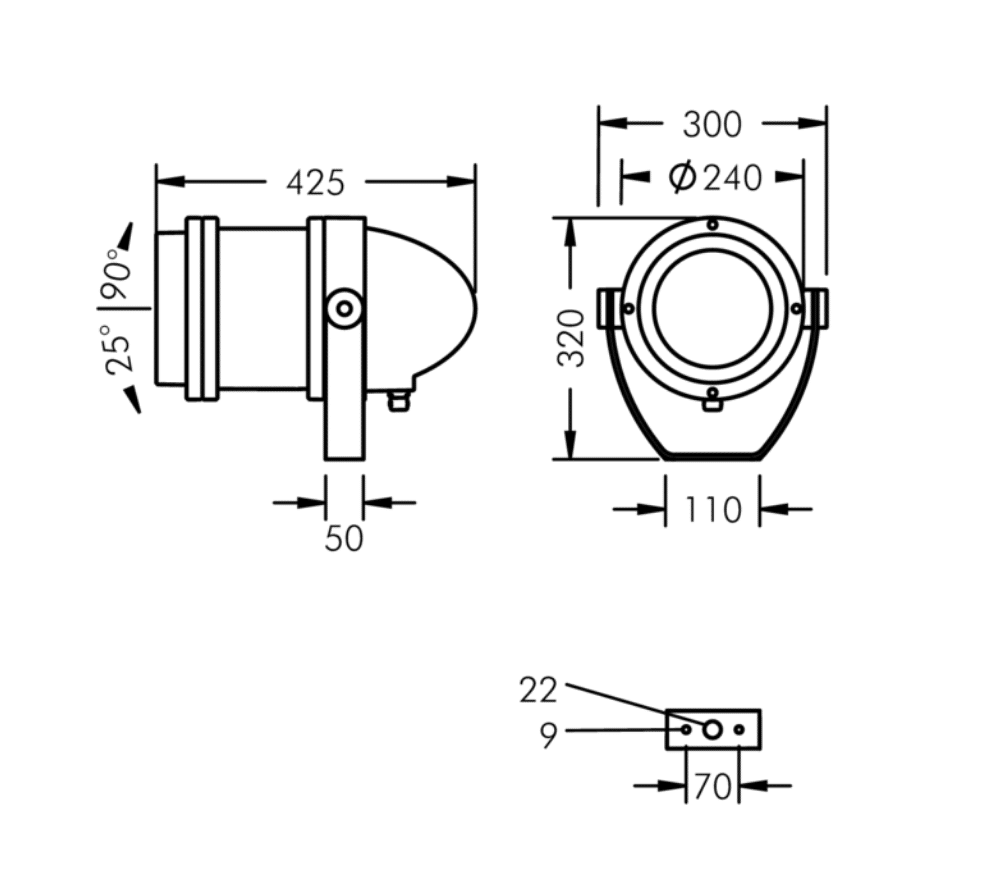

Dimensions
Technical Details
| Lamp: | LED |
| Power | 54W |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 135º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø240mm / W425mm |
| Weight | 8.1KG |
| Mounting | mounting bracket / pole mounted |
Light Output Details
| Light Distribution |
Col Temp. | Wattage | Lumen Output |
| 150mm focal length 14º | 3000K | 55W | 1544lm |
| 150mm focal length 14º | 6500K | 55W | 1795lm |
| 85mm focal length 22º | 3000K | 55W | 1445lm |
| 85mm focal length 22º | 6500K | 55W | 1680lm |
| 63mm focal length 29º | 3000K | 55W | 1066lm |
| 63mm focal length 29º | 6500K | 55W | 1240lm |
| 45mm focal length 41º | 3000K | 55W | 1483lm |
| 45mm focal length 41º | 6500K | 55W | 1724lm |
