Meyer

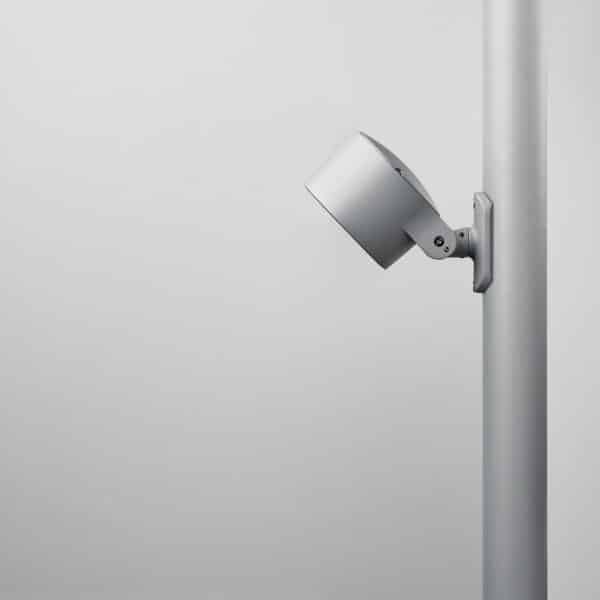

Monospot S3 Pole

Pole Mounted Floodlight

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

with pole mounting bracket

Application

Exterior floodlighting

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. IP67 - provides protection against immersion up to 1m Ingress Protection - IK08 Product is certified according to European standards

Overview

Cat. No: M8993

Monospot S is a floodlight series with exemplary design and compact dimensions. With precise optics they are used for accent lighting on façades or to illuminate objects from a long distance. The floodlights are available in 4 different sizes and wattages. There is a choice of different optics – collimators, wide beam reflectors or an optic for uniform illumination of streets and pathways. Monospot S pole luminaires are available with a tilt-and-turn fixing system. The combination of floodlights with different optics makes creative lighting scenarios possible.

Downloads


Range Overview (PDF) >

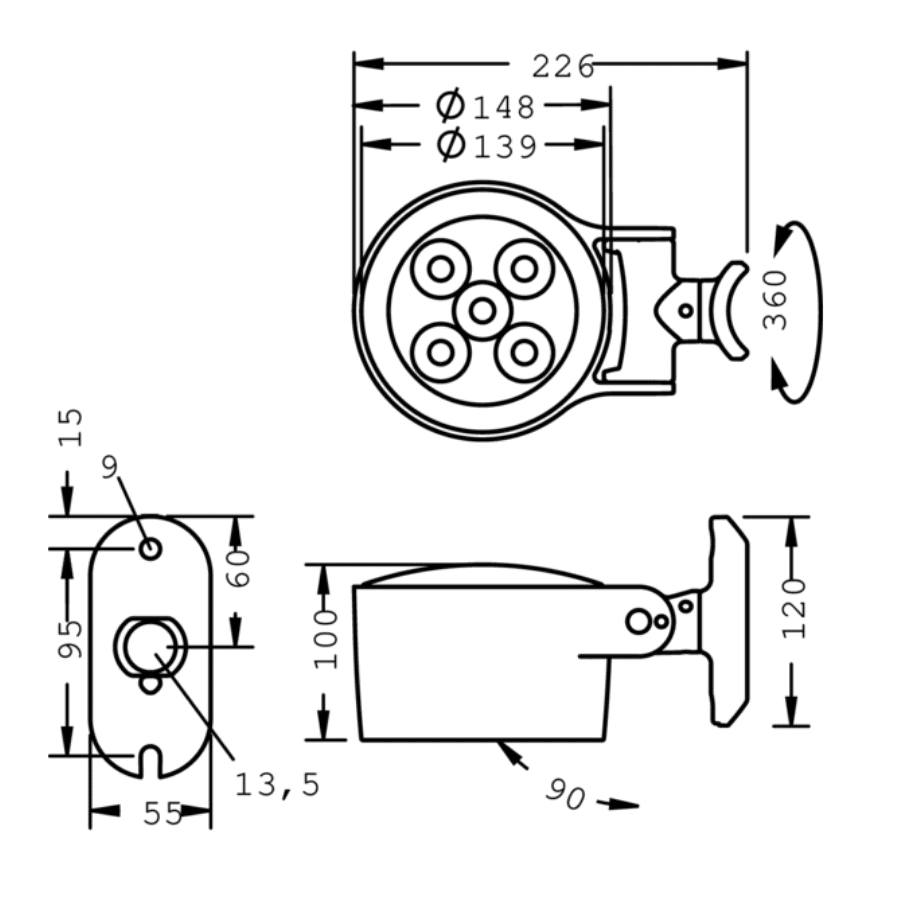

Dimensions


Technical Details


Housing Specifications


Light Output Details










Beam Col Temp. Wattage Lumen Output
Narrow 3000K 26W 1791lm
Narrow 4000K 26W 1881lm
Medium Wide 3000K 26W 1592lm
Medium Wide 4000K 26W 1641lm
Wide 3000K 28W 2322lm
Wide 4000K 28W 2438m
Linear, vertical / horizontal / Asymmetrical 3000K 26W 1744lm
Linear, vertical / horizontal / Asymmetrical 4000K 26W 1817lm
Street Optic 3000K 26W 2418lm
Street Optic 4000K 26W 2539lm
