Prismatic High-bay

Suspended LED High-bay

Cat. No: S18332

A high performance decorative high-bay, incorporating a polycarbonate prismatic shade with spun metal gear housing and suspension chain. Utilising high performance CREE COB LED with the latest passive heatsink technology. The Prismatic Pendant provides an aesthetic contrast between shade and gear housing.

All versions are fitted with an integral high efficiency driver as standard, with dimmable and EM versions also available. Supplied c/w 2mtr suspension chain system. Standard finish (gear housing) is silver, with other colours also available.

TECHNICAL INFORMATION

Range Name:Sovereign Prismatic Highbay
Range No.S18332
Application:Interior Ceiling
Lamp:CREE COB
Lamp life:50,000 hours
CRI:Ra>80
Voltage:240V
Class:Class 1
Driver:High-efficiency
IP Rating:IP20
Housing material:Extruded Aluminium Housing
Diffuser:Acrylic Prismatic
Material finish:Powder Coated
Weight:3.5Kg
LED Warranty:5 years

DOWNLOADS

  • OVERVIEW (PDF)
  • TECHNICAL DRAWING (JPG)

LIGHT OUTPUT DETAILS

Col. TempWattageLumen OutputLED efficacy
3000K20W2000lm100lm/W
4000K20W2200lm110lm/W
3000K40W4000lm100lm/W
4000K40W4400lm110lm/W

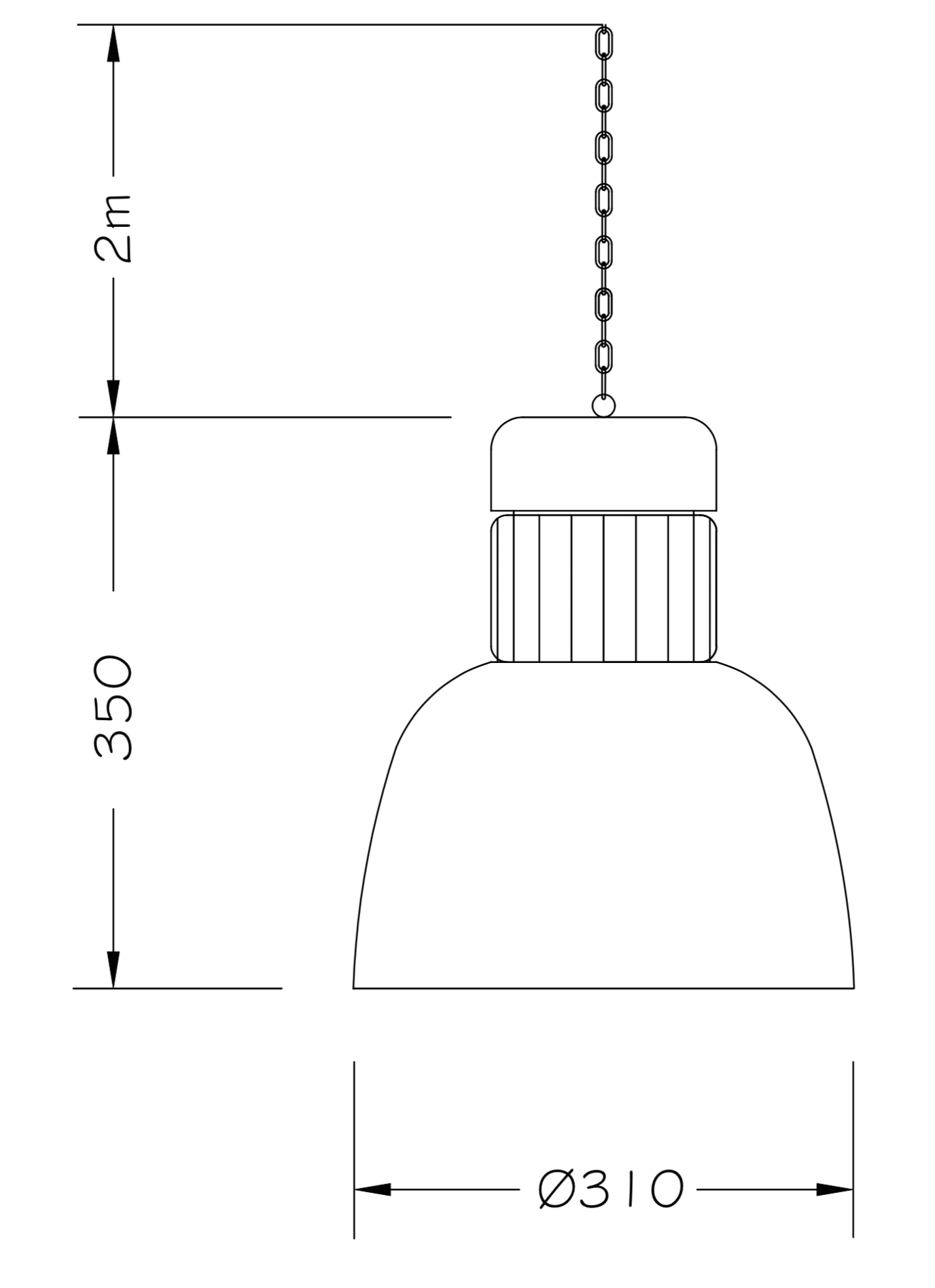

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Housing Colour:Textured Silver / Black / White / other BS/RAL
Col. Temp:Warm White (3000K) / Neutral White (4000K)
Wattage:20W / 40W
Mounting:Ceiling mounting plate / other options
Wire Suspension2mtr as standard / other lengths available
DriverEmergency / Non-Emergency
Power SupplyNon-Dimming / Dimmable options

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Housing Colour

Temp & Output

Emergency

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
